Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

19 part groups · 5 illustrations

Illustrations

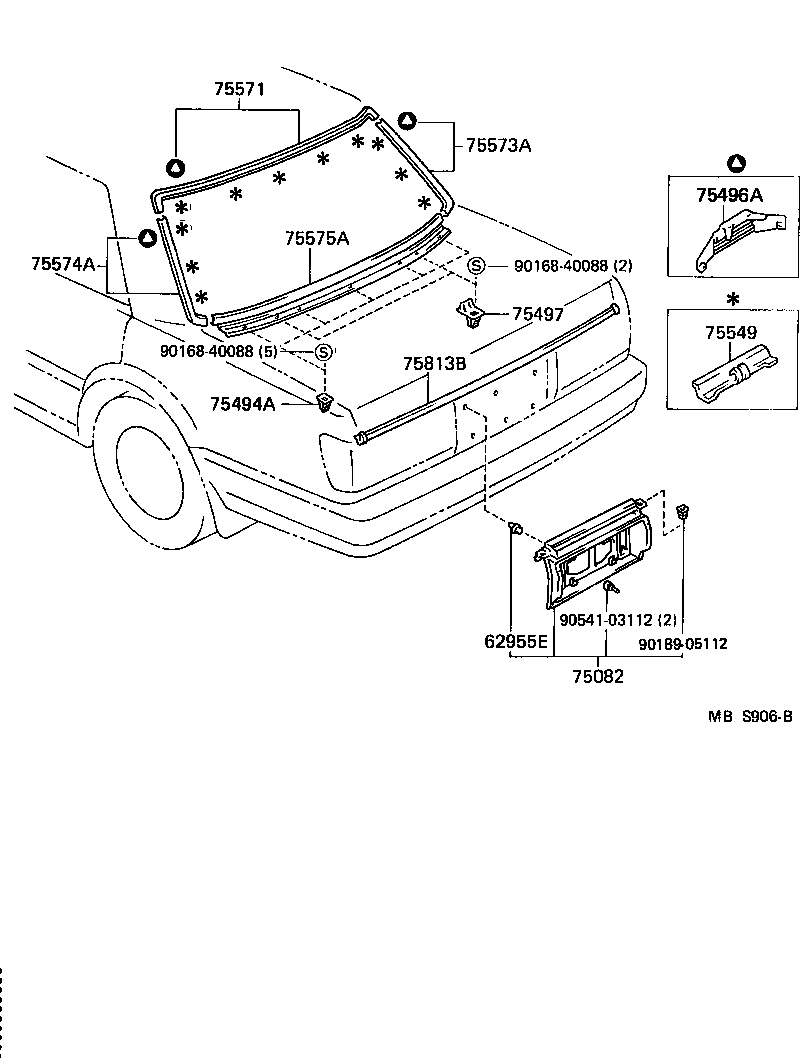

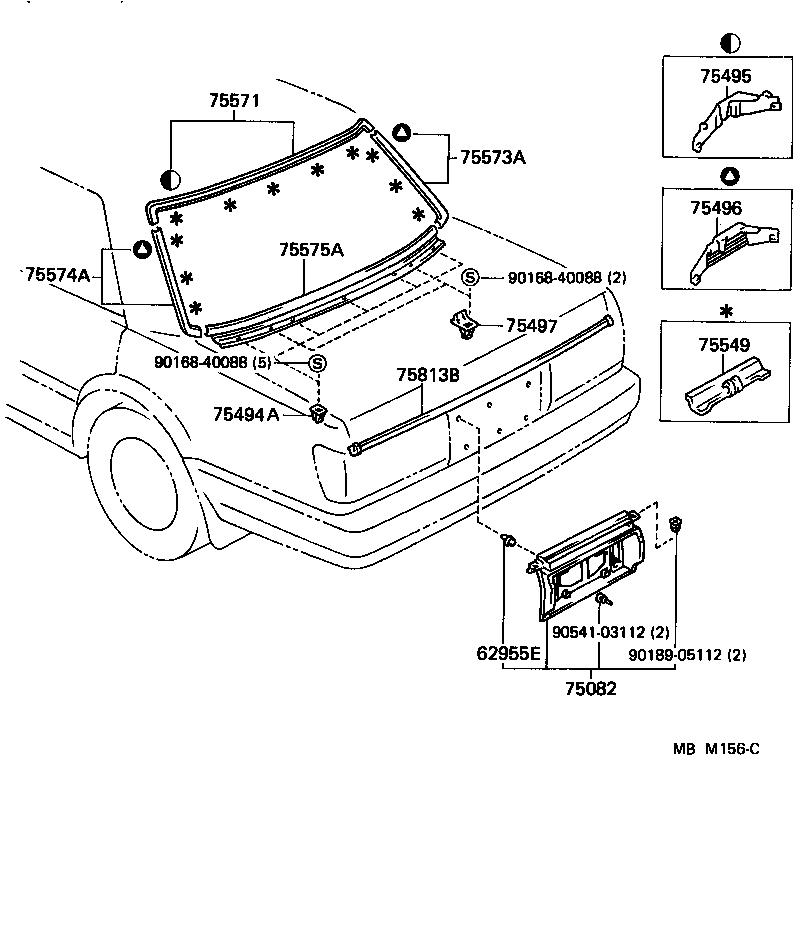

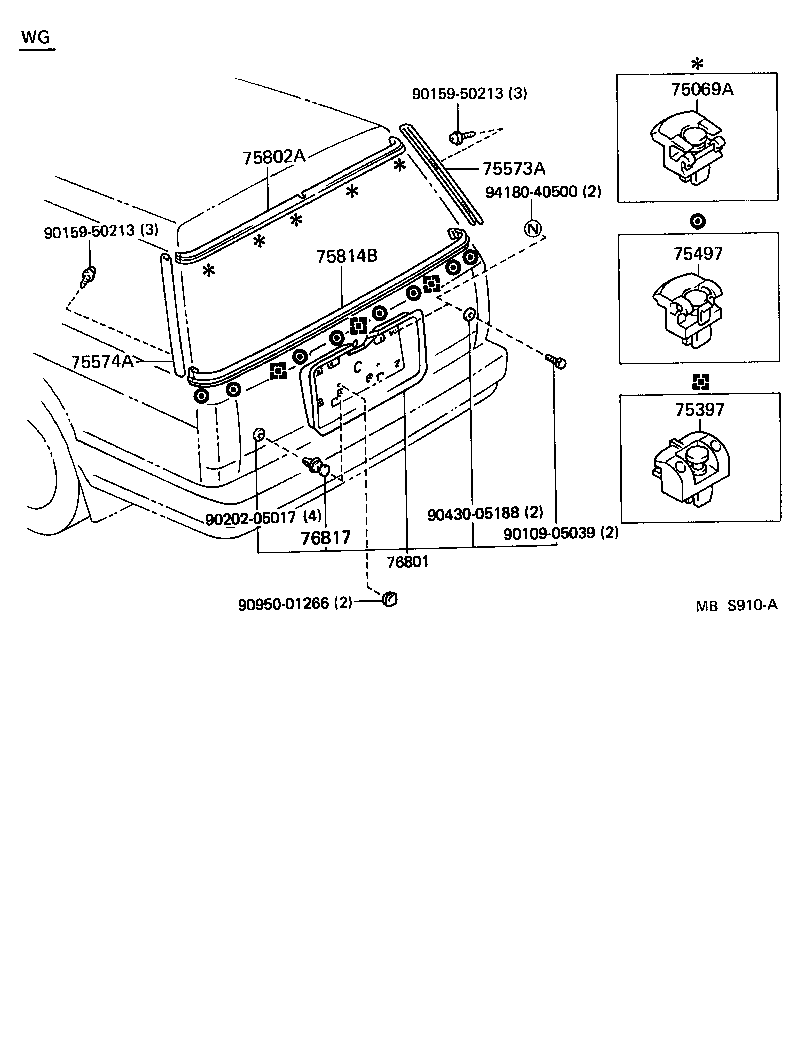

Figure MBS905B MBS905B 1987-09 → — Figure MBM156C MBM156C 1987-09 → 1989-08 Figure MBS906B MBS906B 1989-08 → — Figure MBM158A MBM158A 1987-09 → 1989-08 Figure MBS910A MBS910A 1989-08 → —

Part groups

PNCDescription
62955E Retainer, Lower Back Finish Panel
75069A Clip Sub-assy, Outside Moulding, NO.4
75082 Panel Sub-assy, Lower Back Finish, Center
75397 Clip, Back Door Moulding, NO.3
75494A Clip, Outside Moulding, NO.3
75495 Clip, Outside Moulding, NO.4
75496 Clip, Back Window Outside Moulding, NO.1
75496A Clip, Back Window Outside Moulding, NO.1
75497 Clip, Back Window Outside Moulding, NO.2
75549 Fastener, Back Window Outside Moulding, NO.2
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75802A Moulding Sub-assy, Back Door, Outside Upper
75813B Moulding, Luggage Compartment Door
75814B Moulding, Back Door, Outside Lower
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
