Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

10 part groups · 2 illustrations

Illustrations

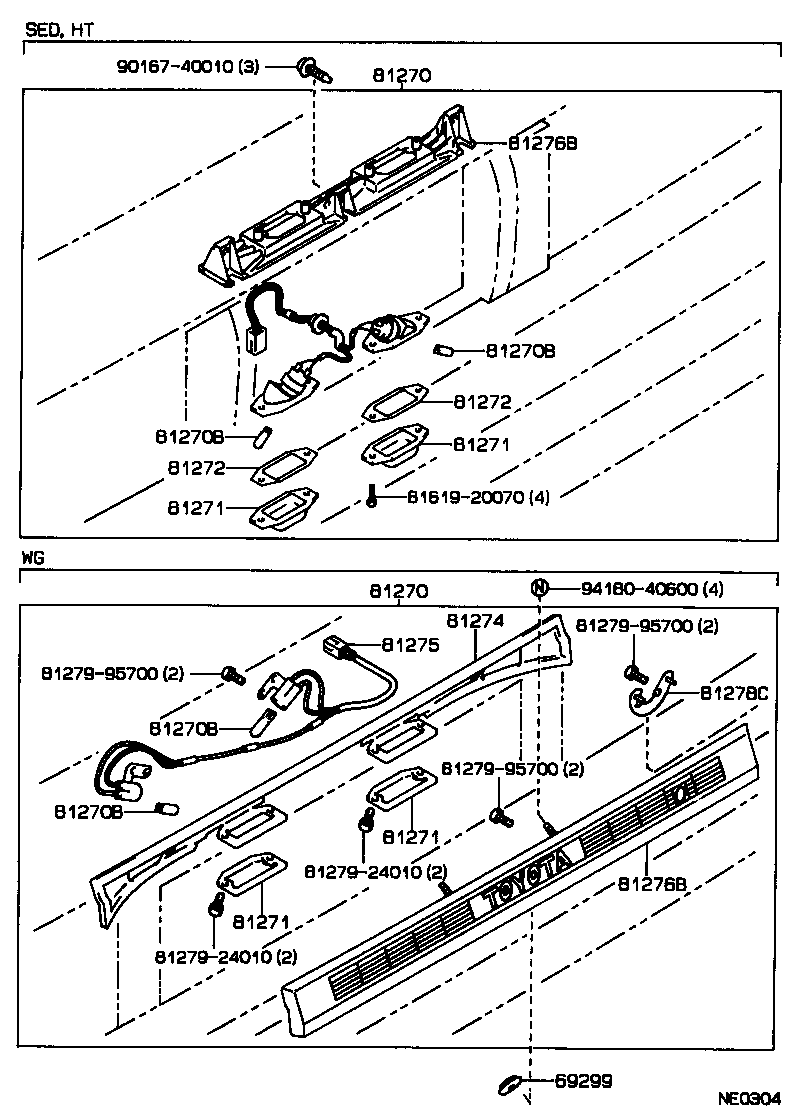

Figure NE0303A NE0303A 1987-09 → — Figure NE0304 NE0304 1987-09 → —

Part groups

PNCDescription
69299 Grommet, Back Door Handle
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81275 Socket And Wire, License Plate Lamp
81276B Cover, License Plate Lamp
81277F Shade, License Plate Lamp
81278C Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
