Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 3 illustrations

Illustrations

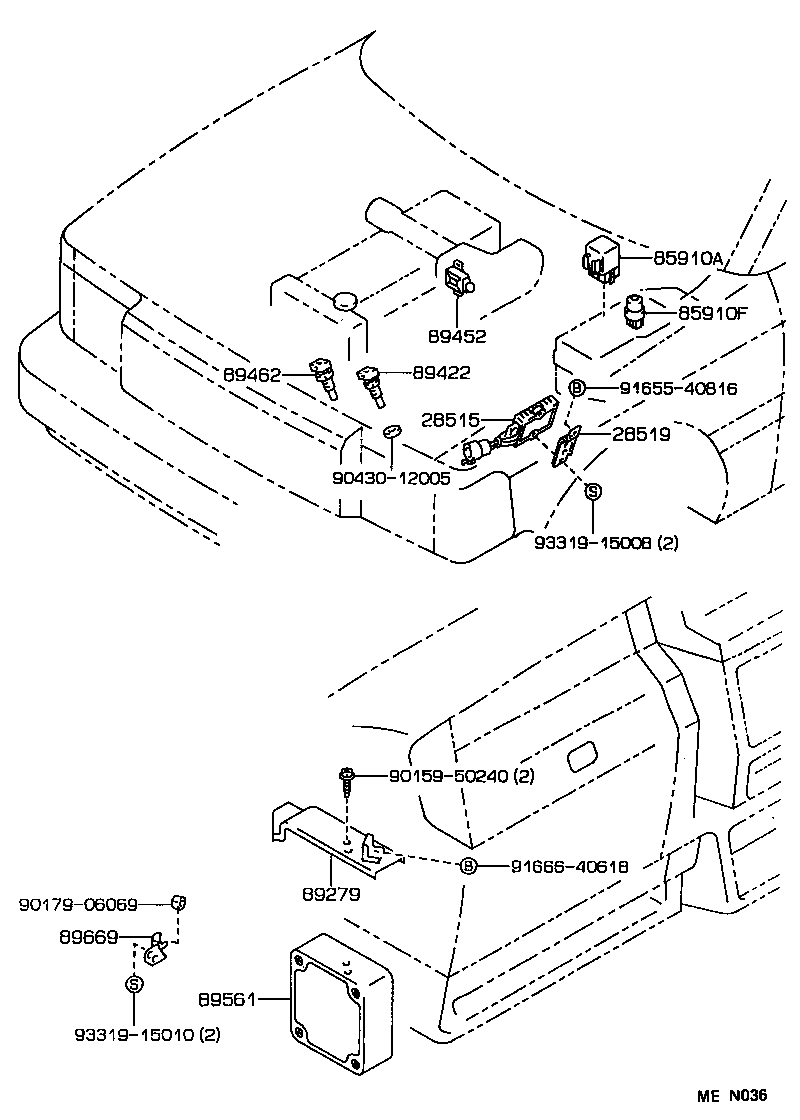

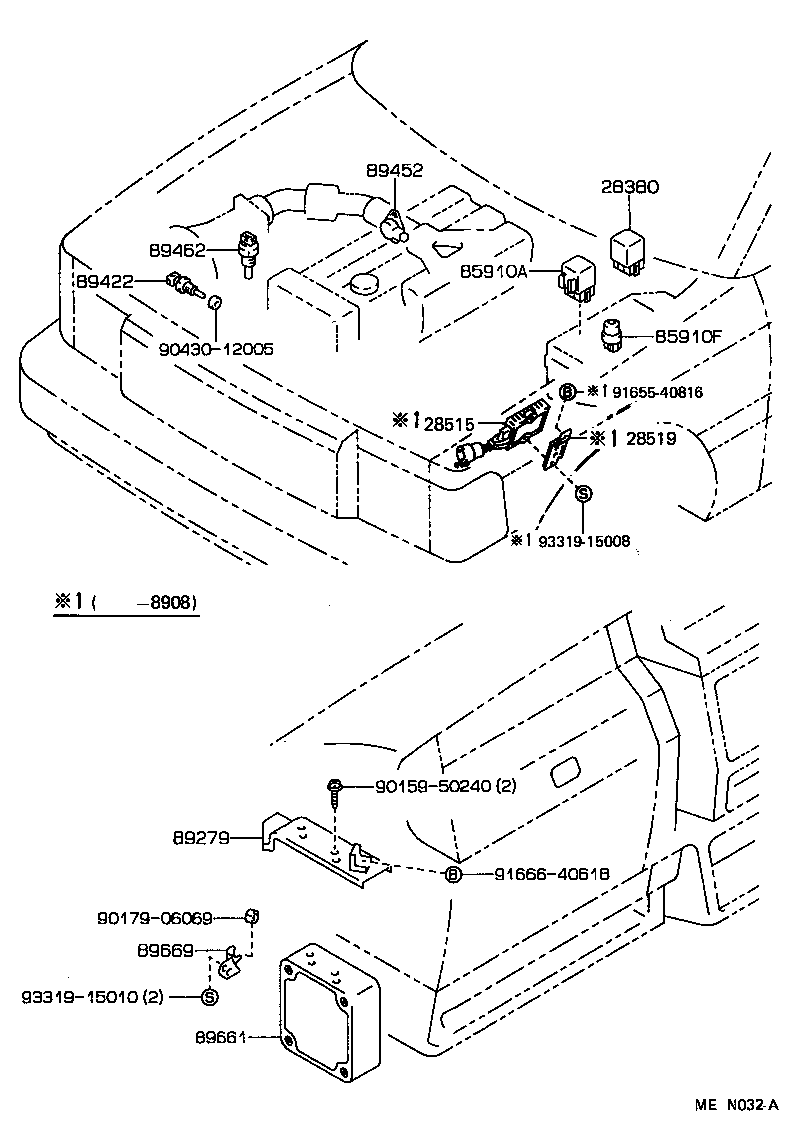

Figure MEM380A MEM380A 1988-12 → — Figure MEN036 MEN036 1987-09 → — Figure MEN032A MEN032A 1987-09 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
28515 Resistor, Solenoid
28519 Bracket, Solenoid Resistor
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89279 Cover, Engine Control Computer
89422 Sensor, Water Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89561 Computer, Fuel Injection
89661 Computer, Engine Control
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
