Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

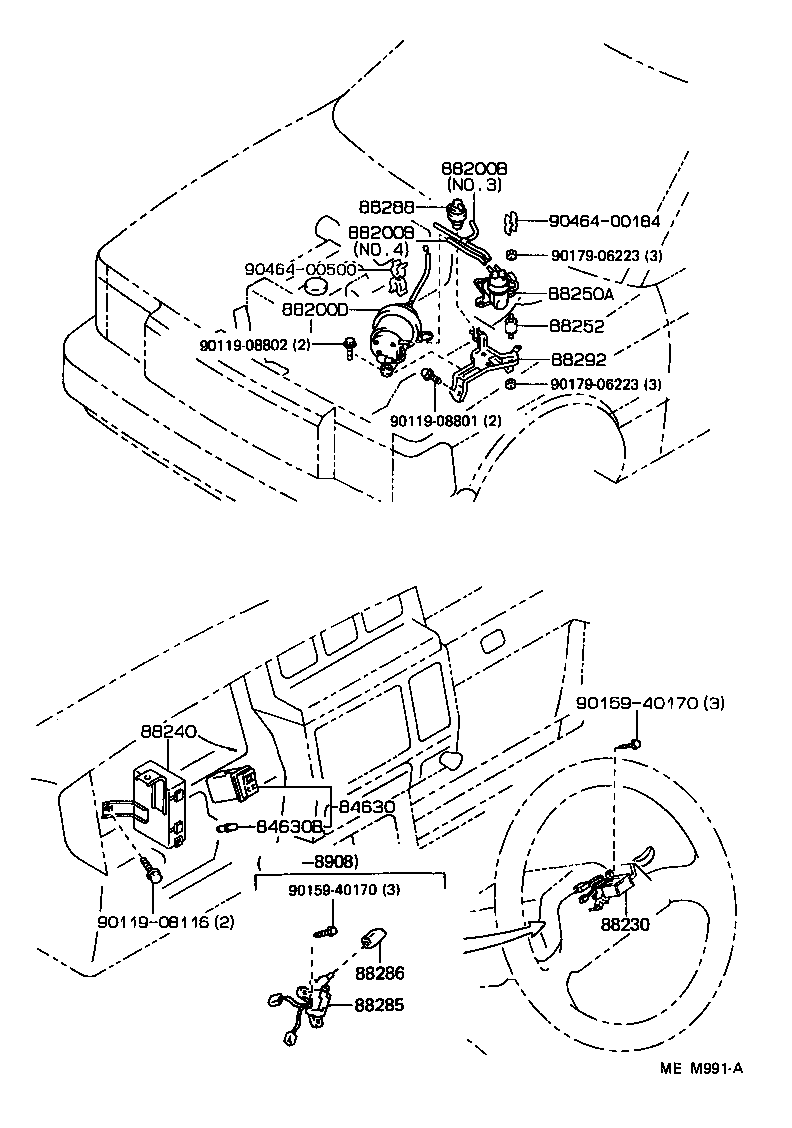

Cruise Control (AUTO DRIVE)
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84630 | Switch Assy, Cruise Control Main |
| 84630B | Bulb(FOR CRUISE CONTROL SWITCH) |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88230 | Switch Assy, Cruise Control(AUTO DRIVE) Control |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88252 | Cushion, Vacuum Pump |
| 88285 | Switch, Cruise Control |
| 88286 | Knob, Speed Control Switch |
| 88288 | Switch, Vacuum Speed Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
| 88292 | Bracket, Cruise Control(AUTO DRIVE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
