Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

12 part groups · 2 illustrations

Illustrations

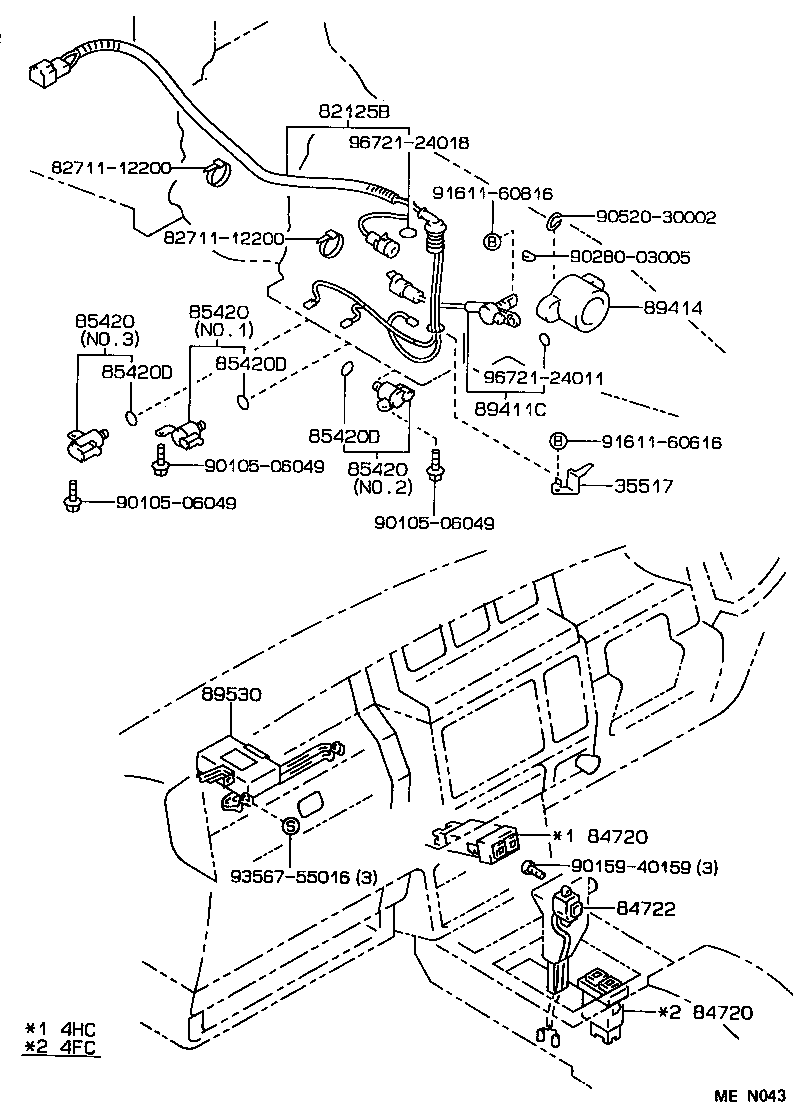

Figure MEN042 MEN042 1987-09 → — Figure MEN043 MEN043 1987-09 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84220A Switch Assy, Transmission Position Indicator
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89530 Computer Assy, Transmission Control
89530A Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
