Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 5 illustrations

Illustrations

Figure NEN089

NEN089 1987-09 → —

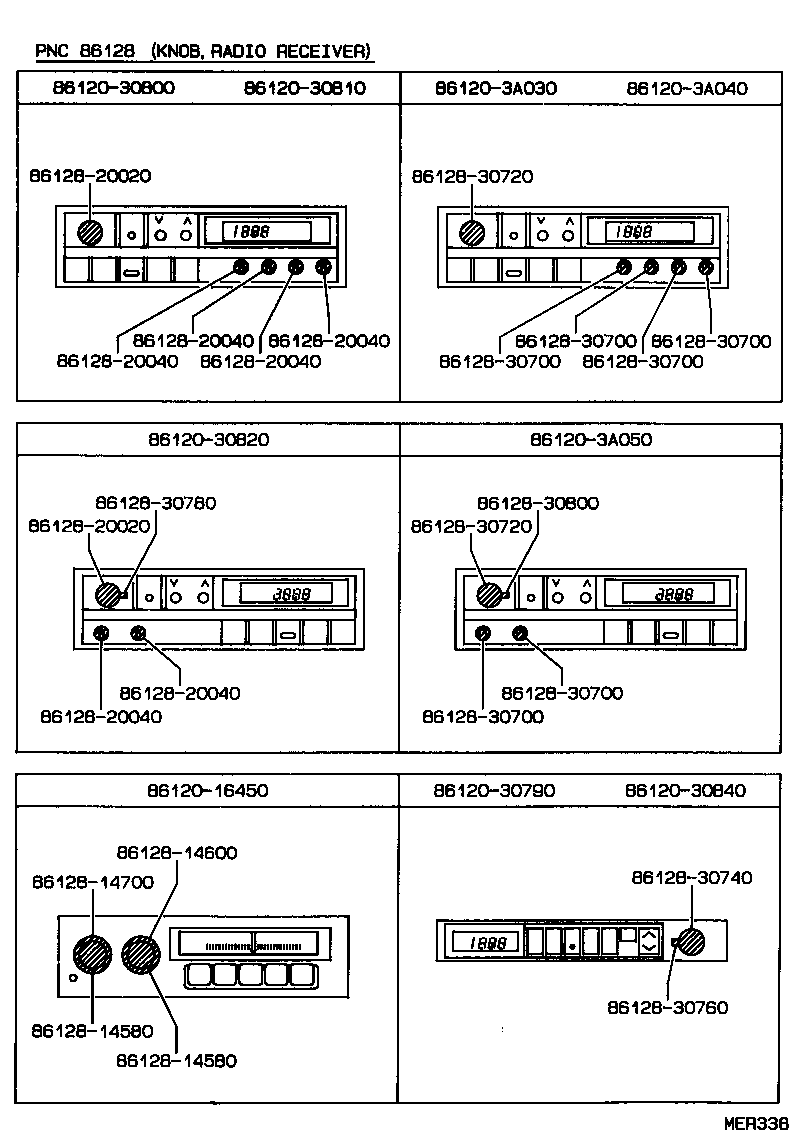

Figure MER338

MER338 1987-09 → —

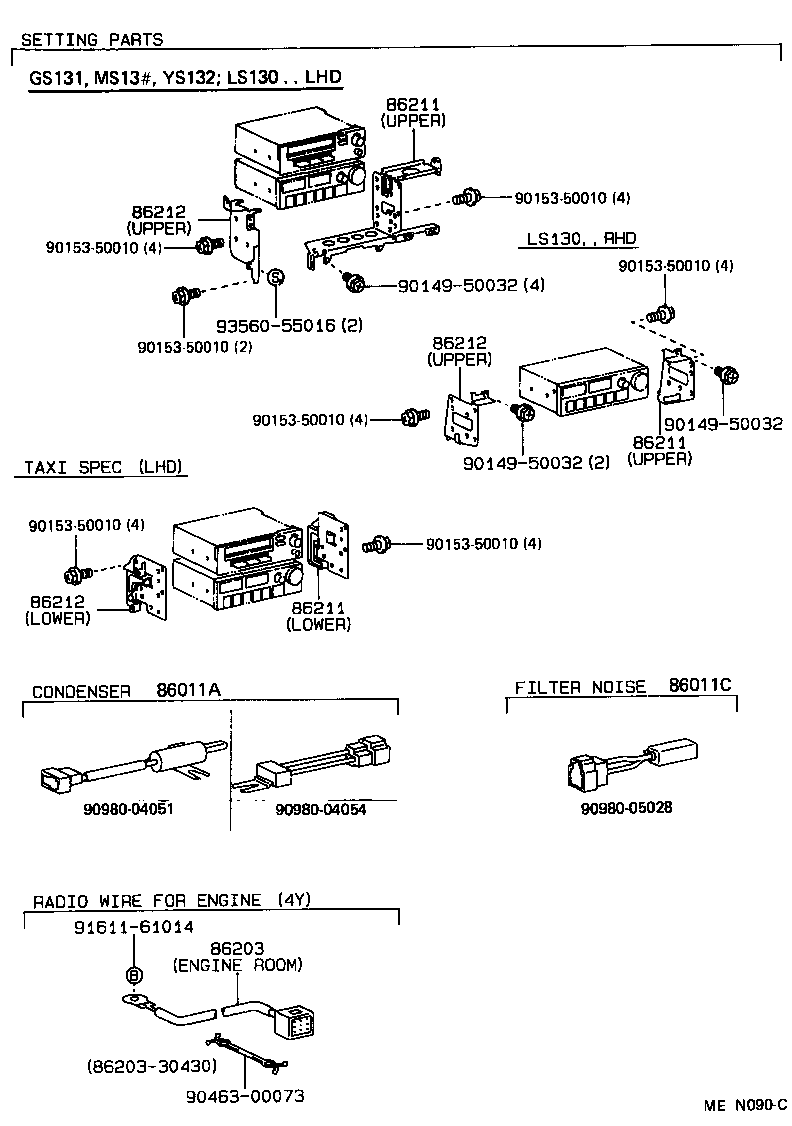

Figure MEN090C

MEN090C 1987-09 → —

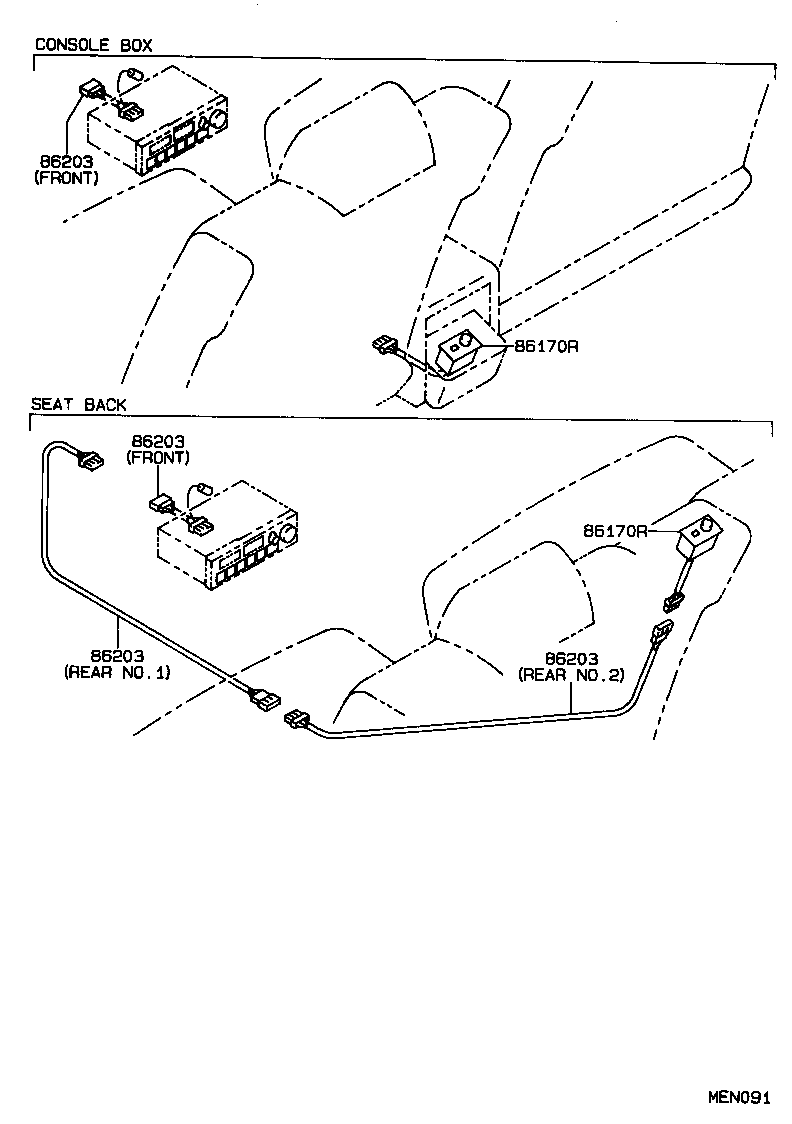

Figure MEN091

MEN091 1987-09 → —

Figure MEN091

MEN091 1989-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86120	Receiver Assy, Radio
86128	Knob, Radio Receiver
86170R	Switch & Volume Assy, RR
86203	Wire, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86260	Tape Player Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
