Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 8 illustrations

Illustrations

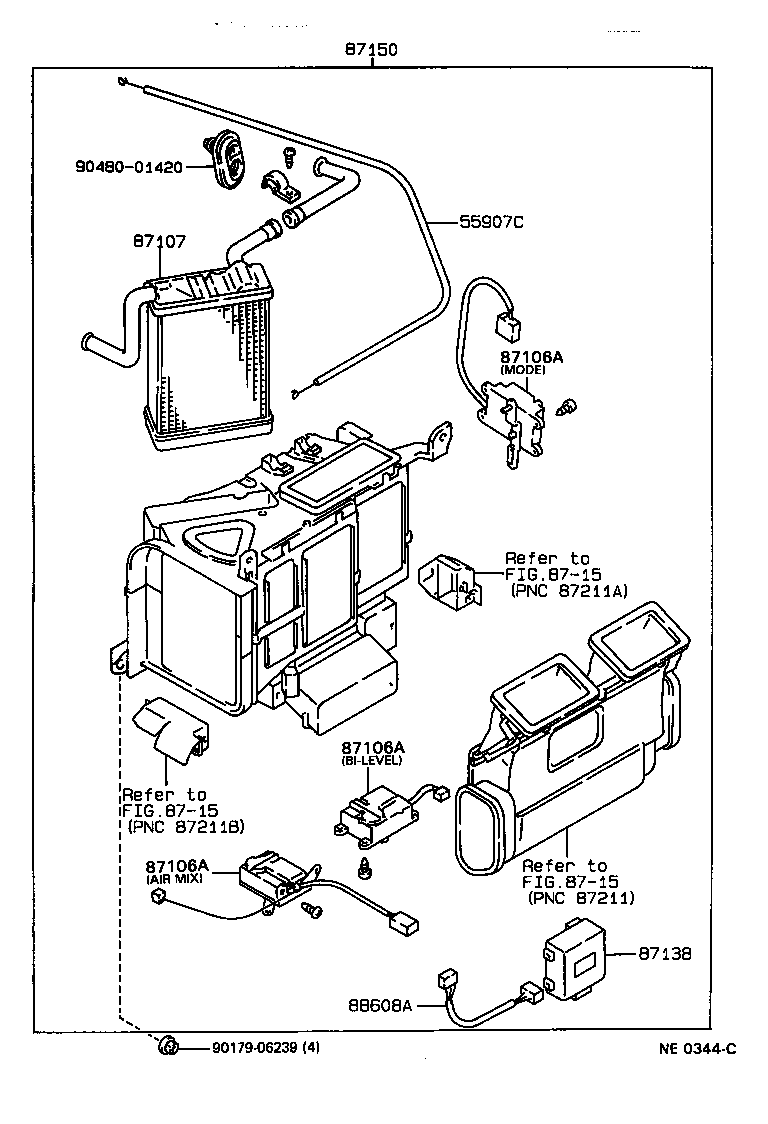

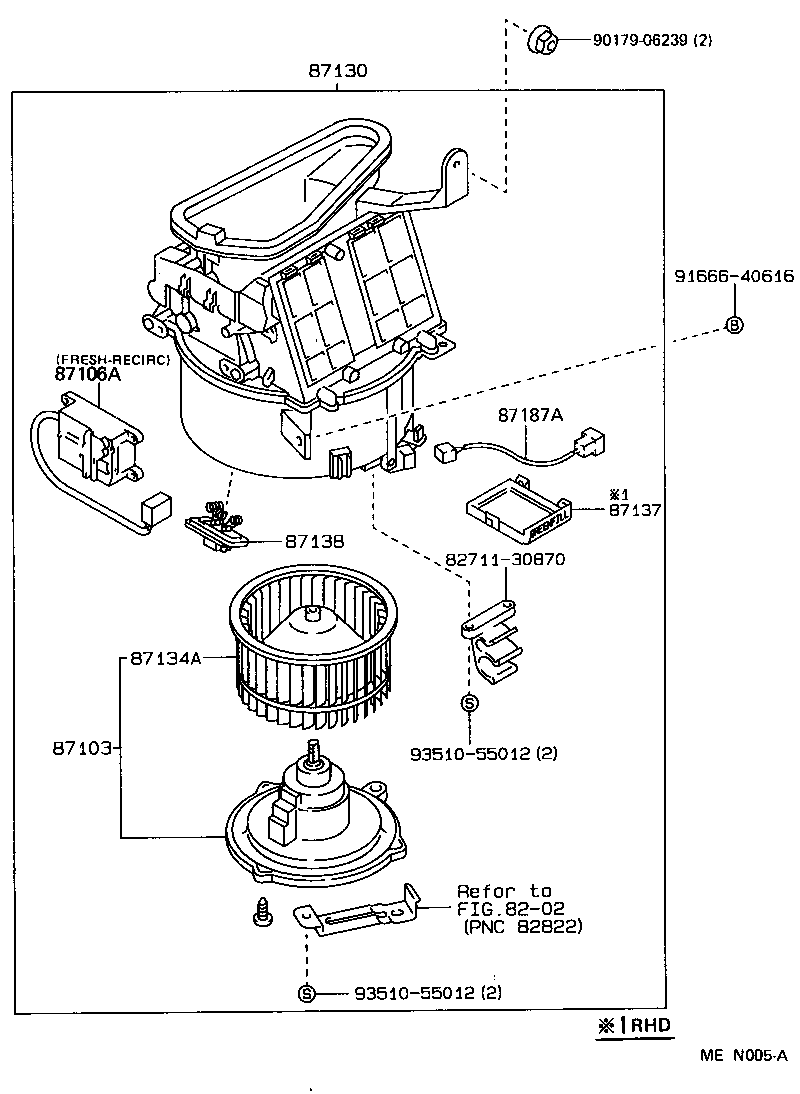

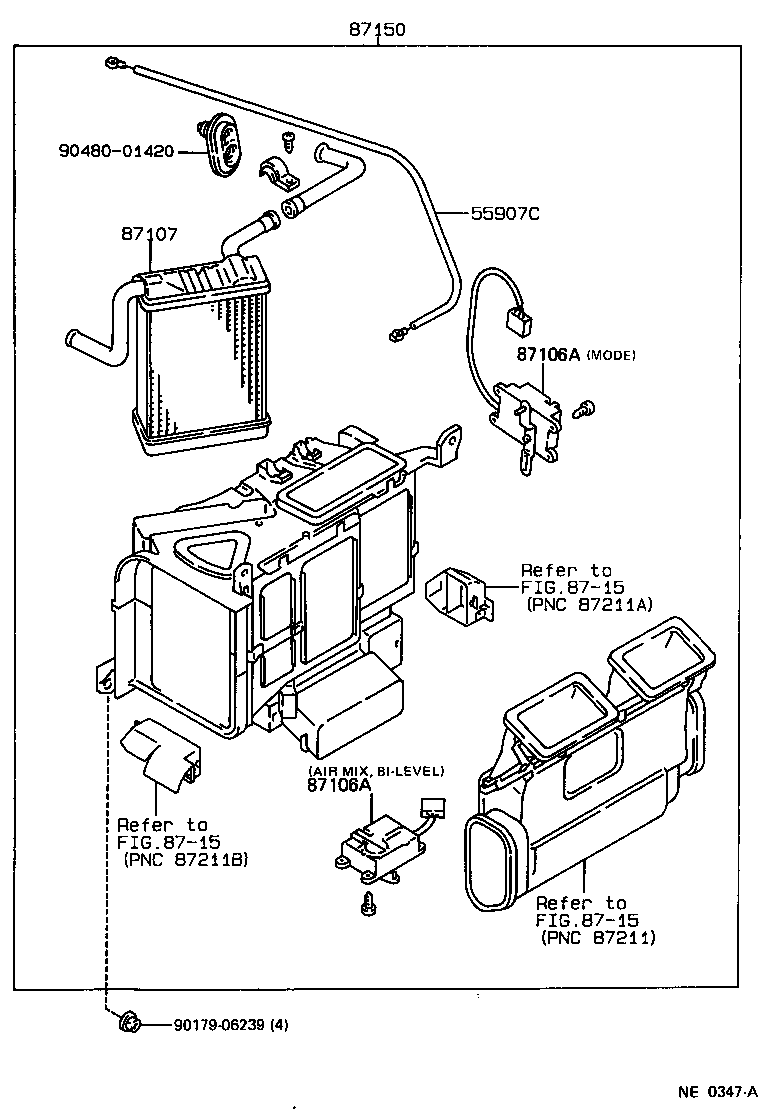

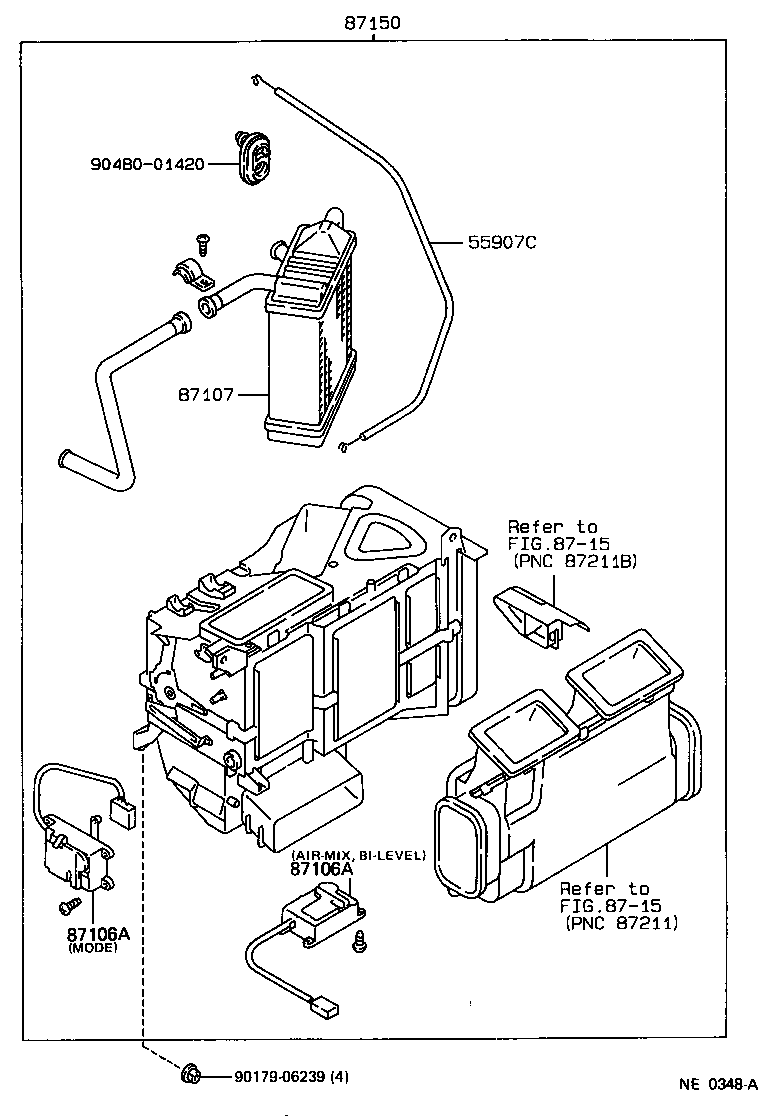

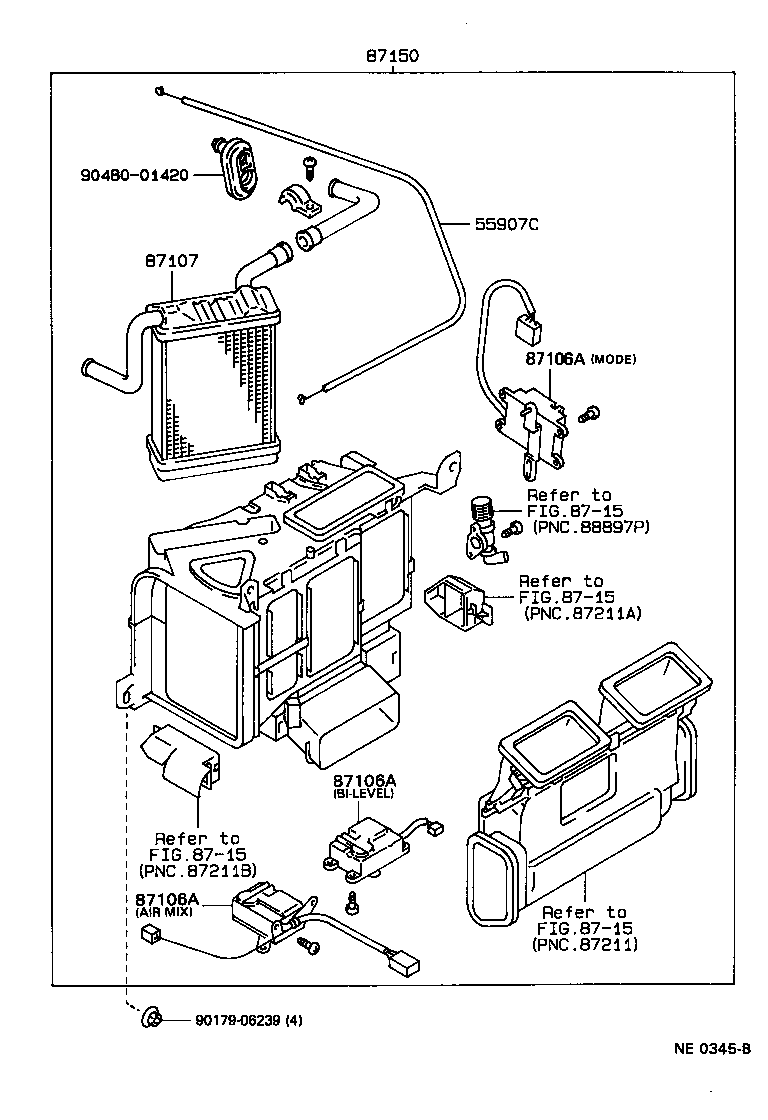

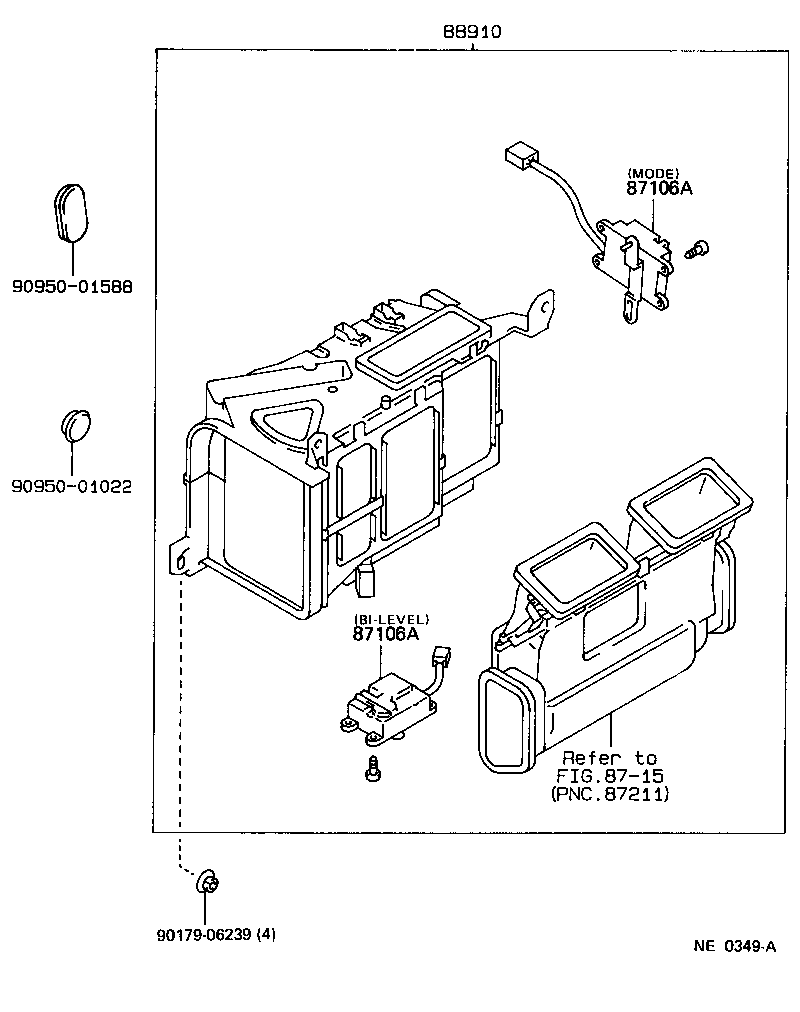

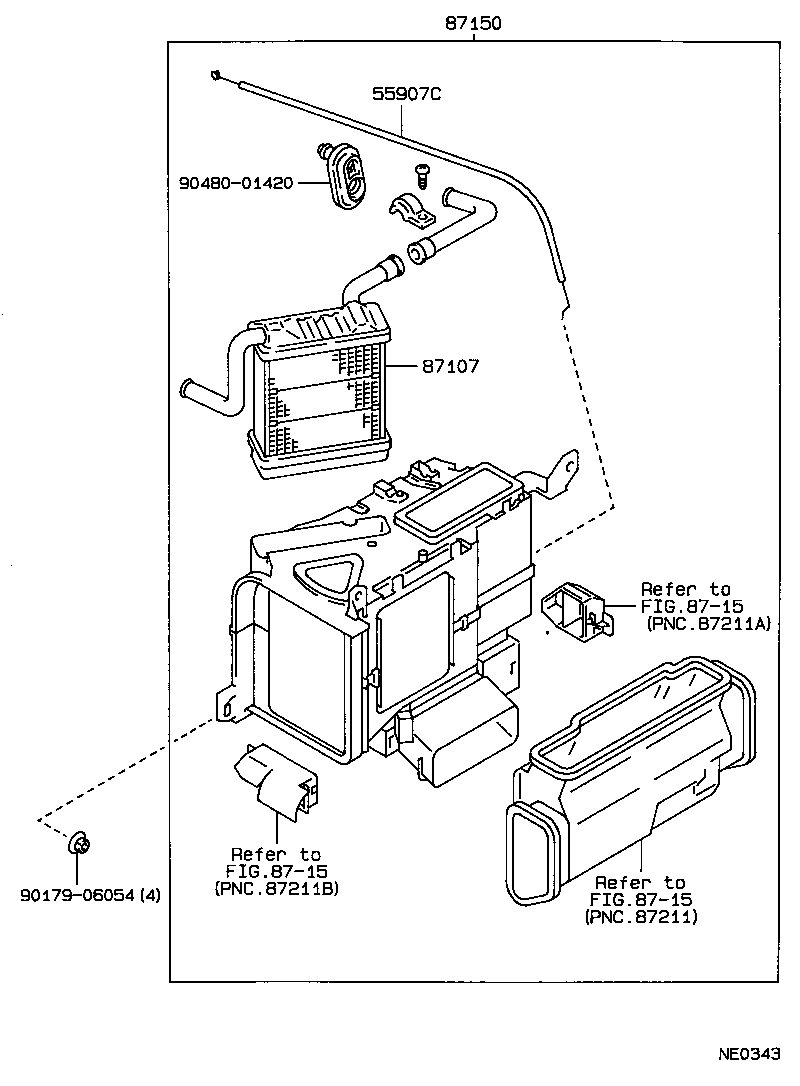

Figure NE0340B NE0340B 1987-09 → — Figure MEN005A MEN005A 1987-09 → — Figure NE0344C NE0344C 1988-12 → — Figure NE0347A NE0347A 1987-09 → — Figure NE0343 NE0343 1987-09 → — Figure NE0348A NE0348A 1987-09 → — Figure NE0345B NE0345B 1987-09 → — Figure NE0349A NE0349A 1987-09 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87134A Fan, Blower, NO.2
87137 Cover, Heater Blower
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87187A Wire, Blower Motor Lead
87441A Filter, Heater Air
88608A Harness Sub-assy, Wiring Air Conditioner, NO.2
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
