Heating & Air Conditioning - Cooler Unit

29 part groups · 6 illustrations

Illustrations

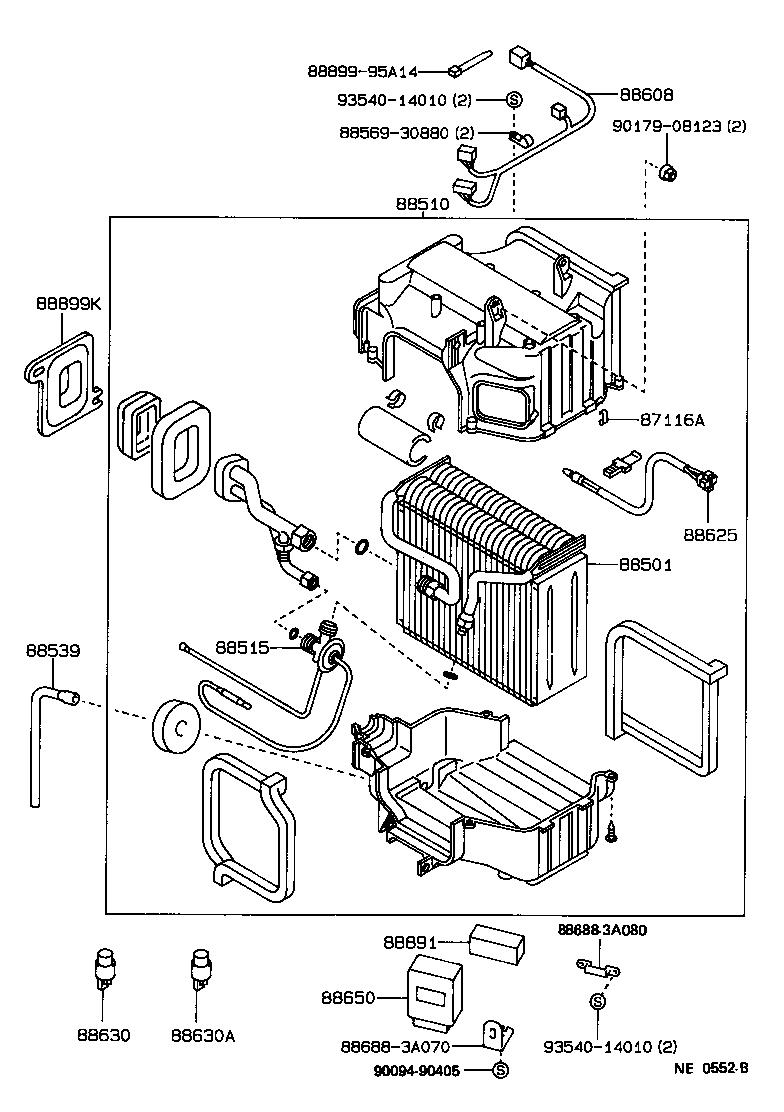

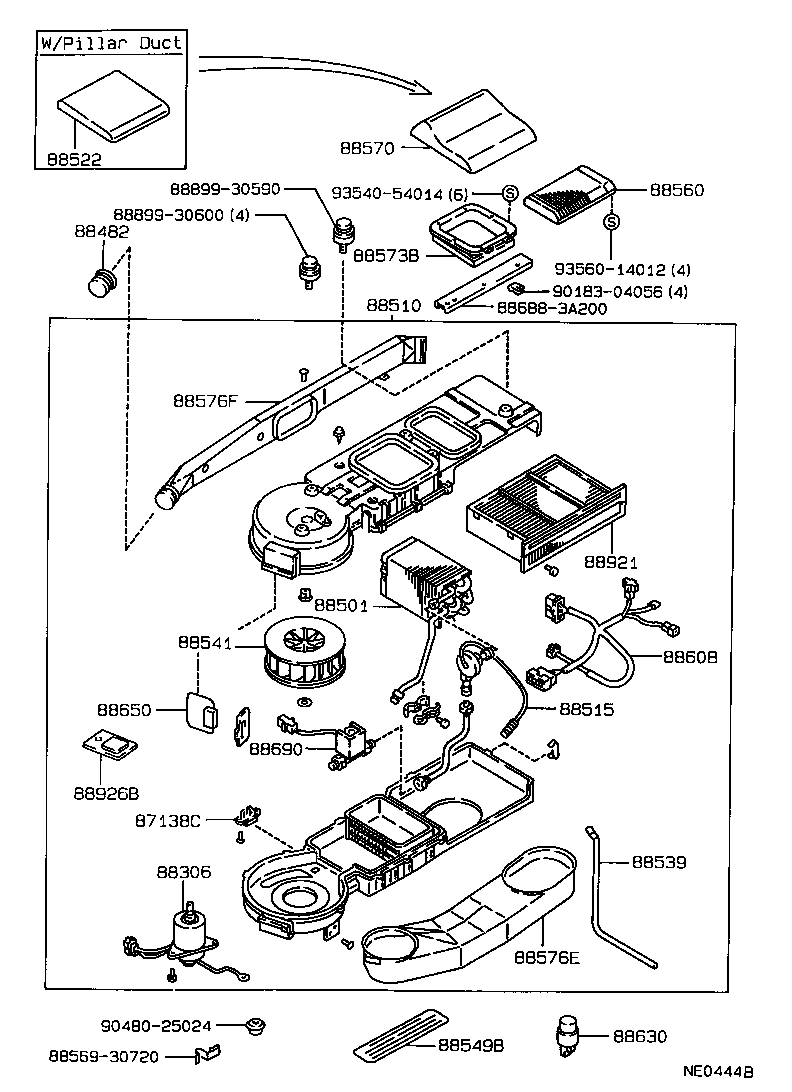

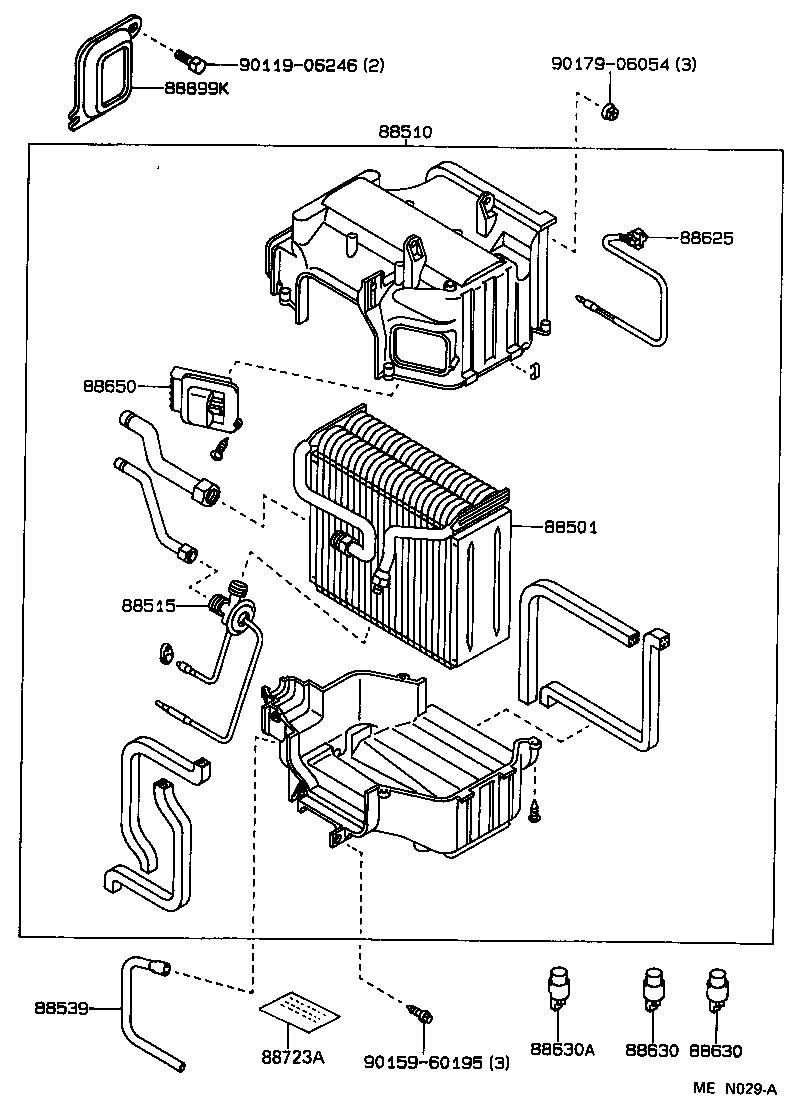

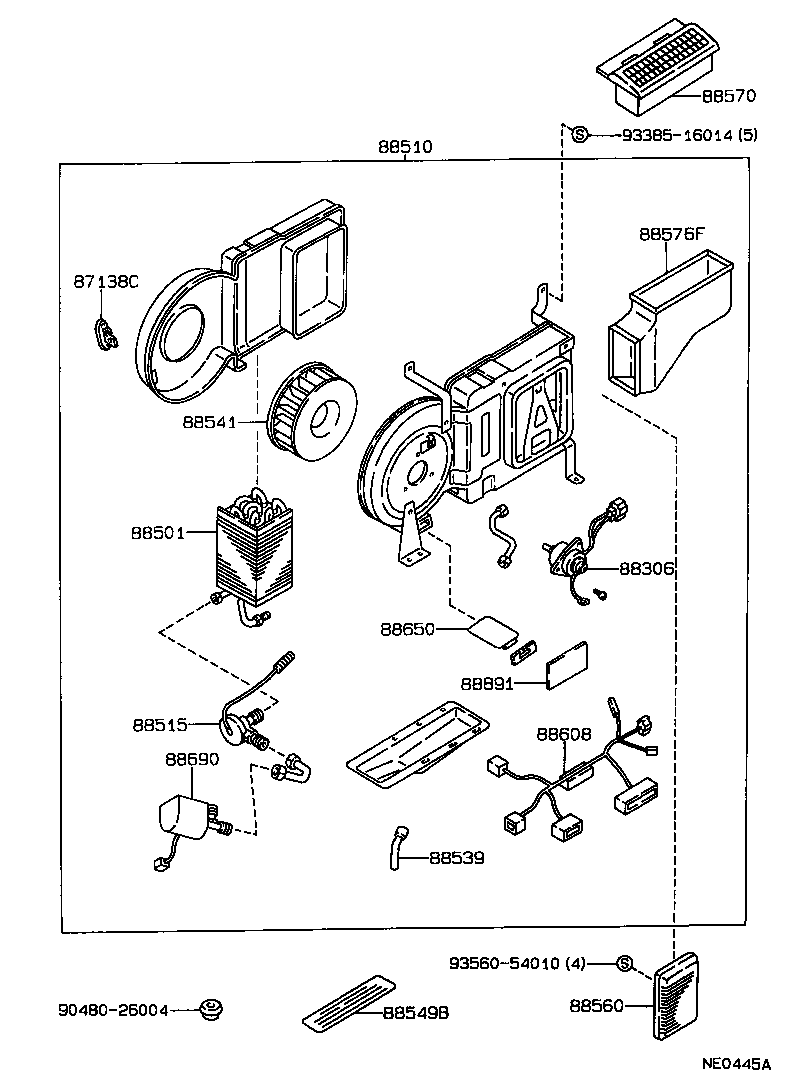

Figure MEN028C MEN028C 1987-09 → — Figure MEN028C MEN028C 1989-08 → — Figure MEN029A MEN029A 1987-09 → — Figure NE0552B NE0552B 1987-09 → — Figure NE0444B NE0444B 1987-09 → — Figure NE0445A NE0445A 1987-09 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88522 Door, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88541 Fan, Blower
88549B Plate, Caution
88560 Grille Assy, Cooler Air Inlet
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88576E Duct, Cooler Air, NO.1
88576F Duct, Cooler Air, NO.2
88608 Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88690 Valve Assy, Cooler Magnet
88723A Label, Cooler Service Caution
88891 Packing (FOR COOLER)
88899K Plate, Cover
88921 Filter, Air Purifier, NO.1
88926B Filter, Air Purifier
