Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 5 illustrations

Illustrations

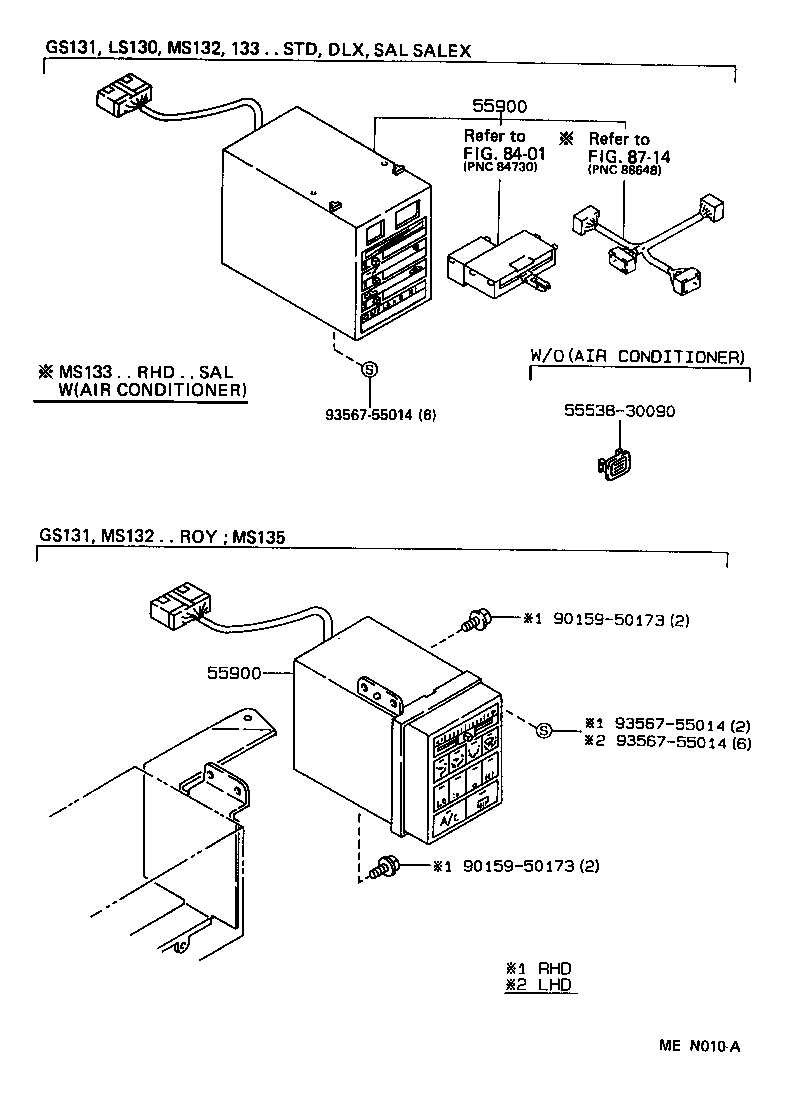

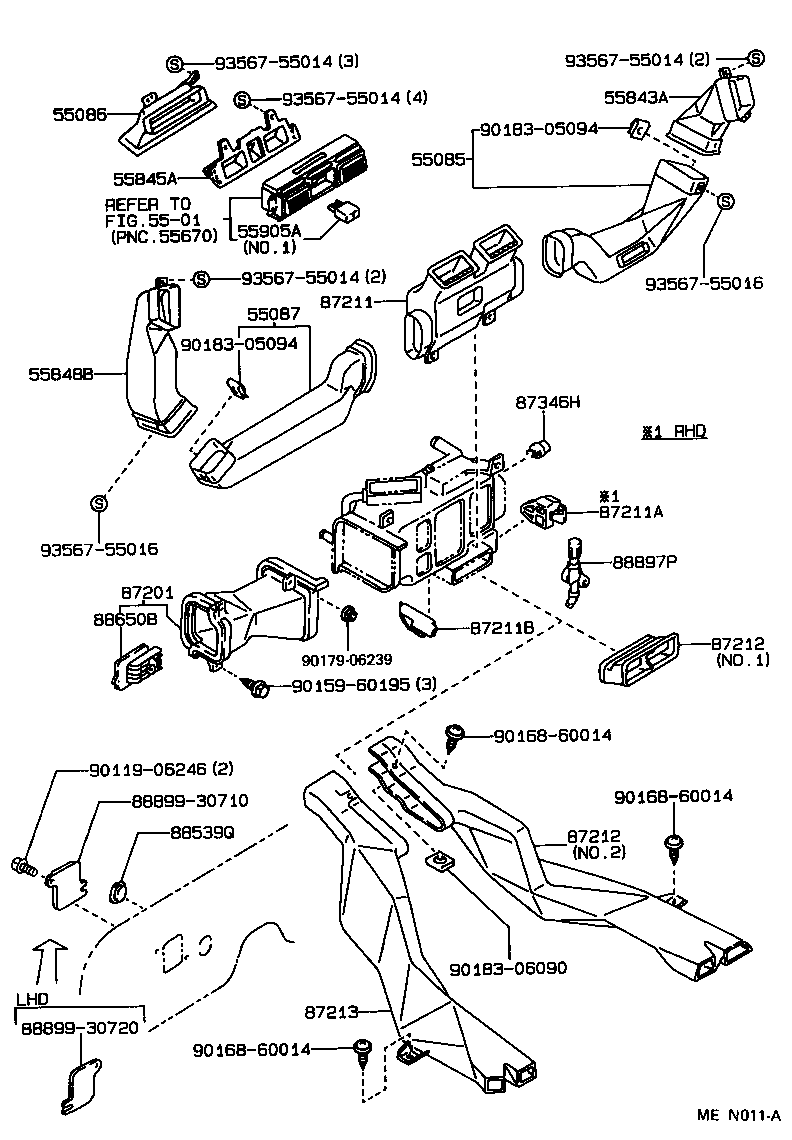

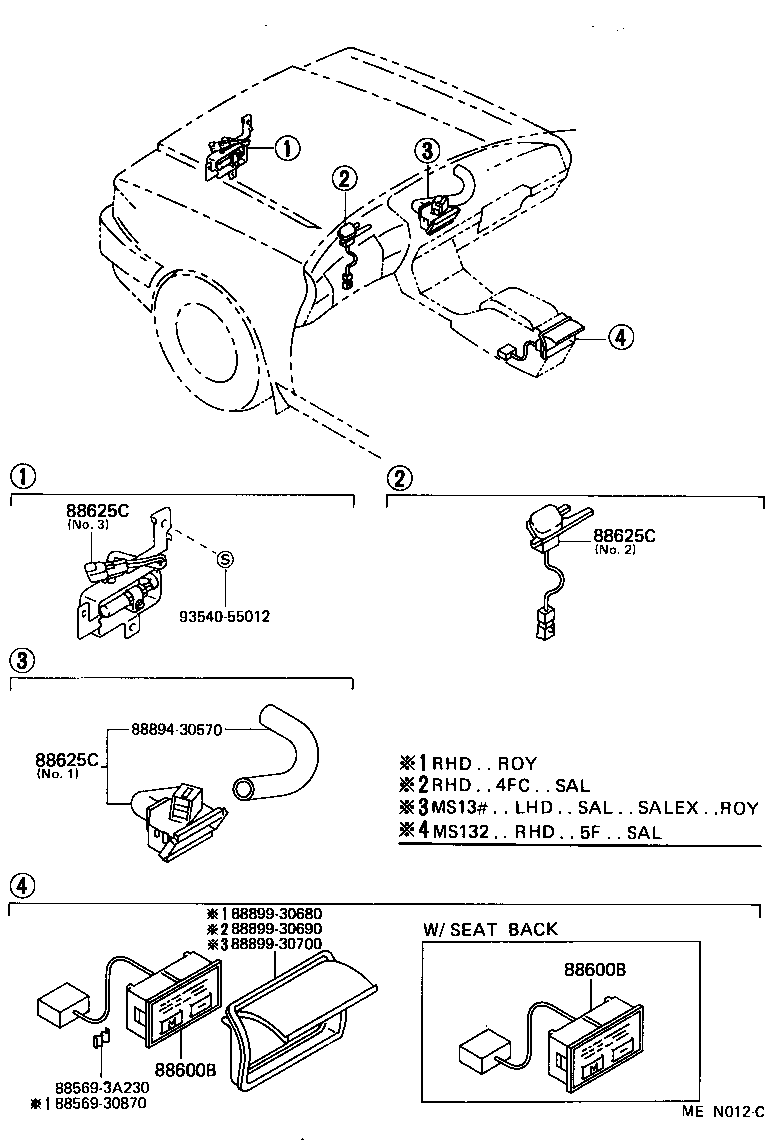

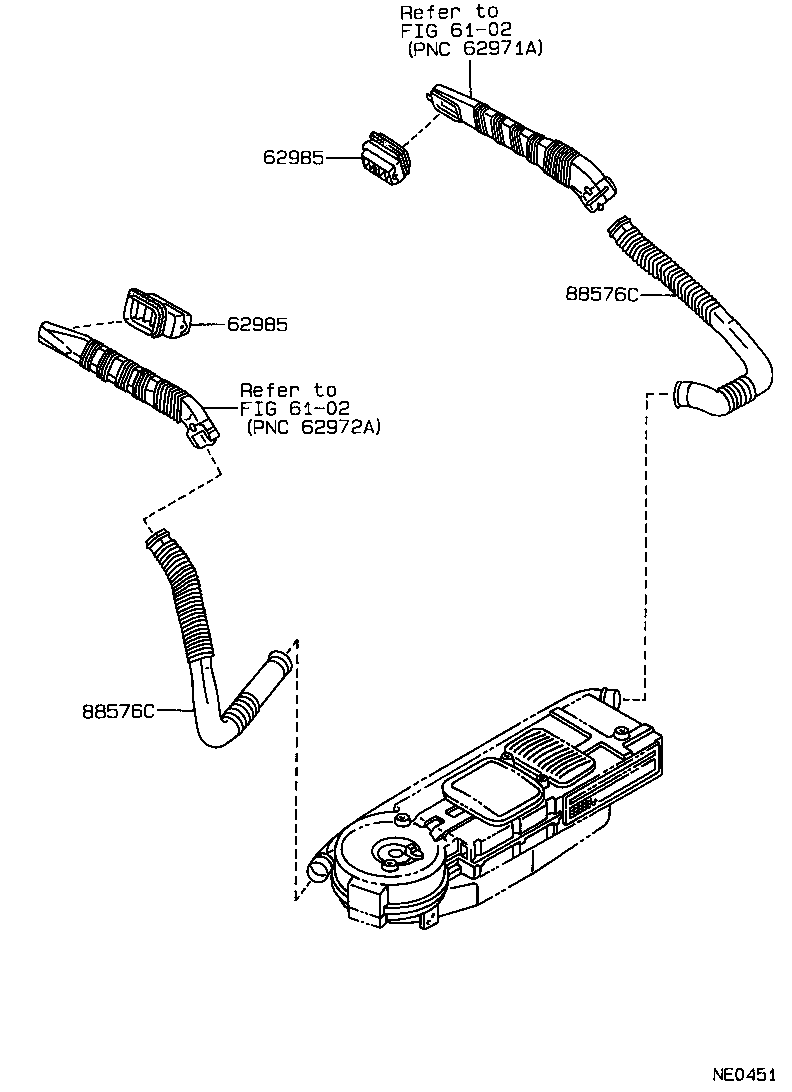

Figure NE0446B NE0446B 1987-09 → — Figure MEN010A MEN010A 1987-09 → — Figure MEN011A MEN011A 1987-09 → — Figure MEN012C MEN012C 1987-09 → — Figure NE0451 NE0451 1987-09 → —

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55848B Duct, Heater TO Register, NO.6
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
55941 Bracket, Heater Control
62985 Register, Roof Side Air Outlet
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87346H Relay, Heater, NO.2
88539Q Plug, Hole (FOR DRAIN HOSE HOLE)
88576C Duct, Cooler Air, NO.1
88600B Panel Assy, Control
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
