Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

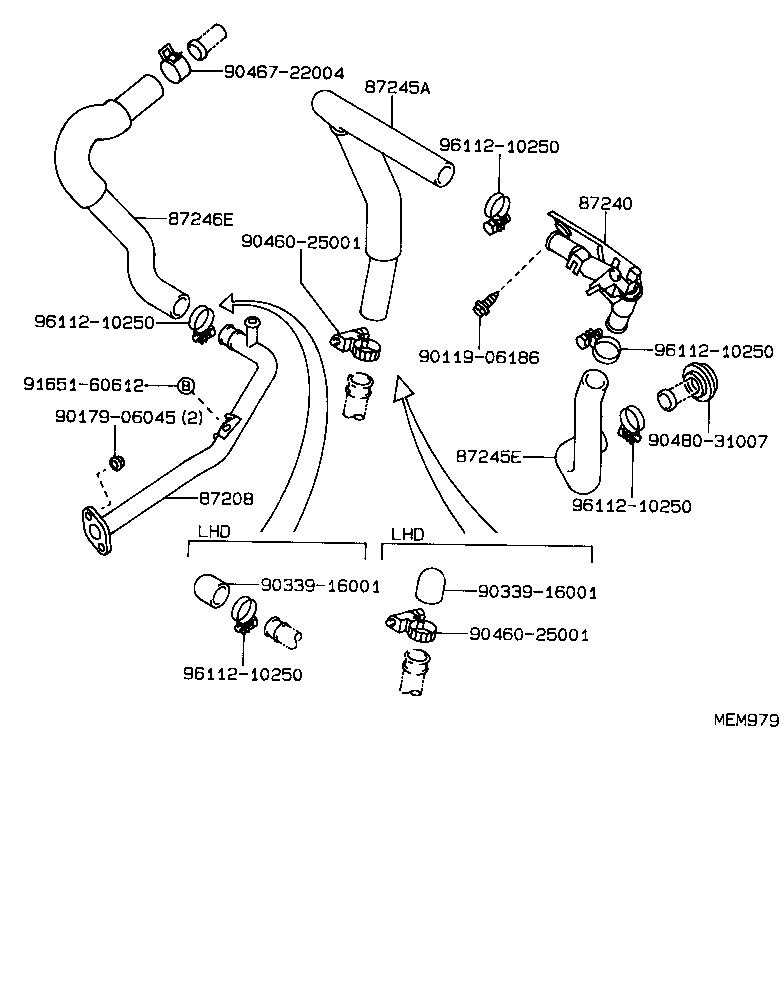

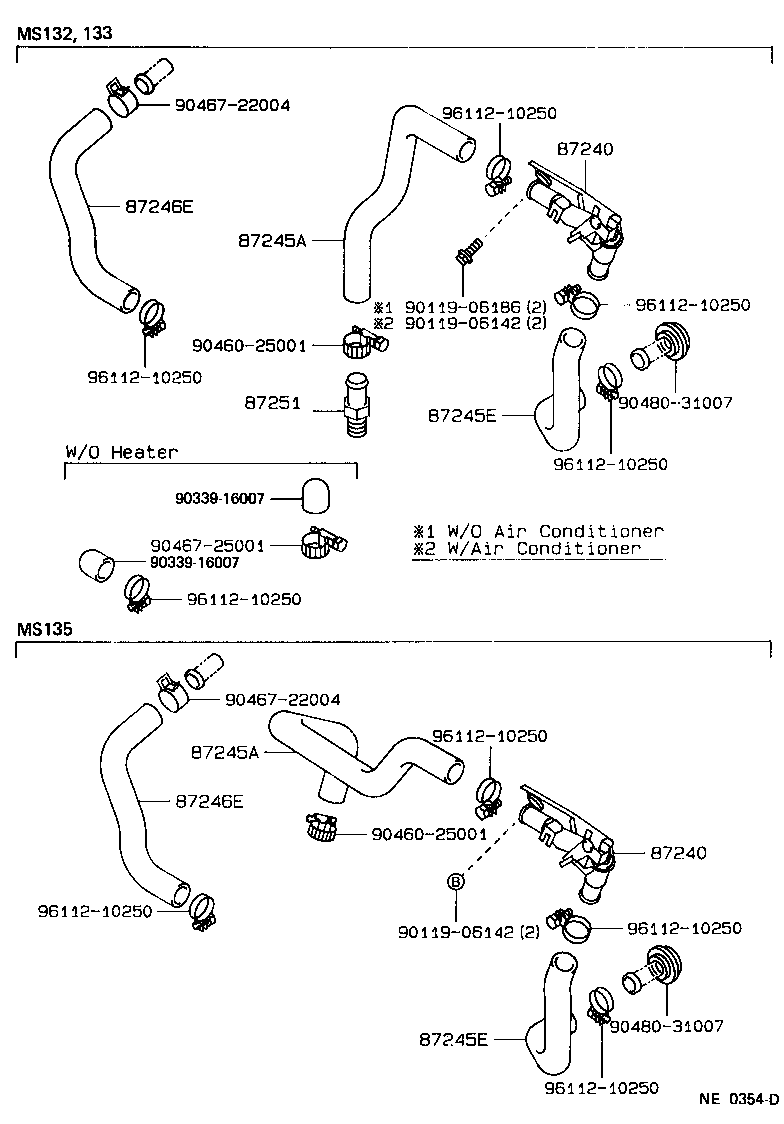

Heating & Air Conditioning - Water Piping
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87208 | Pipe Sub-assy, Heater Water |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246E | Hose, Heater Water, Outlet E |
| 87251 | Joint OR Union, Water Hose Through |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
