Heating & Air Conditioning - Cooler Piping

27 part groups · 14 illustrations

Illustrations

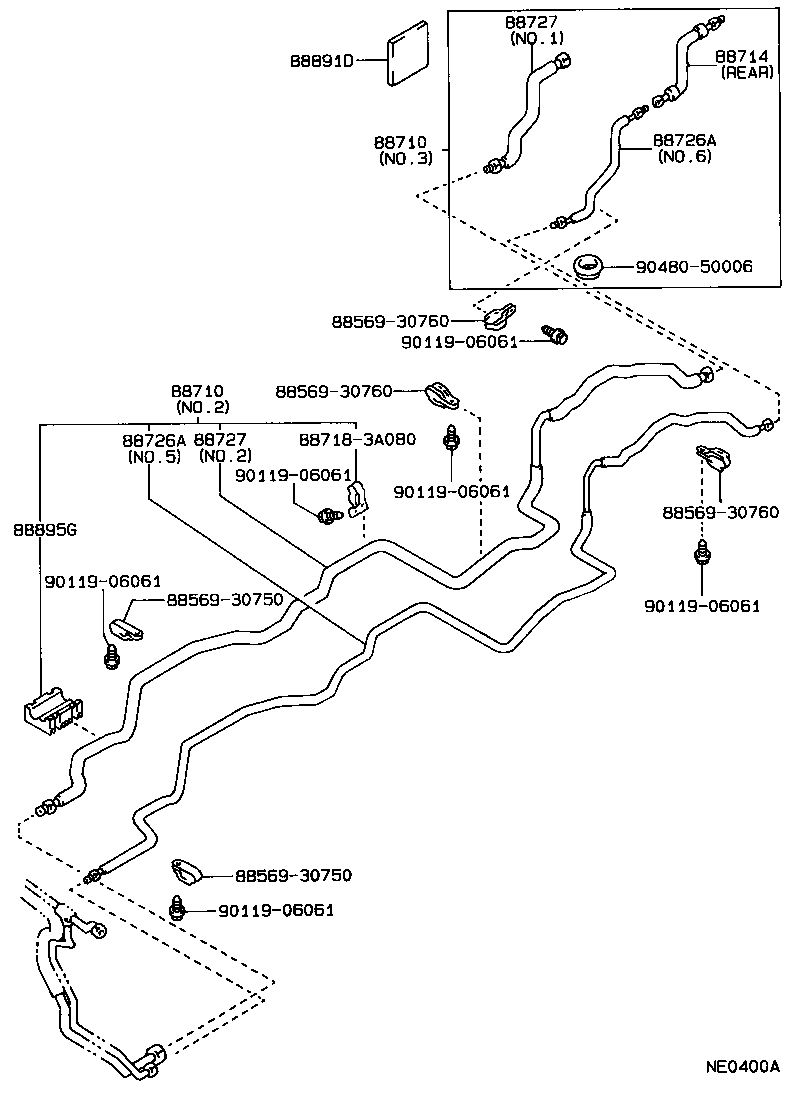

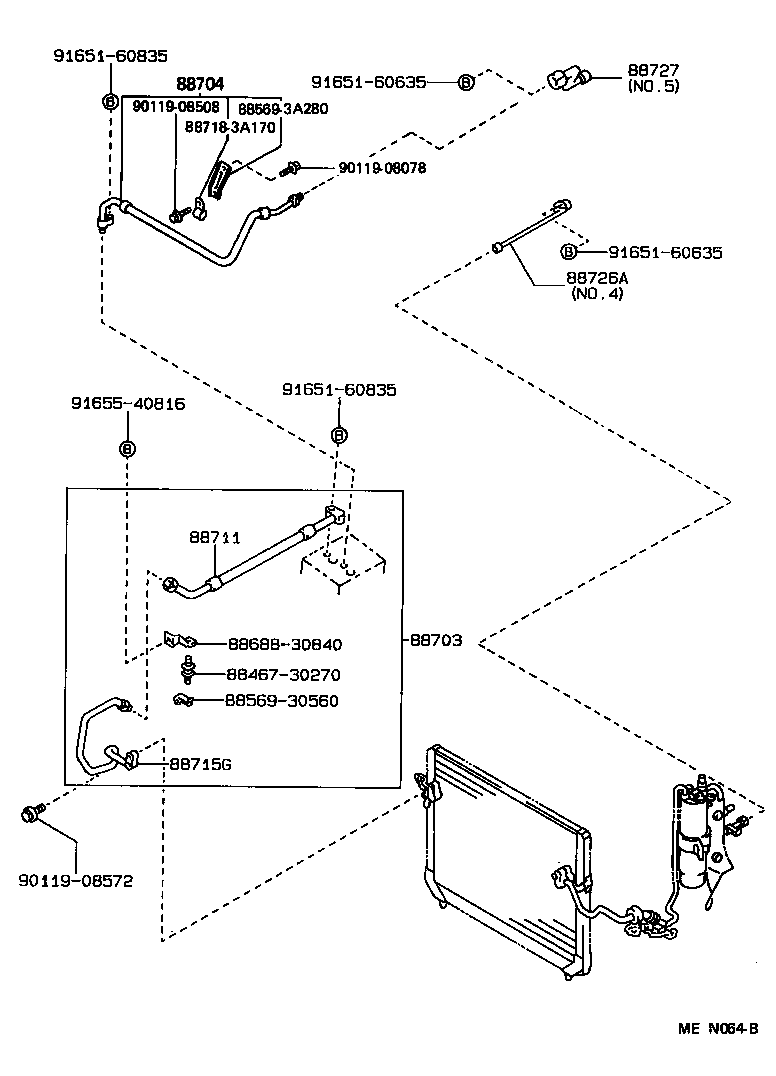

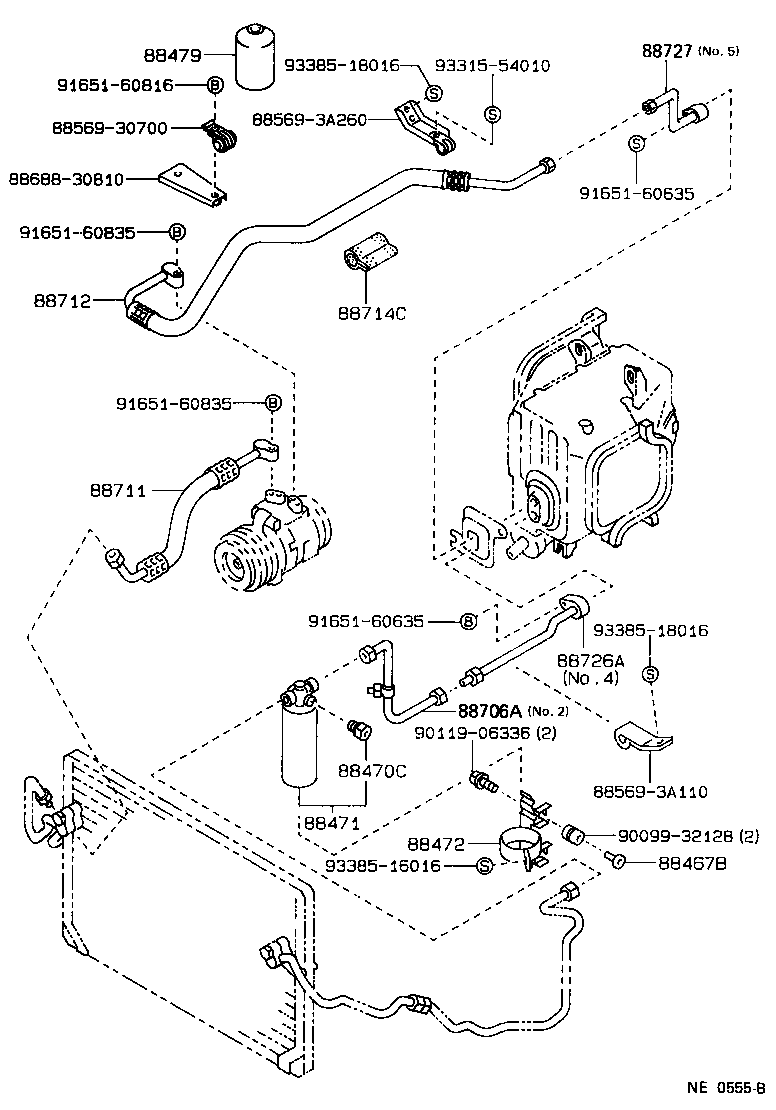

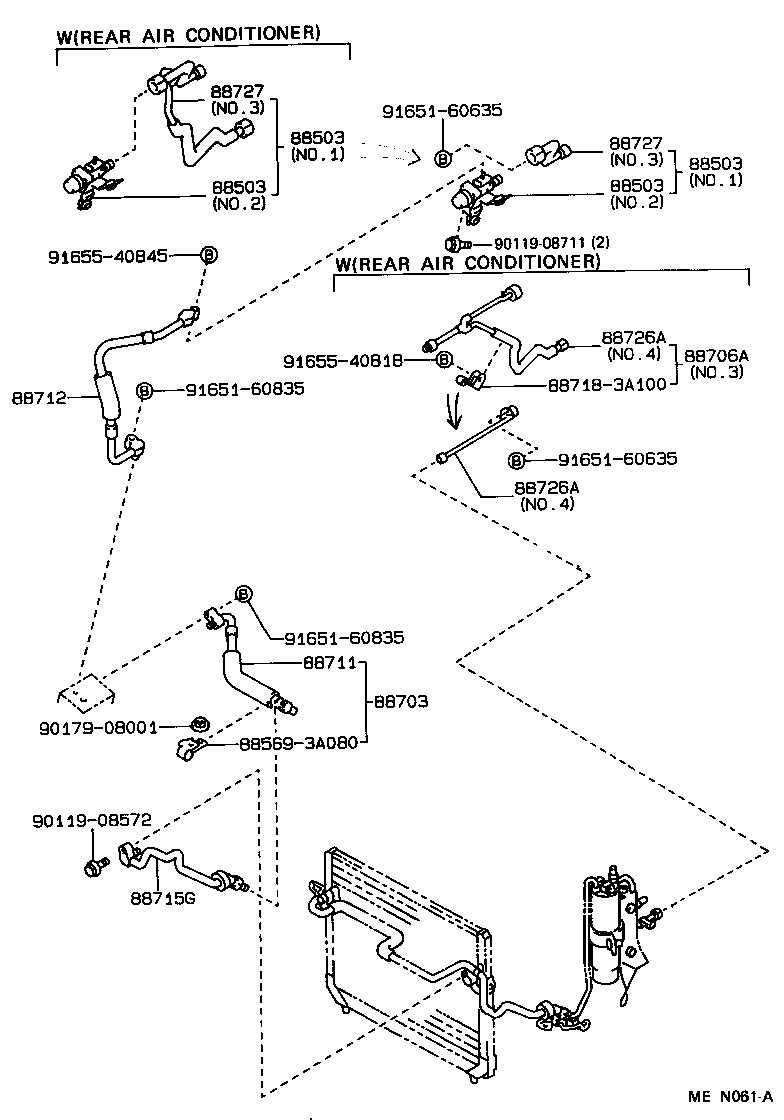

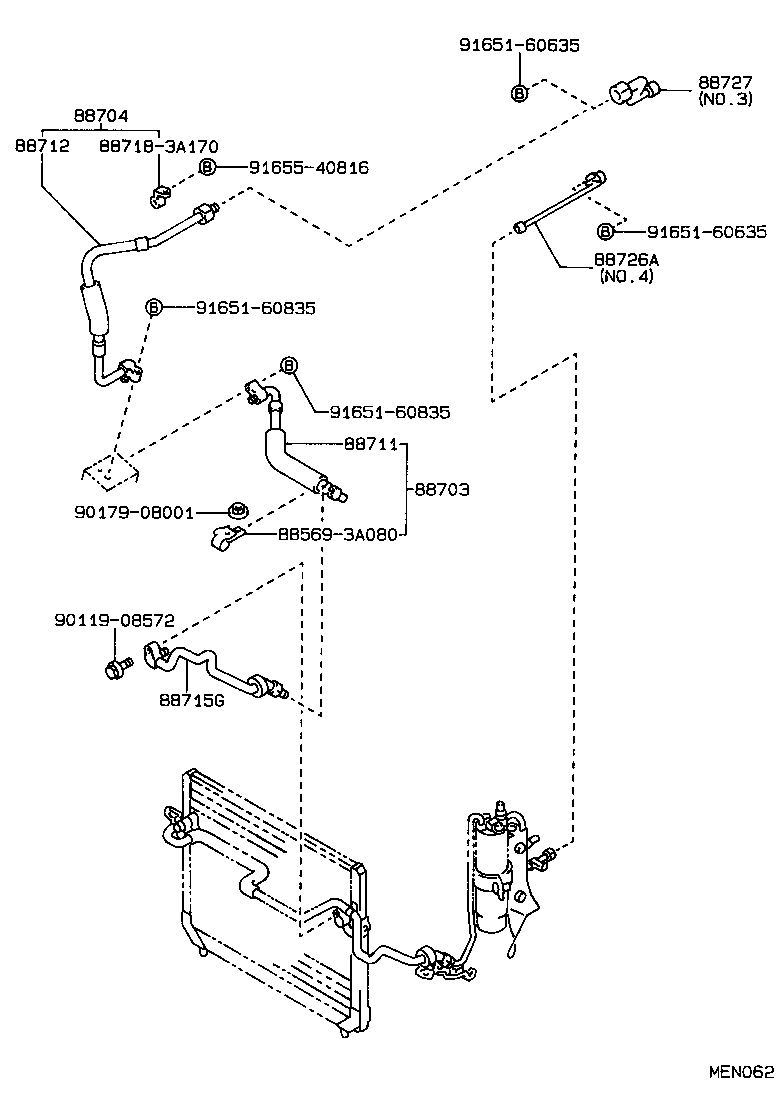

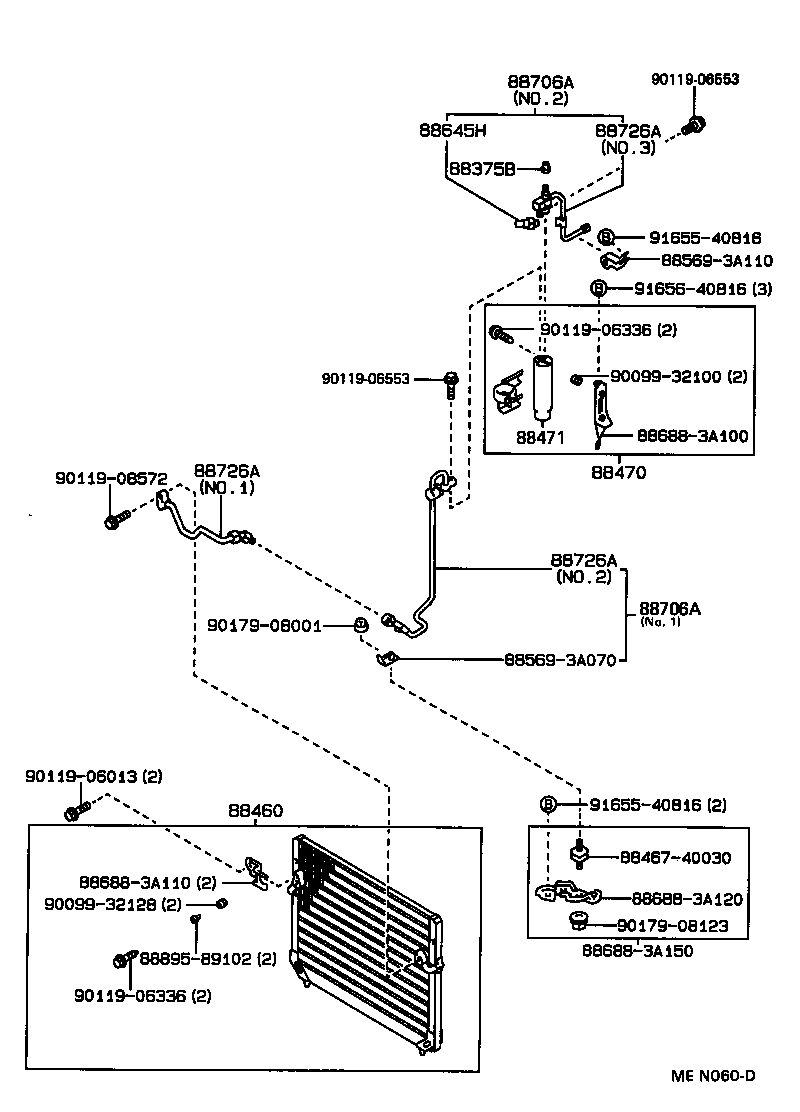

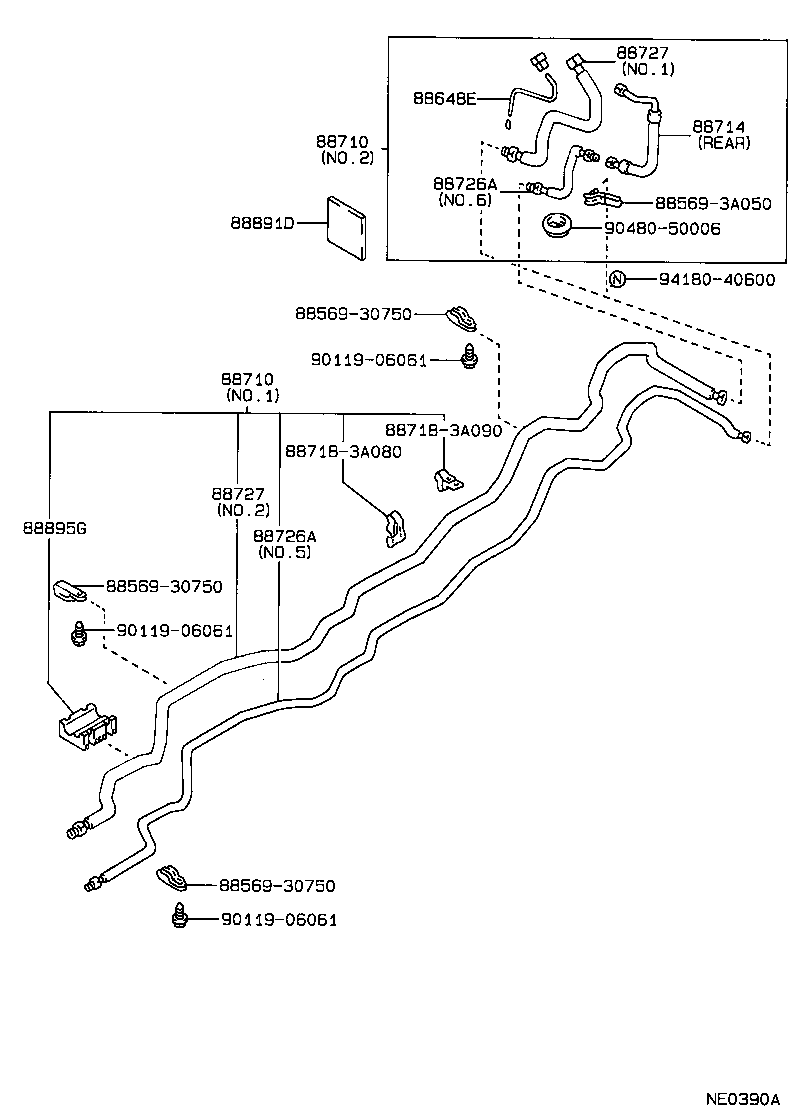

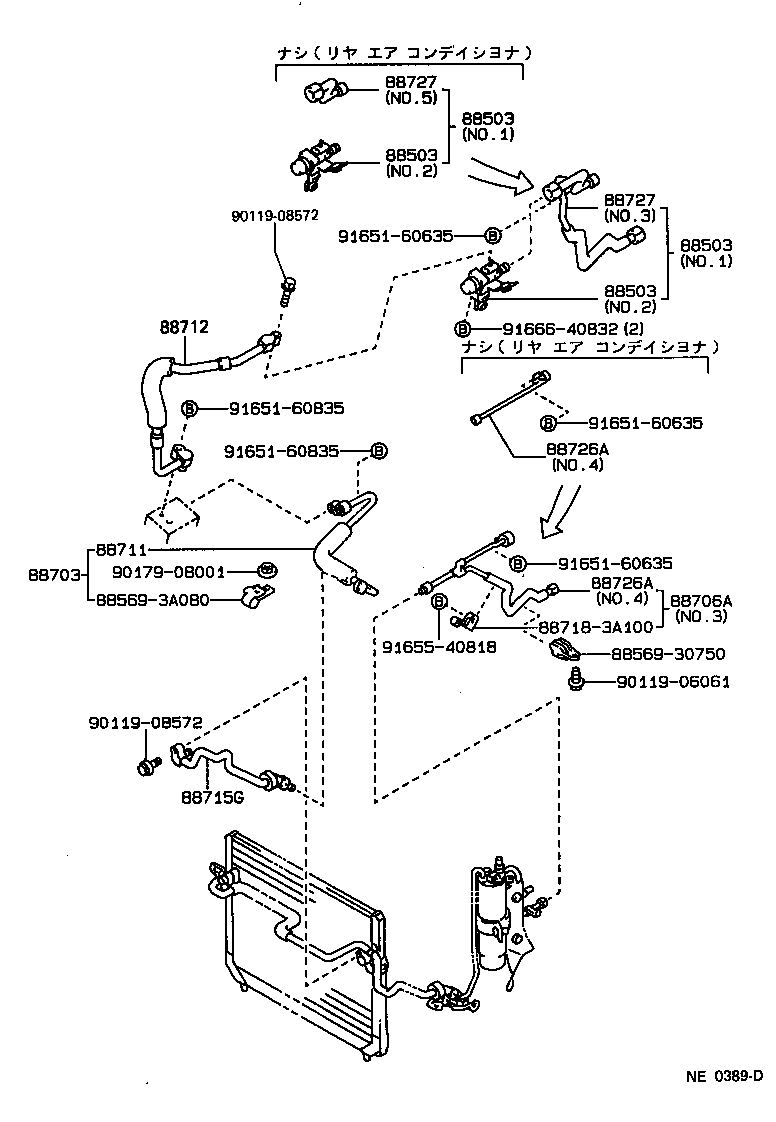

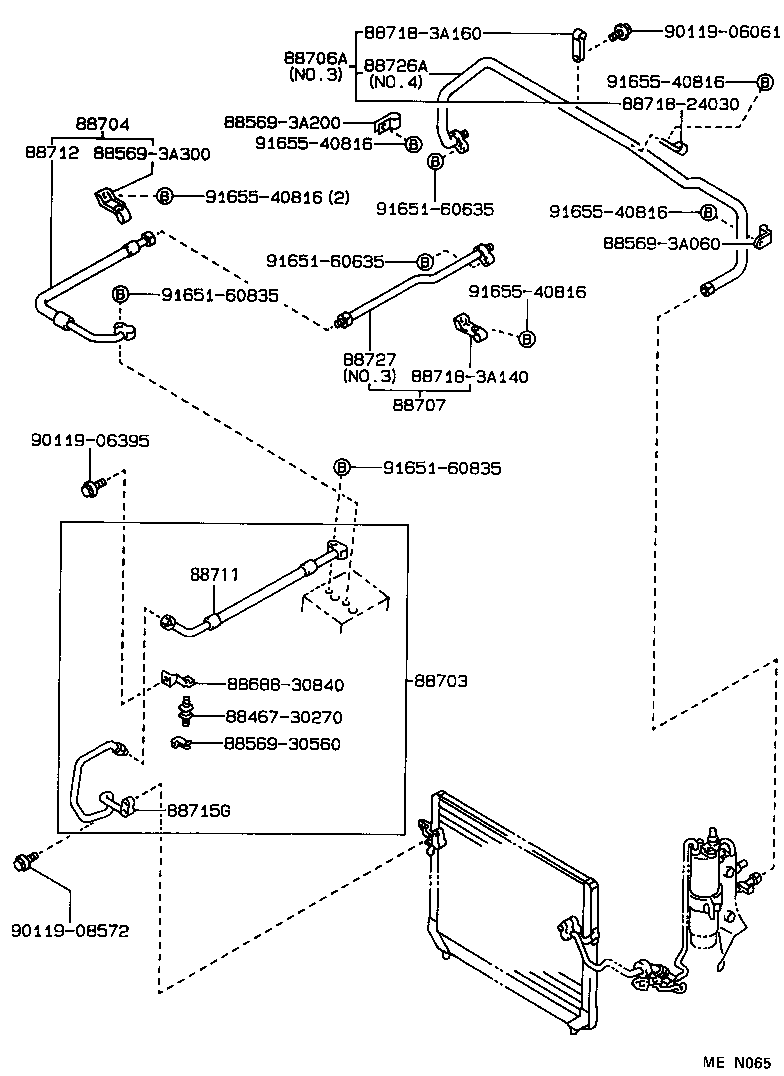

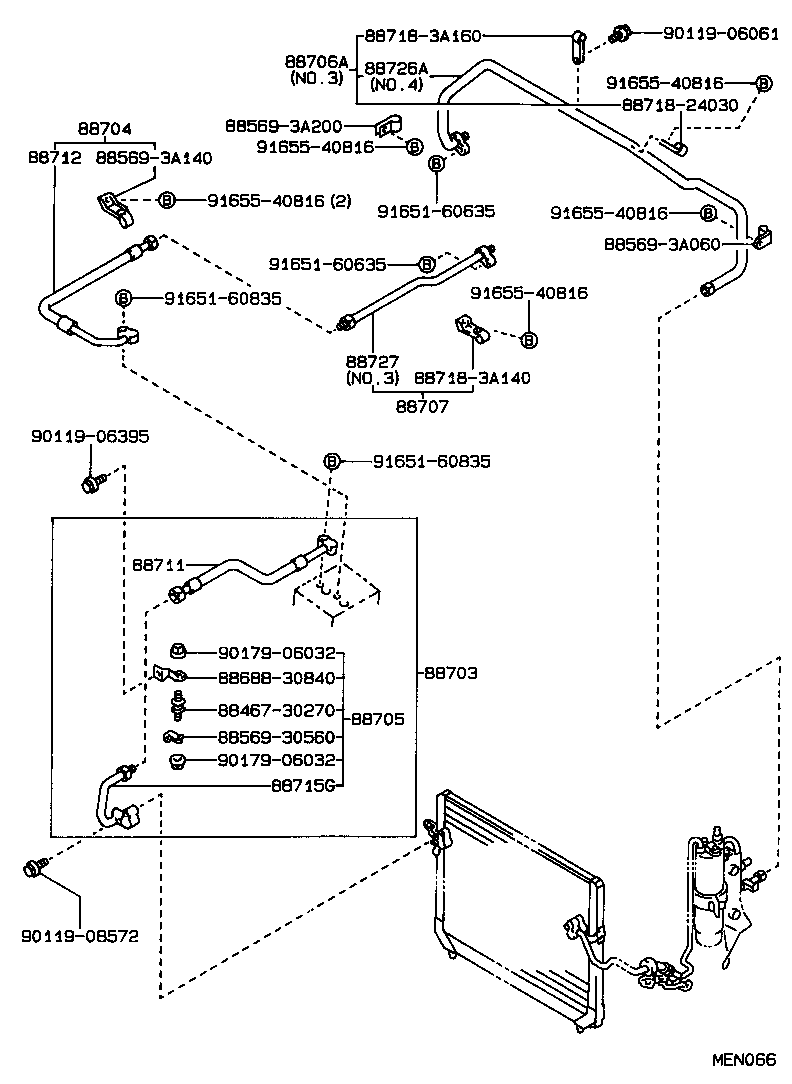

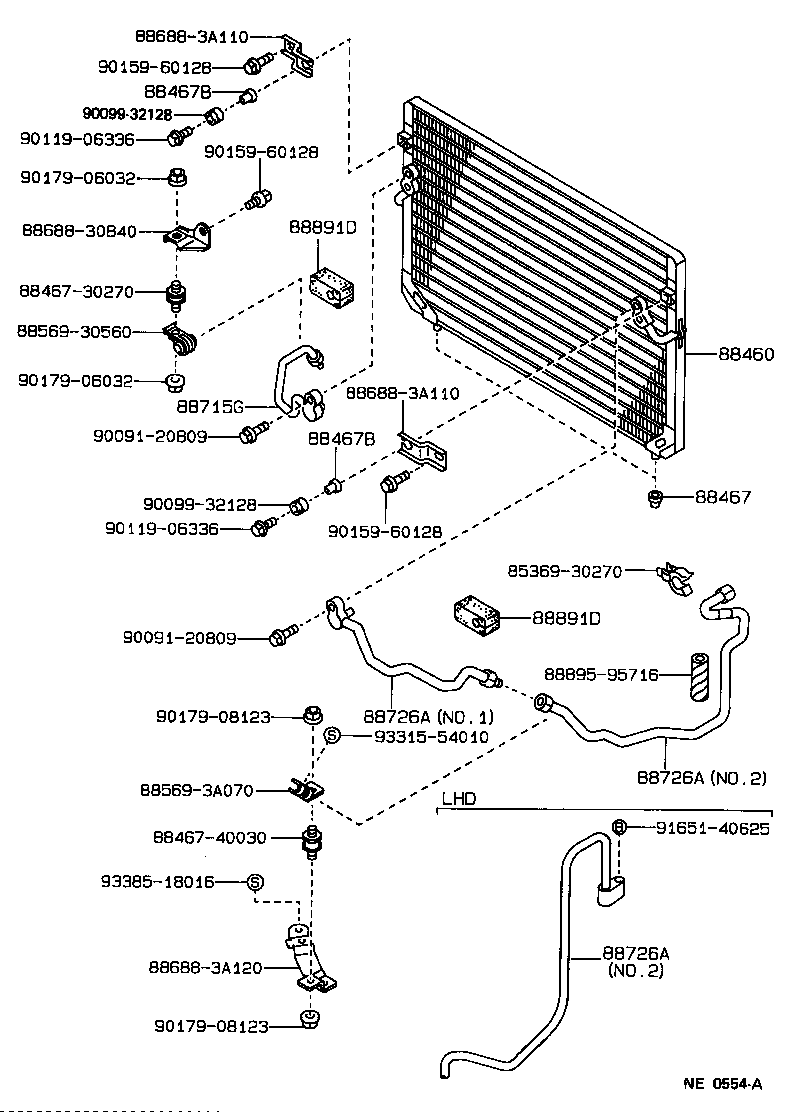

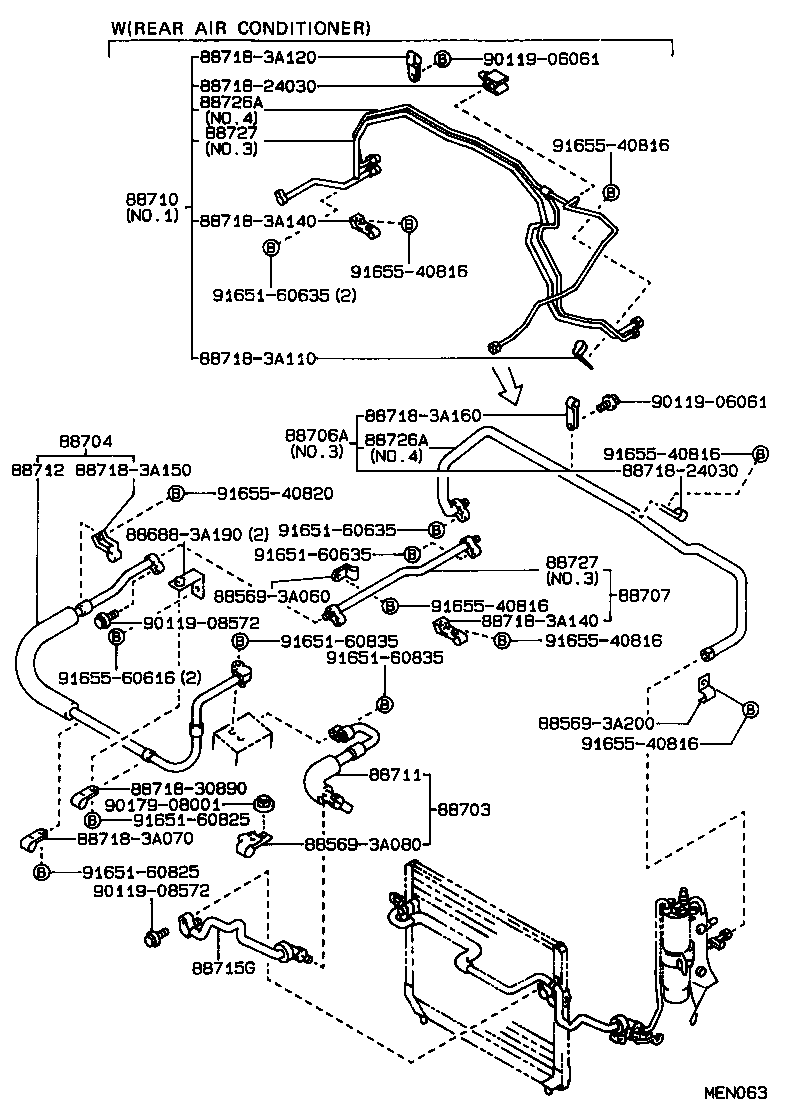

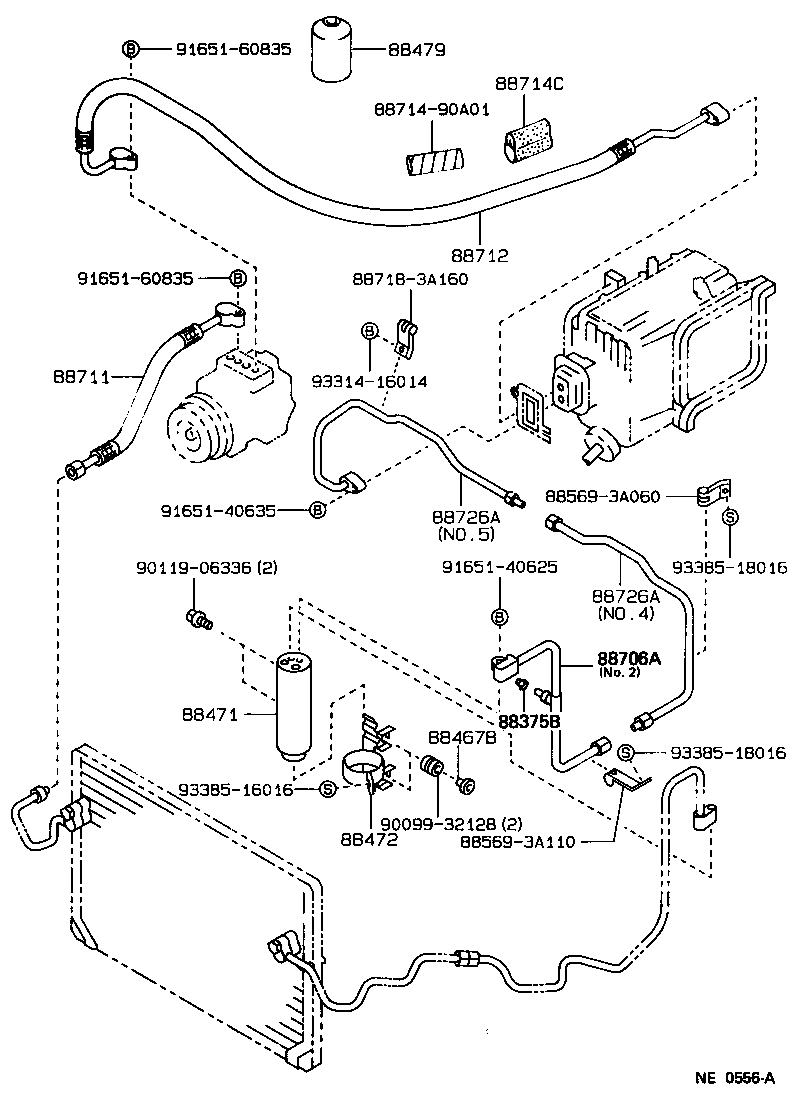

Figure MEN059C MEN059C 1987-09 → — Figure MEN060D MEN060D 1989-08 → — Figure NE0554A NE0554A 1987-09 → — Figure MEN061A MEN061A 1987-09 → — Figure MEN062 MEN062 1987-09 → — Figure MEN063 MEN063 1987-09 → — Figure MEN064B MEN064B 1989-08 → — Figure NE0555B NE0555B 1987-09 → — Figure MEN065 MEN065 1989-08 → — Figure NE0556A NE0556A 1987-09 → — Figure MEN066 MEN066 1989-08 → — Figure NE0390A NE0390A 1987-09 → — Figure NE0389D NE0389D 1987-09 → — Figure NE0400A NE0400A 1987-09 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705 Pipe Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715G Tube, Discharge, G
88726A Pipe, Cooler Refrigerant Liquid, A
88727 Tube, Suction, NO.2
88891D Packing D (FOR COOLER)
88895G Bush
