Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01

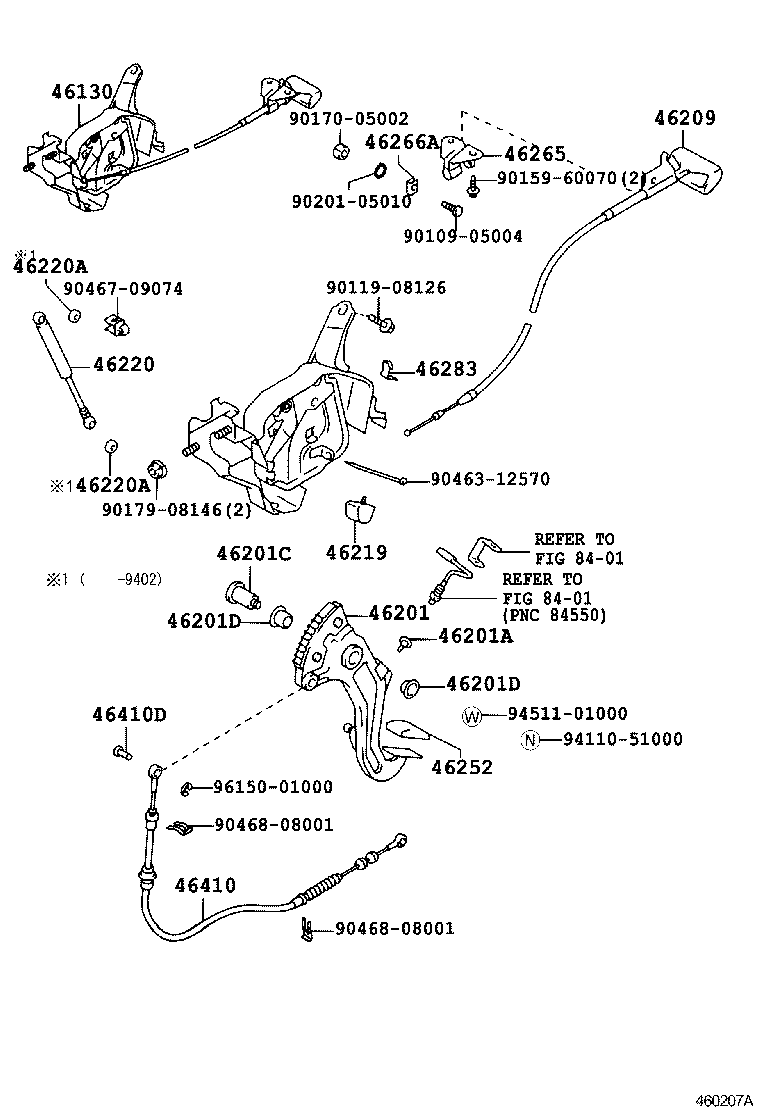

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46130 — Bracket Assy, Parking Brake Pedal | ||||
| 46130-30081 |
Bracket Assy, Parking Brake Pedal
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46130-30081 |
Bracket Assy, Parking Brake Pedal
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46201 — Pedal Sub-assy, Parking Brake | ||||
| 46201-30110 |
Pedal Sub-assy, Parking Brake
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46201-30110 |
Pedal Sub-assy, Parking Brake
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46201A — Cushion(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
Cushion(FOR PARKING BRAKE PEDAL)
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 90541-01001 |
Cushion(FOR PARKING BRAKE PEDAL)
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46201C — Shaft, Pedal | ||||
| 90109-10033 |
Shaft, Pedal
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 90109-10033 |
Shaft, Pedal
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46201D — Bush(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
Bush(FOR PARKING BRAKE PEDAL)
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 90386-16022 |
Bush(FOR PARKING BRAKE PEDAL)
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46209 — Cable Sub-assy, Parking Brake Release | ||||
| 46209-30070 |
Cable Sub-assy, Parking Brake Release
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46209-30070 |
Cable Sub-assy, Parking Brake Release
1995-08 → 1996-09
ended
|
JZS133 RHD 4FC | — | |
| 46209-30071 |
Cable Sub-assy, Parking Brake Release
1996-09 → 2001-04
ended
|
JZS133 Q | — | |
| 46219 — Stopper, Parking Pedal | ||||
| 90541-07008 |
Stopper, Parking Pedal
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 90541-07008 |
Stopper, Parking Pedal
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46220 — Absorber Assy, Parking Brake Pedal Return | ||||
| 46220-30010 |
Absorber Assy, Parking Brake Pedal Return
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46220-30010 |
Absorber Assy, Parking Brake Pedal Return
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46220A — Cushion(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
Cushion(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
1991-10 → 1994-01
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46252 — Pad, Parking Pedal | ||||
| 46252-20010 |
Pad, Parking Pedal
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46252-20010 |
Pad, Parking Pedal
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46265 — Guide, Parking Brake Release Rod | ||||
| 46265-30040 |
Guide, Parking Brake Release Rod
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46265-30040 |
Guide, Parking Brake Release Rod
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46266A — Cushion, Release Rod Guide Intermediate | ||||
| 46266-30010 |
Cushion, Release Rod Guide Intermediate
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46266-30010 |
Cushion, Release Rod Guide Intermediate
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46283 — Protector, Parking Brake Signal Switch | ||||
| 46283-30020 |
Protector, Parking Brake Signal Switch
1991-10 → 1995-12
ended
|
LS130 4H | — | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-30530 |
Cable Assy, Parking Brake, NO.1
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 46410-30530 |
Cable Assy, Parking Brake, NO.1
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
| 46410-30570 |
Cable Assy, Parking Brake, NO.1
1991-10 → 1995-08
ended
|
GS131 G;JZS133 LHD;JZS133 RHD +1 | — | |
| 46410-30570 |
Cable Assy, Parking Brake, NO.1
1995-08 → 2001-04
ended
|
JZS133 LHD;GS131 LHD Q;JZS133 +2 | — | |
| 46410-30590 |
Cable Assy, Parking Brake, NO.1
1991-10 → 1995-12
ended
|
LS130,YS132 4F | — | |
| 46410-30610 |
Cable Assy, Parking Brake, NO.1
1991-10 → 1995-12
ended
|
LS130 4H | — | |
| 46410D — Pin(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
Pin(FOR PARKING BRAKE FRONT CABLE)
1991-10 → 1995-08
ended
|
JZS133 LHD;JZS133 RHD 5F;GS131,LS130,YS132 +1 | — | |
| 90240-08021 |
Pin(FOR PARKING BRAKE FRONT CABLE)
1995-08 → 2001-04
ended
|
JZS133 LHD;GS131 LHD Q;LS130,YS132 +3 | — | |
| 90249-10012 |
Pin(FOR PARKING BRAKE FRONT CABLE)
1991-10 → 1995-08
ended
|
GS131,JZS133 RHD 4FC | — | |
| 90249-10012 |
Pin(FOR PARKING BRAKE FRONT CABLE)
1995-08 → 2001-04
ended
|
JZS133 RHD 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
