Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01

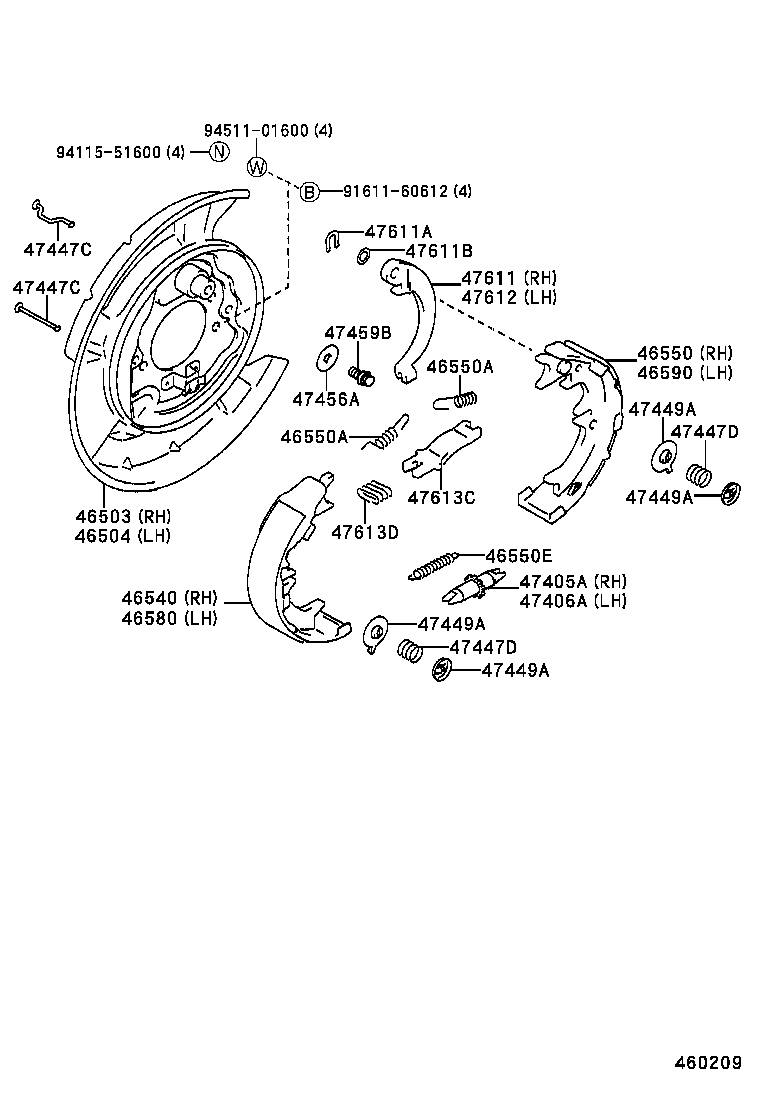

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46503 — Plate Sub-assy, Parking Brake, RH | ||||
| 46503-30070 |
Plate Sub-assy, Parking Brake, RH
1991-10 → 2001-04
ended
|
JZS133 | — | |
| 46503-30080 |
Plate Sub-assy, Parking Brake, RH
1991-10 → 1999-04
ended
|
GS131 | — | |
| 46504 — Plate Sub-assy, Parking Brake, LH | ||||
| 46504-30070 |
Plate Sub-assy, Parking Brake, LH
1991-10 → 2001-04
ended
|
JZS133 | — | |
| 46504-30080 |
Plate Sub-assy, Parking Brake, LH
1991-10 → 1999-04
ended
|
GS131 | — | |
| 46540 — Shoe Assy, Parking Brake, RH OR Center NO.1 | ||||
| 46540-30030 |
Shoe Assy, Parking Brake, RH OR Center NO.1
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 46550 — Shoe Assy, Parking Brake, RH OR Center NO.2 | ||||
| 46550-30030 |
Shoe Assy, Parking Brake, RH OR Center NO.2
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 46550A — Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 note |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 90506-16007 note |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 46550E — Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 46580 — Shoe Assy, Parking Brake, LH NO.1 | ||||
| 46540-30030 |
Shoe Assy, Parking Brake, LH NO.1
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 46590 — Shoe Assy, Parking Brake, LH NO.2 | ||||
| 46590-30020 |
Shoe Assy, Parking Brake, LH NO.2
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47405A — Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47406A — Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47447C — Pin, Shoe Hold Down Spring(FOR PARKING BRAKE) | ||||
| 47447-20030 note |
Pin, Shoe Hold Down Spring(FOR PARKING BRAKE)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47447-22020 note |
Pin, Shoe Hold Down Spring(FOR PARKING BRAKE)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47447D — Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 note |
Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
1991-10 → 1993-08
ended
|
GS131,JZS133 | — | |
| 90501-14049 note |
Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
1993-08 → 2001-04
ended
|
GS131,JZS133 | — | |
| 90501-16053 note |
Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
1991-10 → 1993-08
ended
|
GS131,JZS133 | — | |
| 90501-16053 note |
Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
1993-08 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47449A — Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 note |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
1991-10 → 1993-01
ended
|
GS131,JZS133 | — | |
| 47449-30030 note |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47449-40010 note |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
1993-01 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47456A — Plate, Shoe Guide(FOR PARKING BRAKE) | ||||
| 47456-20030 |
Plate, Shoe Guide(FOR PARKING BRAKE)
1991-10 → 1994-03
ended
|
GS131,JZS133 | — | |
| 47456-33010 |
Plate, Shoe Guide(FOR PARKING BRAKE)
1994-03 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47459B — Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) | ||||
| 47459-30010 |
Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47611 — Lever, Parking Brake Shoe, RH | ||||
| 47611-22030 |
Lever, Parking Brake Shoe, RH
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47611A — Washer, Type C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
Washer, Type C(FOR PARKING BRAKE SHOE LEVER)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47611B — Shim(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 note |
Shim(FOR PARKING BRAKE SHOE LEVER)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 90564-09185 note |
Shim(FOR PARKING BRAKE SHOE LEVER)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 90564-09186 note |
Shim(FOR PARKING BRAKE SHOE LEVER)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47612 — Lever, Parking Brake Shoe, LH | ||||
| 47612-22030 |
Lever, Parking Brake Shoe, LH
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47613C — Strut, Parking Brake Shoe | ||||
| 47613-22020 |
Strut, Parking Brake Shoe
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
| 47613D — Spring, Compression(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
1991-10 → 2001-04
ended
|
GS131,JZS133 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
