Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

10 part groups · 7 illustrations

Illustrations

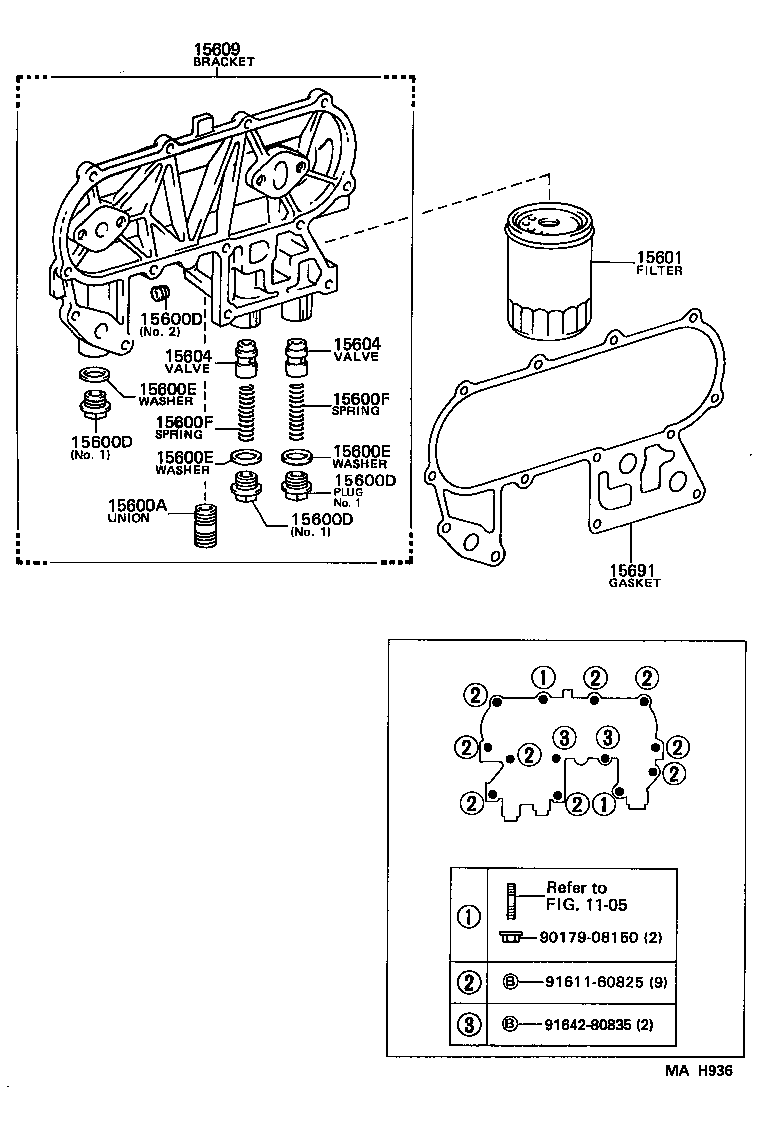

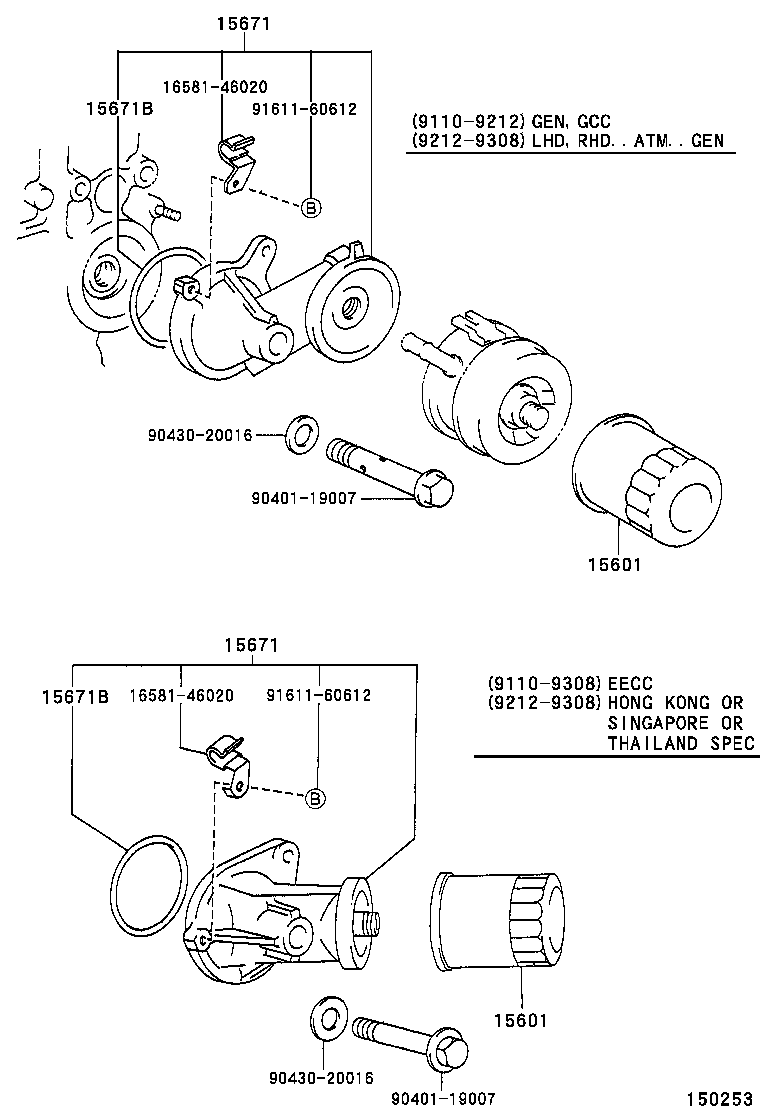

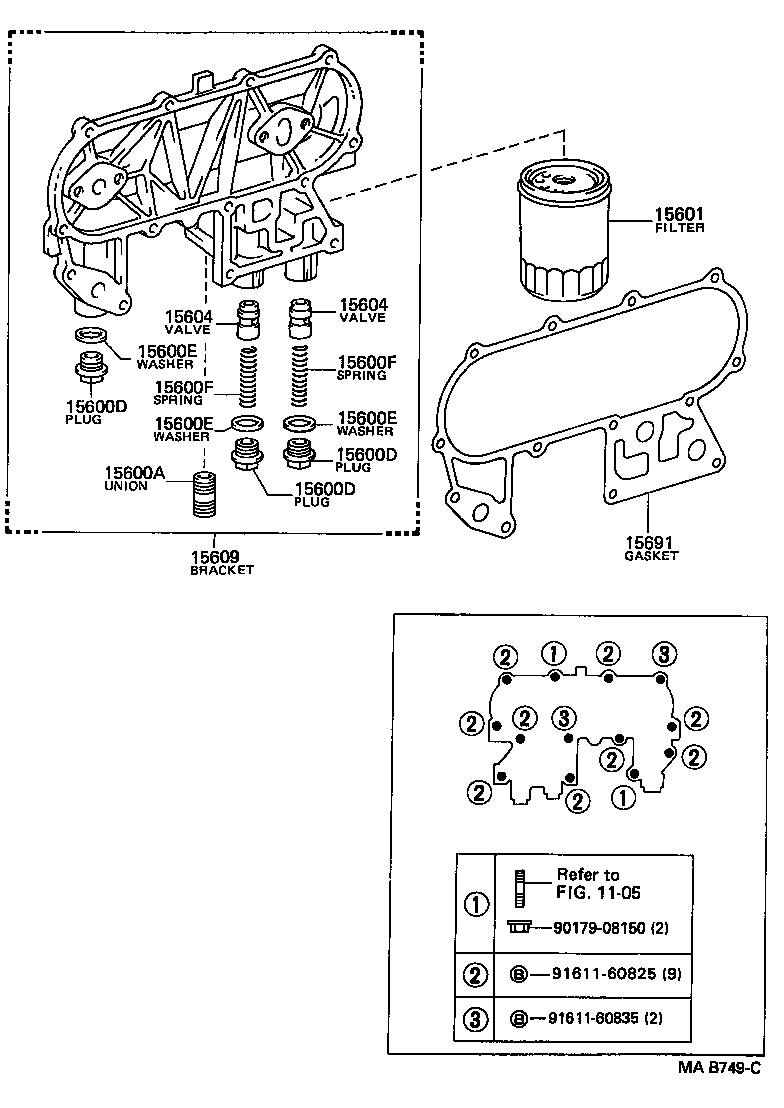

Figure MA6093A MA6093A 1991-10 → — Figure 150253 150253 1991-10 → 1993-08 Figure 150252 150252 1993-08 → — Figure MAB749C MAB749C 1991-10 → 1995-05 Figure MAB749C MAB749C 1995-05 → 1995-12 Figure MAH936 MAH936 1995-05 → 1995-12 Figure MA6182A MA6182A 1991-10 → 1995-12

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15671 Bracket, Oil Filter
15671B Gasket, Oil Filter Bracket
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
