Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01

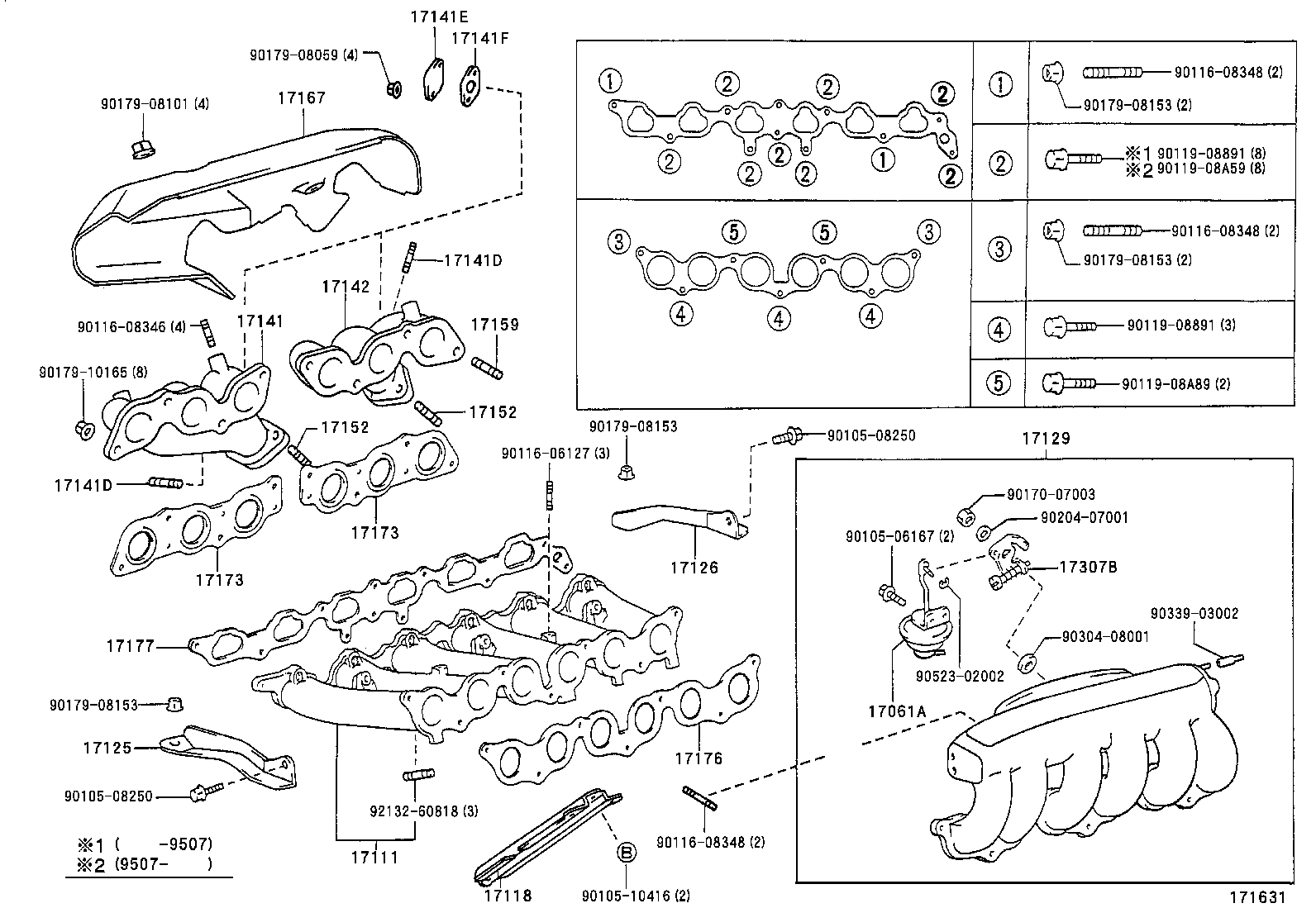

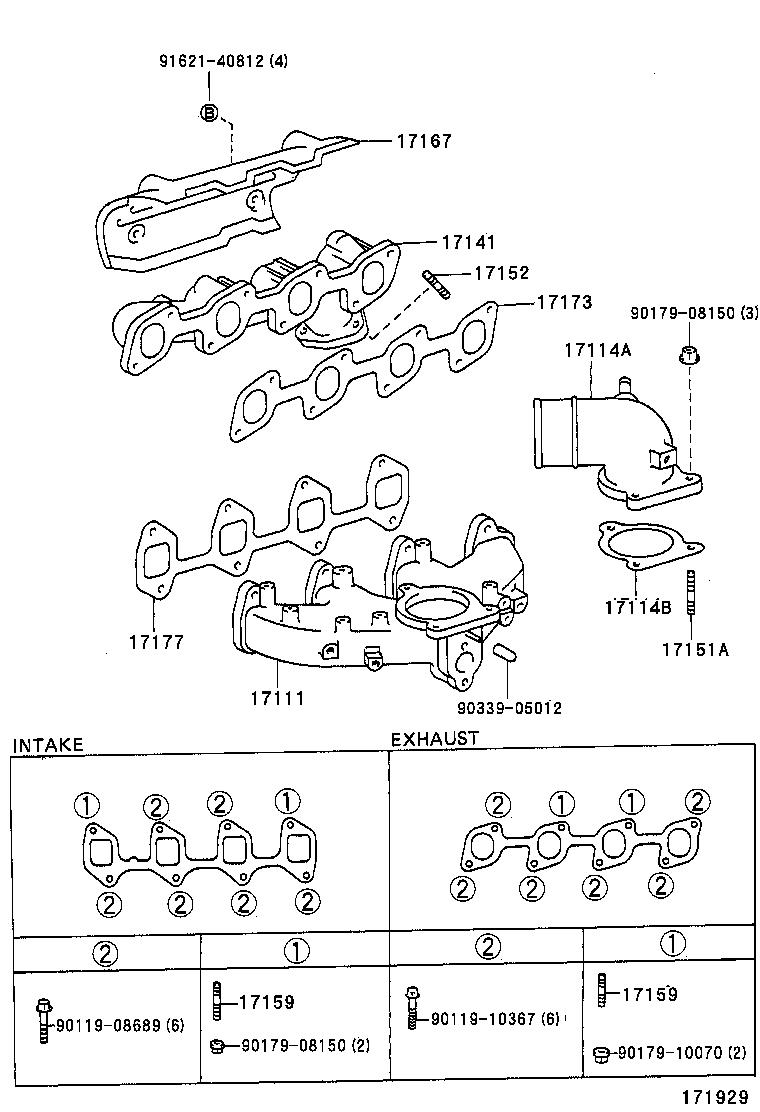

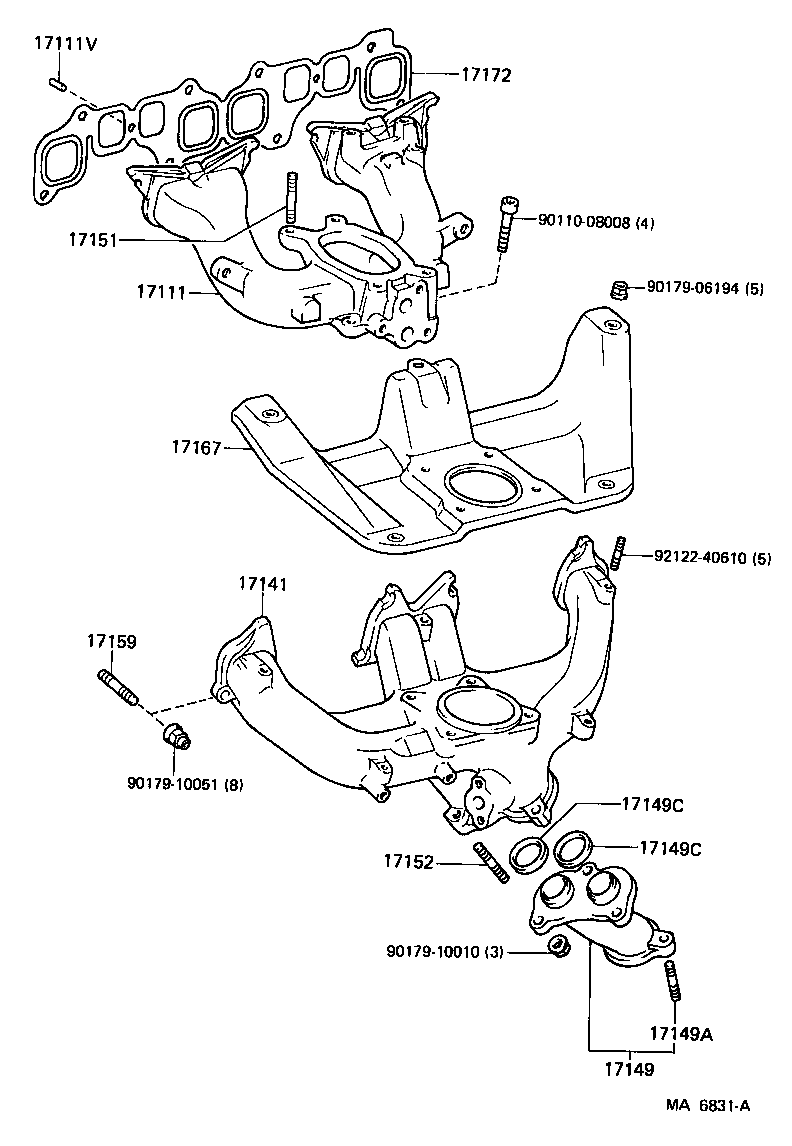

Manifold
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061A | Diaphragm Sub-assy |
| 17110A | Union, Vacuum Hose |
| 17111 | Manifold, Intake |
| 17111V | Pin, Straight(FOR INTAKE MANIFOLD SETTING) |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141E | Plate, Exhaust Manifold |
| 17141F | Gasket(FOR EXHAUST MANIFOLD PLATE) |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17149 | Extension, Exhaust Manifold |
| 17149A | Bolt, Stud(FOR MANIFOLD EXTENSION) |
| 17149C | Gasket(FOR MANIFOLD EXTENSION) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17307B | Lever Sub-assy, Intake Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
