Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 7 illustrations

Illustrations

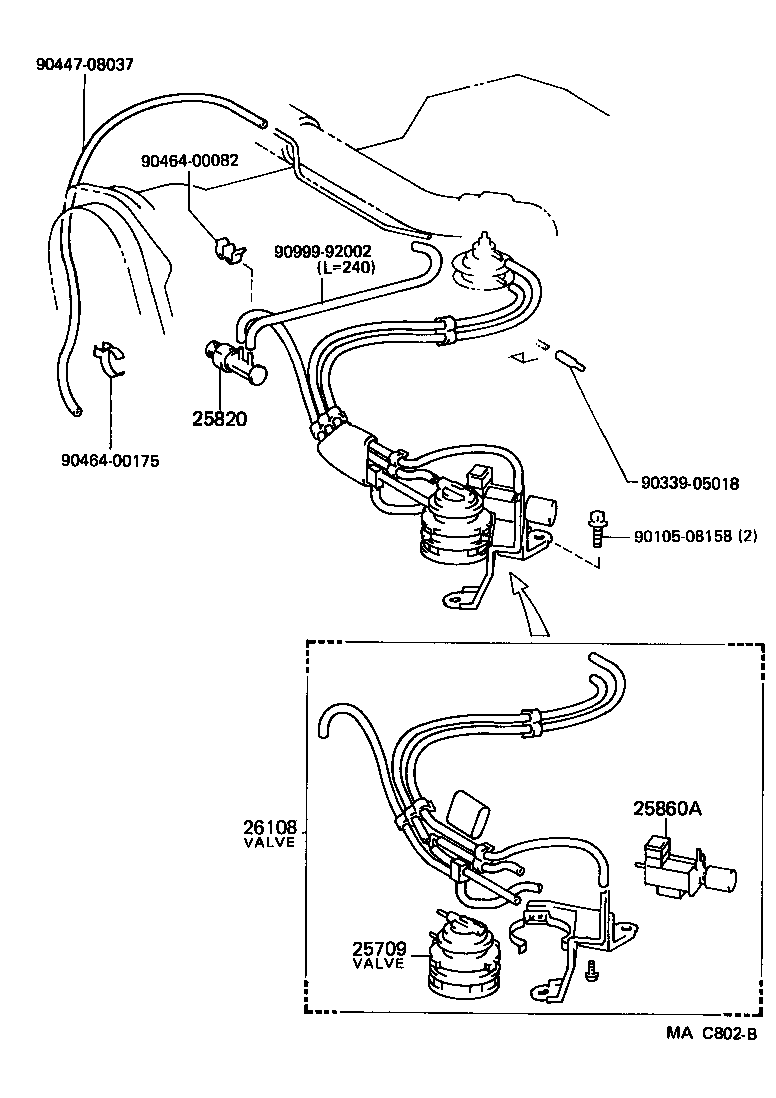

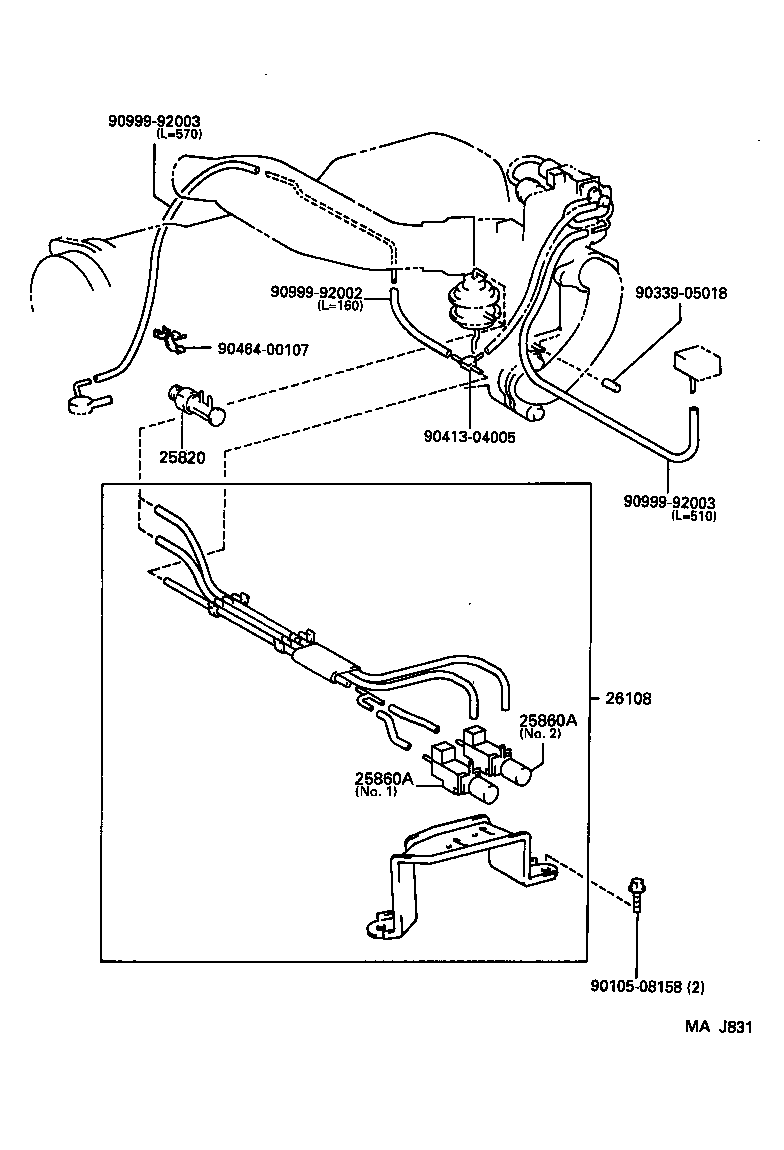

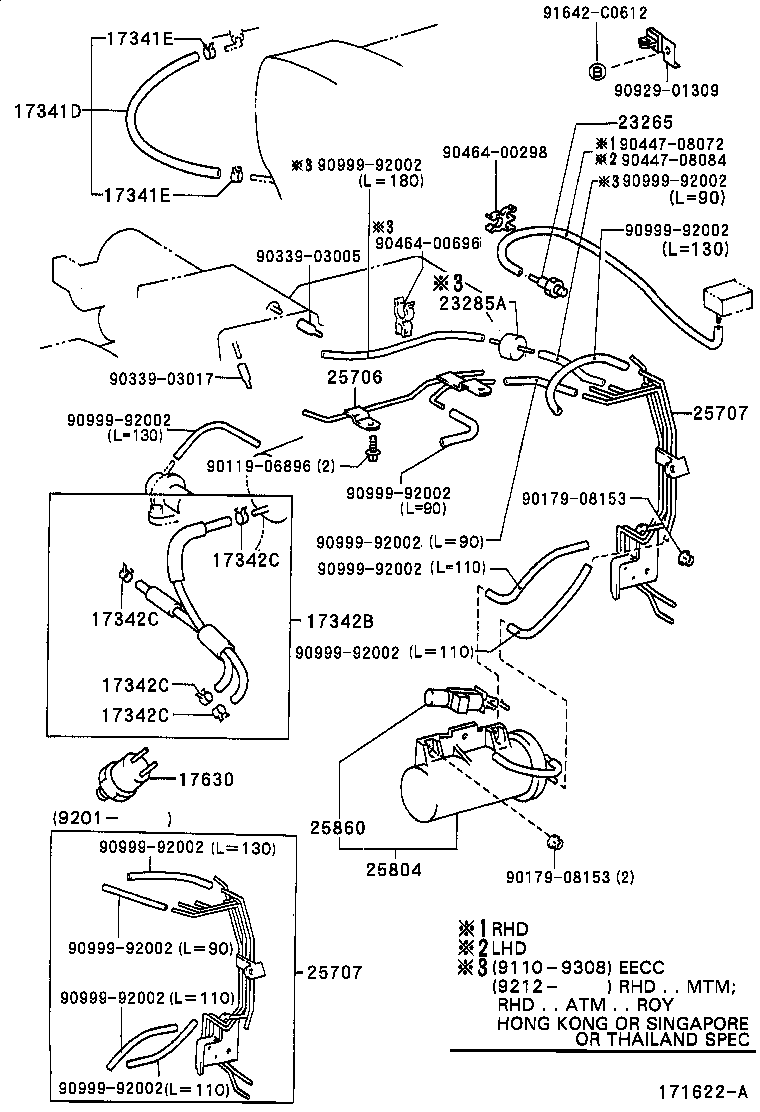

Figure 170021 170021 1991-10 → — Figure MAF144B MAF144B 1991-10 → — Figure 171622A 171622A 1991-10 → — Figure MAC802B MAC802B 1991-10 → 1995-05 Figure MAC802B MAC802B 1995-05 → 1995-12 Figure MAJ831 MAJ831 1995-05 → 1995-12 Figure MAF139 MAF139 1991-10 → 1995-12

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25804 Valve Set, Vacuum Control
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
26108 Valve Set, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
