Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

48 part groups · 7 illustrations

Illustrations

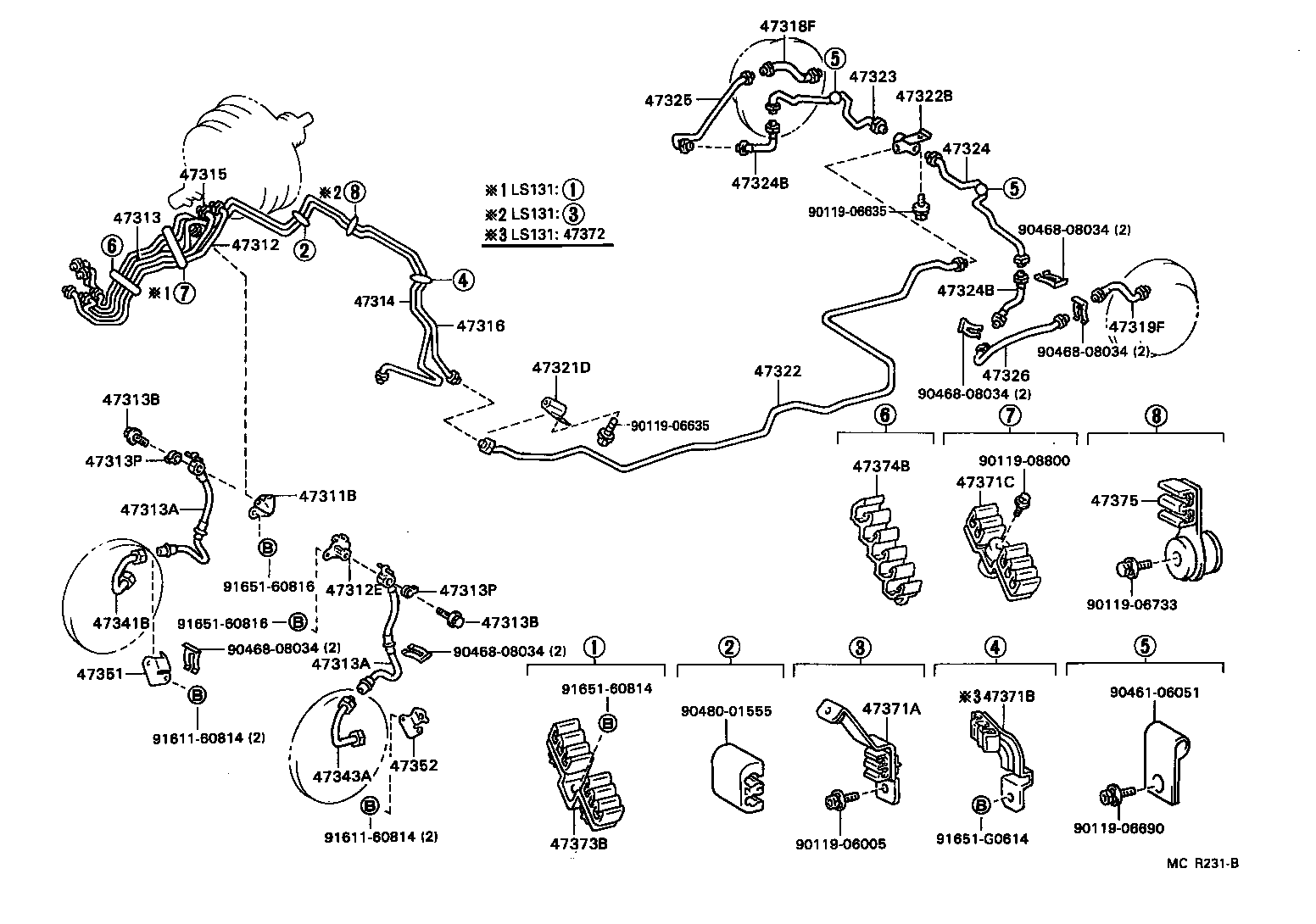

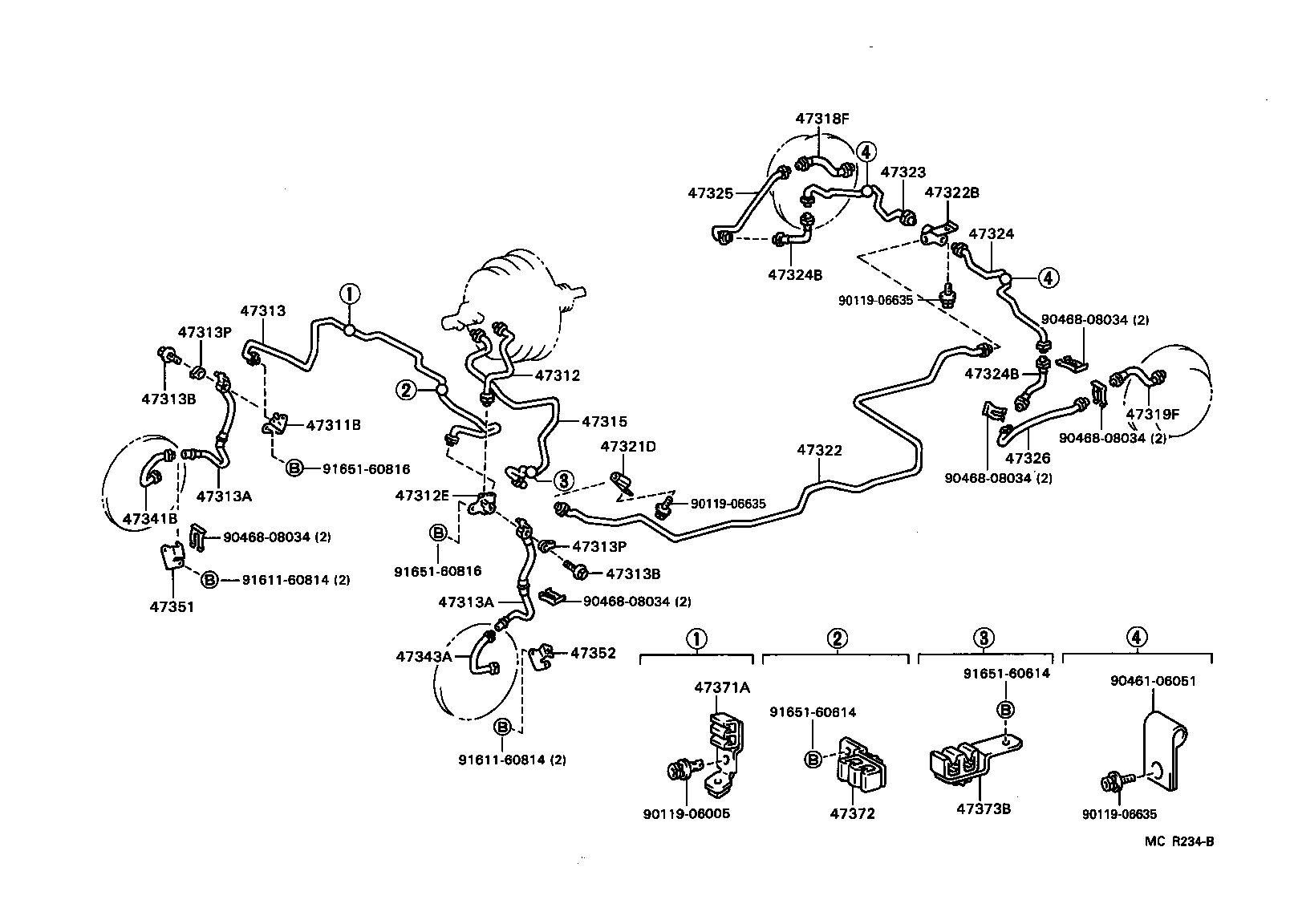

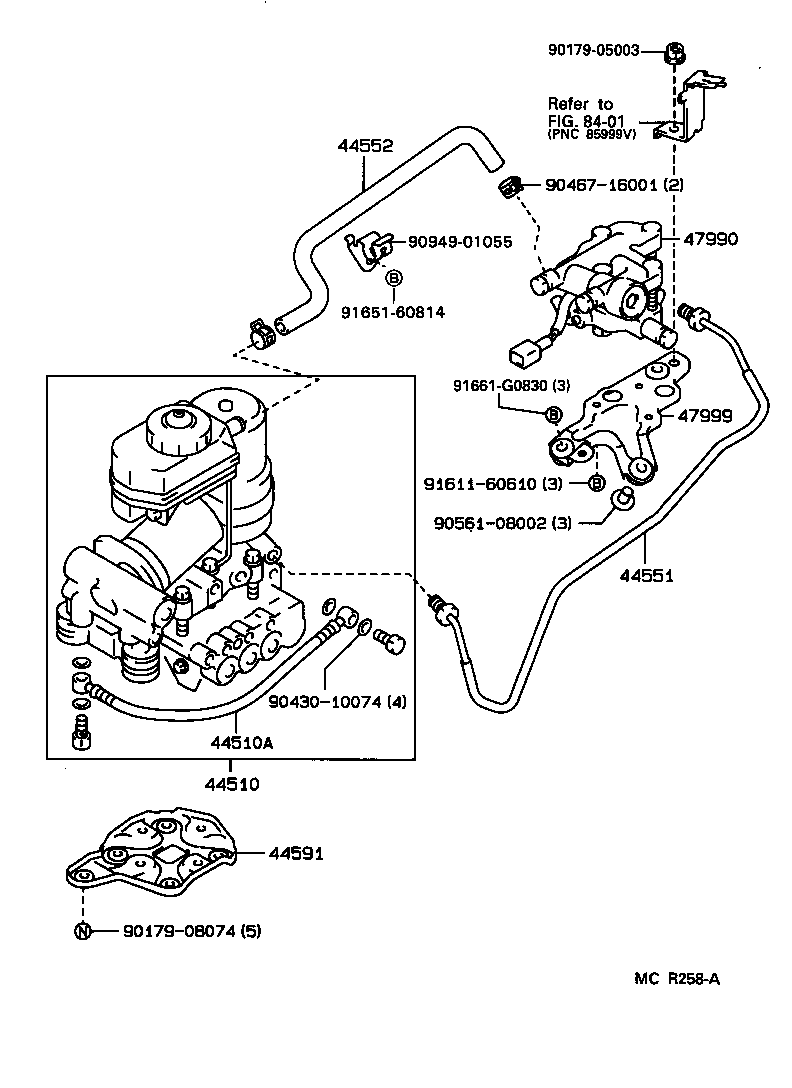

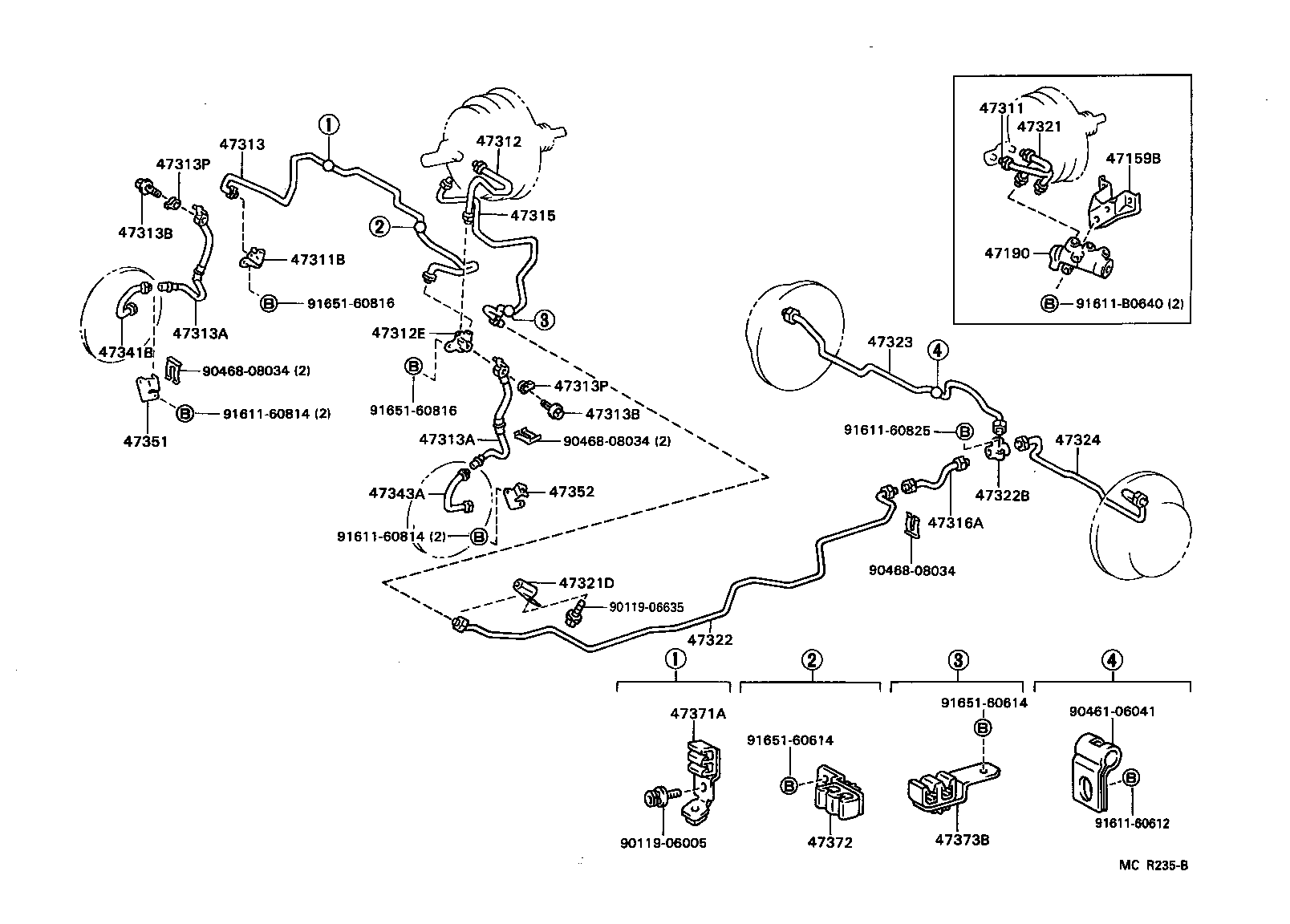

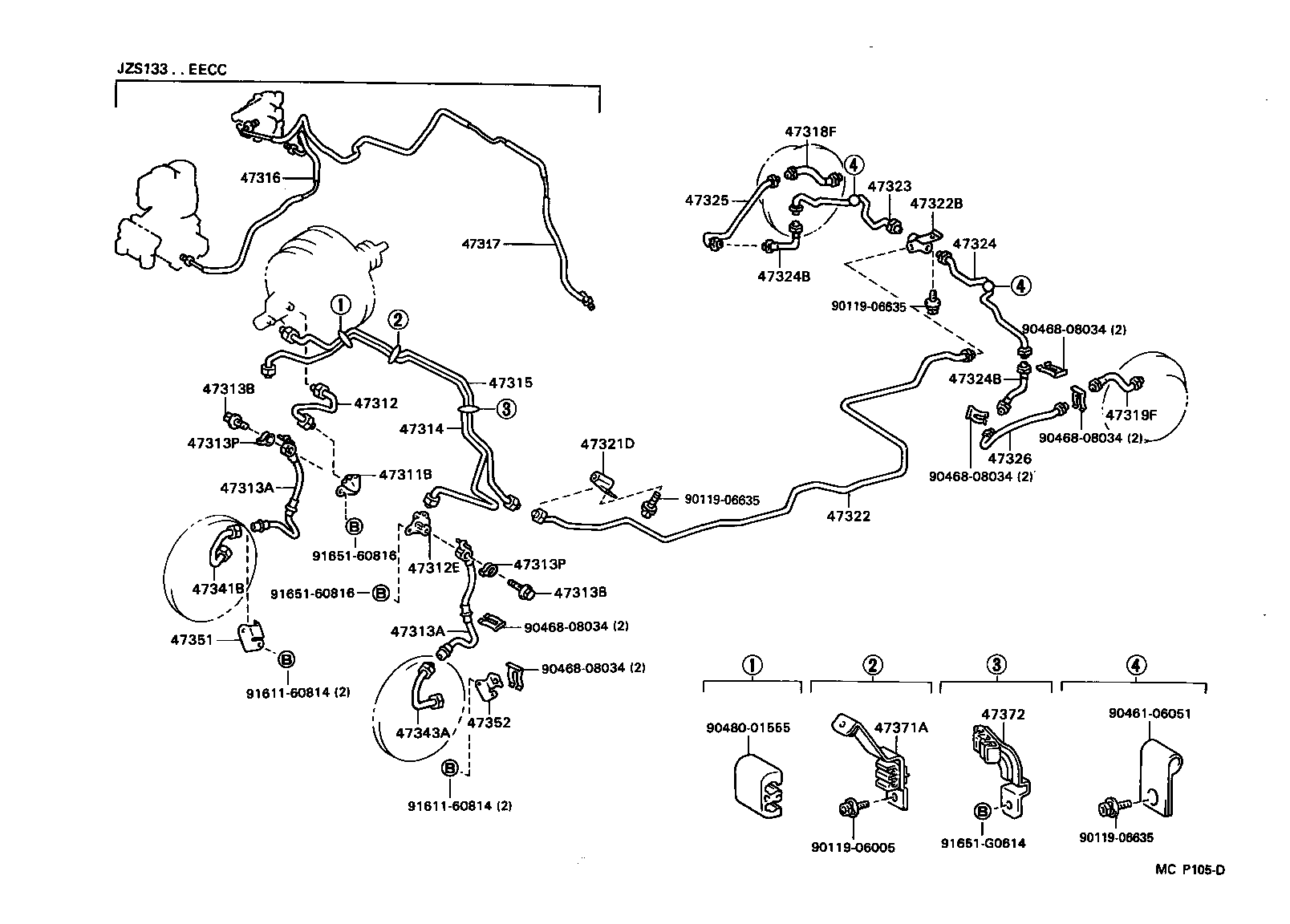

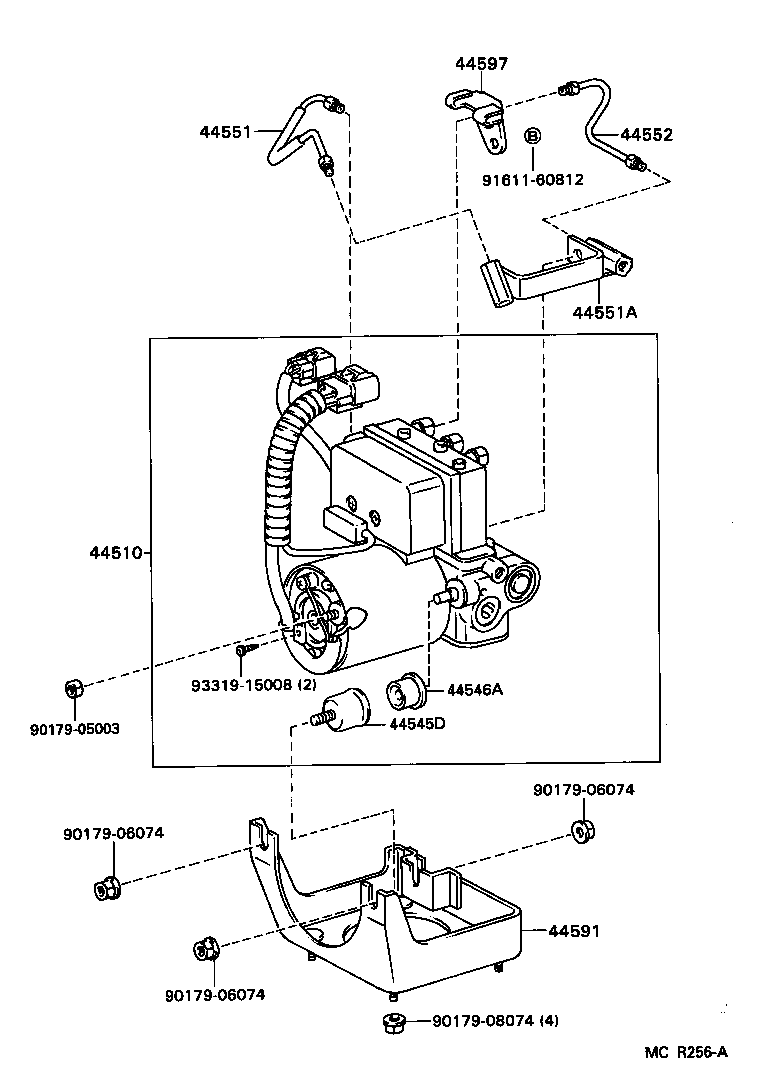

Figure MCR228C MCR228C 1991-10 → 1995-12 Figure MCP105D MCP105D 1991-10 → — Figure MCR235B MCR235B 1991-10 → 1995-12 Figure MCR234B MCR234B 1991-10 → — Figure MCR231B MCR231B 1991-10 → 1995-08 Figure MCR258A MCR258A 1991-10 → 1993-08 Figure MCR256A MCR256A 1993-08 → 1995-08

Part groups

PNCDescription
44510 Actuator Assy, Brake
44510A Hose, Pressure
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44591 Bracket, Brake Actuator, NO.1
44597 Clamp, Brake Actuator Connector, NO.1
47159B Bracket, Proportioning & By-pass Valve
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47324B Hose, Flexible(FOR REAR BRAKE TUBE, NO.2)
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47990 Actuator Assy, Brake Traction
47999 Bracket, Brake Traction Actuator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
