Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Mounting

14 part groups · 2 illustrations

Illustrations

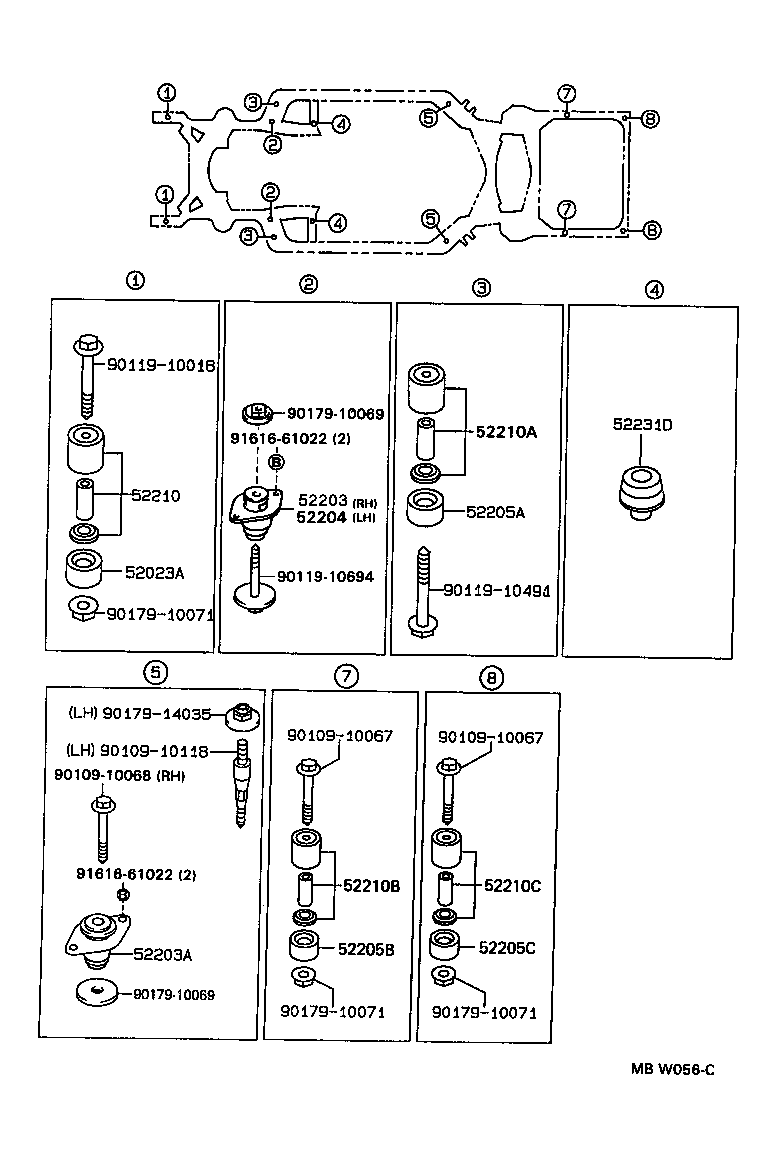

Figure MBW055C MBW055C 1991-10 → — Figure MBW056C MBW056C 1991-10 → —

Part groups

PNCDescription
52023A Cushion Sub-assy, Body Mounting, Rear Lower
52203 Cushion Sub-assy, Rear Frame
52203A Cushion Sub-assy, Body Mounting, Rear Upper
52203B Cushion Sub-assy, Body Mounting, Rear Upper
52204 Cushion Sub-assy, Body Mounting, Lower
52204A Cushion Sub-assy, Body Mounting, Rear Lower
52205A Cushion Sub-assy, Body Mounting, Lower
52205B Cushion Sub-assy, Body Mounting, Lower
52205C Cushion Sub-assy, Body Mounting, Lower
52210 Cushion Assy, Body Mounting, Upper
52210A Cushion Assy, Body Mounting, Upper
52210B Cushion Assy, Body Mounting, Upper
52210C Cushion Assy, Body Mounting, Upper
52231D Cushion, Body Mounting, Rear Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
