Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01

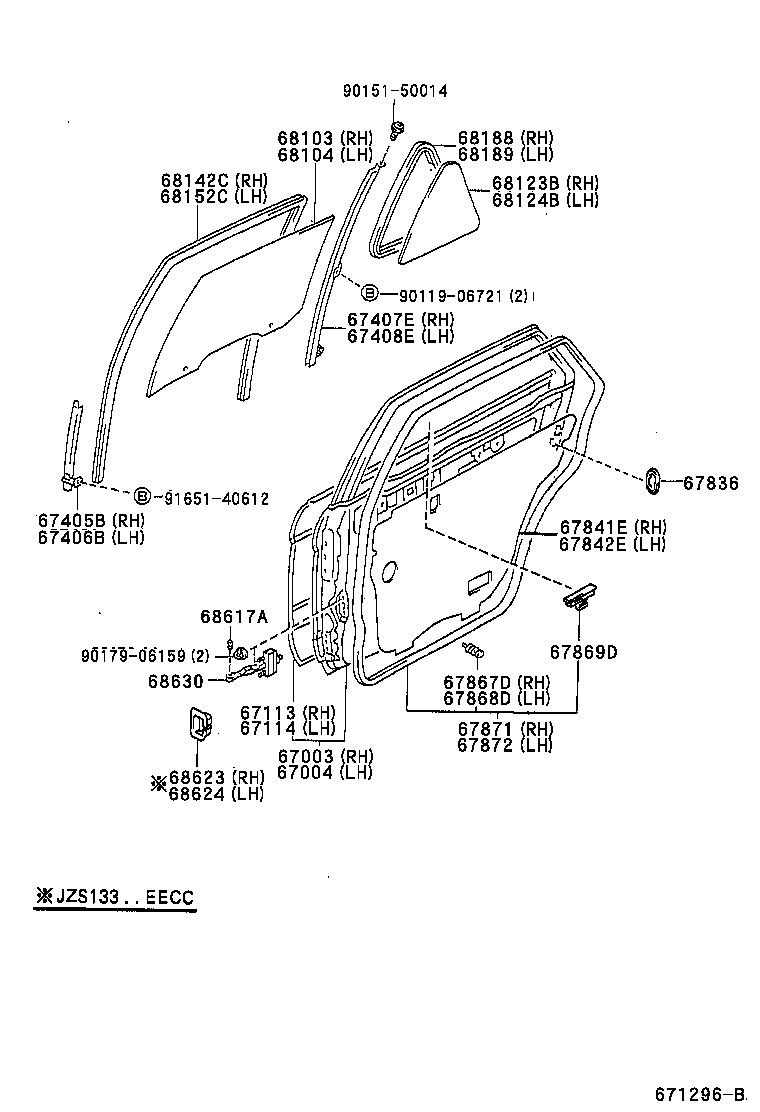

Rear Door Panel & Glass

38 part groups · 2 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67004	Panel Sub-assy, Rear Door, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67405B	Guide Sub-assy, Rear Door Window, Front RH
67406B	Guide Sub-assy, Rear Door Window, Front LH
67407E	Bar Sub-assy, Rear Door Window Division, RH
67408E	Bar Sub-assy, Rear Door Window Division, LH
67603	Board Sub-assy, Rear Door Trim, RH
67603D	Retainer, Rear Door Trim, RH
67604	Board Sub-assy, Rear Door Trim, LH
67604D	Retainer, Rear Door Trim, LH
67653A	Grille, Speaker Rear Door, RH
67654A	Grille, Speaker Rear Door, LH
67785G	Holder, Rear Door Lock Control Knob, RH
67785H	Holder, Rear Door Lock Control Knob, LH
67836	Cover, Rear Door Lock Child Protection, RH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67869D	Clip, Door Weatherstrip
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68123B	Glass, Rear Door Quarter Window, RH
68124B	Glass, Rear Door Quarter Window, LH
68142C	Run, Rear Door Glass, RH
68152C	Run, Rear Door Glass, LH
68188	Weatherstrip, Rear Door Quarter Window, RH
68189	Weatherstrip, Rear Door Quarter Window, LH
68190	Weatherstrip Assy, Rear Door Glass, Inner
68240A	Weatherstrip Assy, Rear Door Glass, Inner LH
68617A	Pin, Rear Door Check
68623	Cover, Door Check, RH
68624	Cover, Door Check, LH
68630	Check Assy, Rear Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
