Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

131 part groups · 6 illustrations

Illustrations

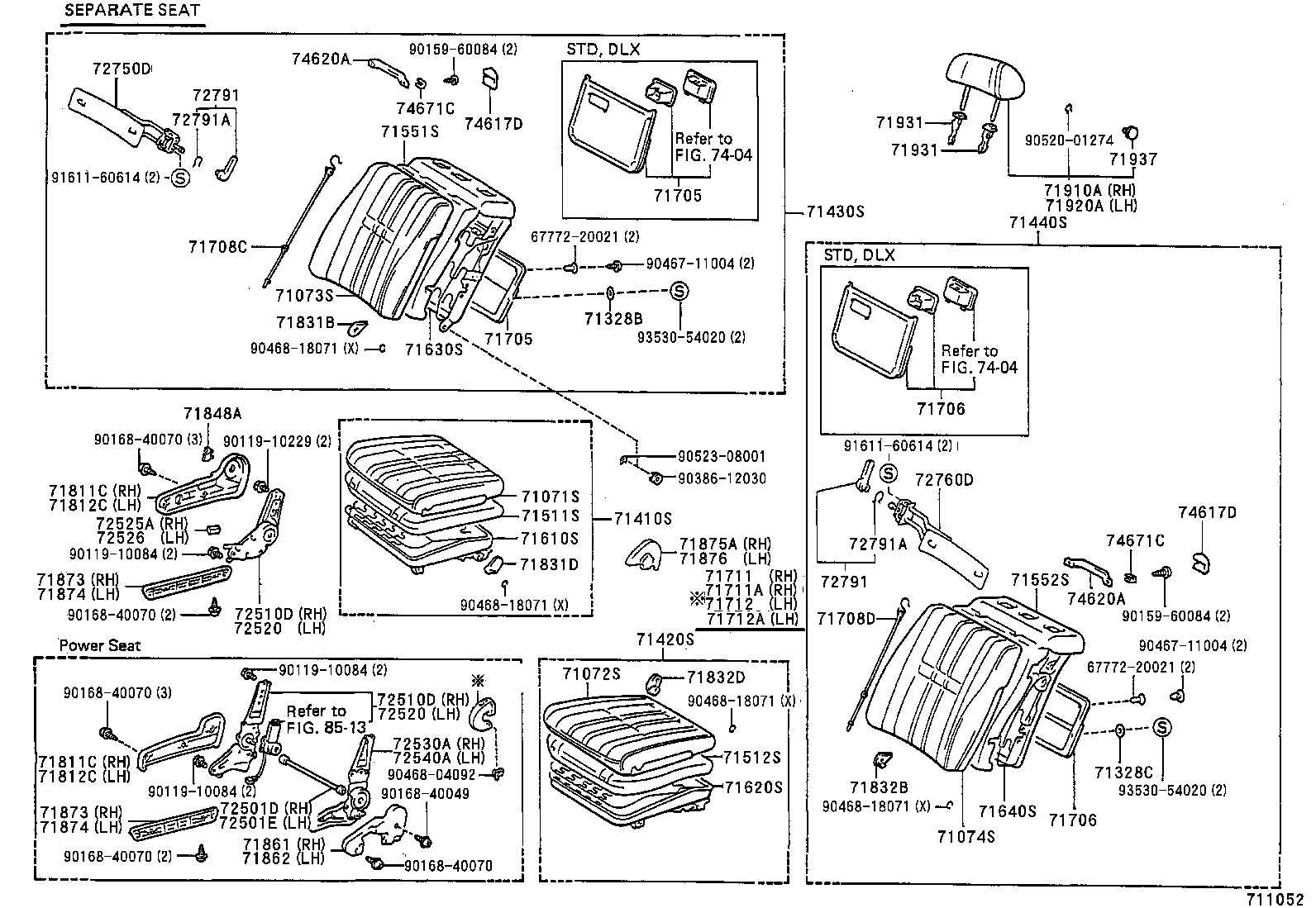

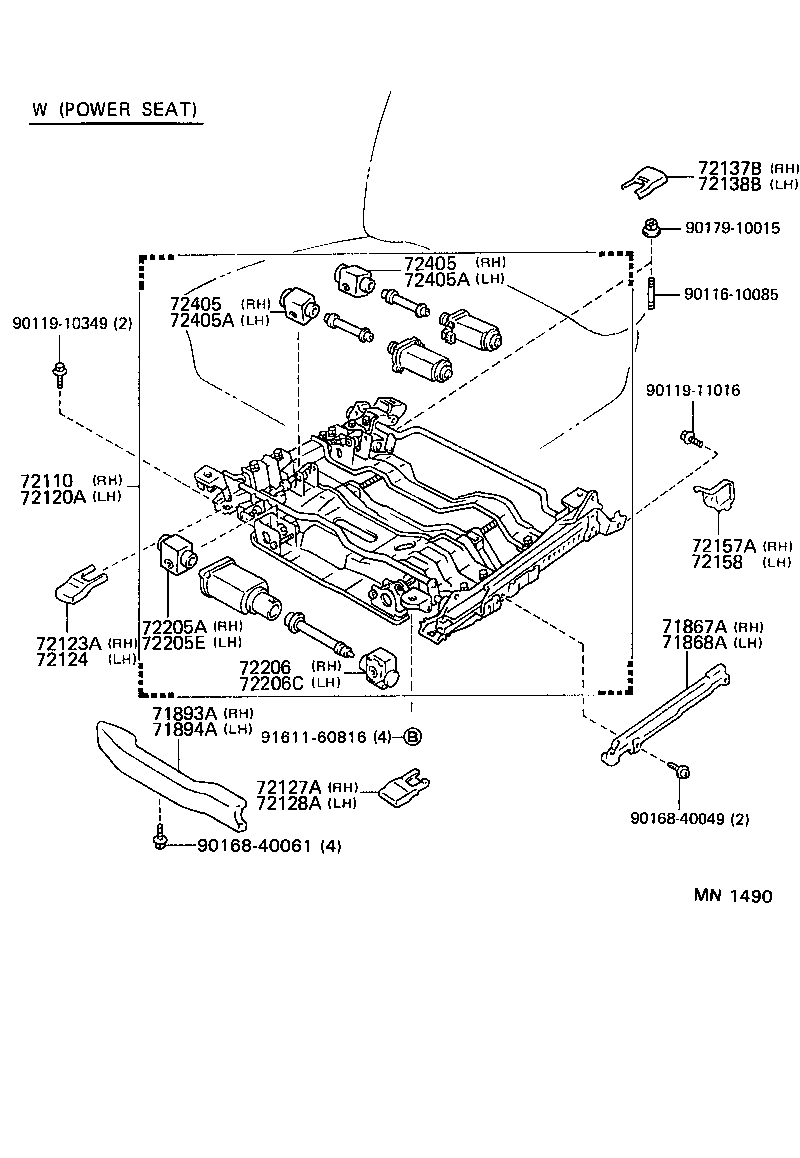

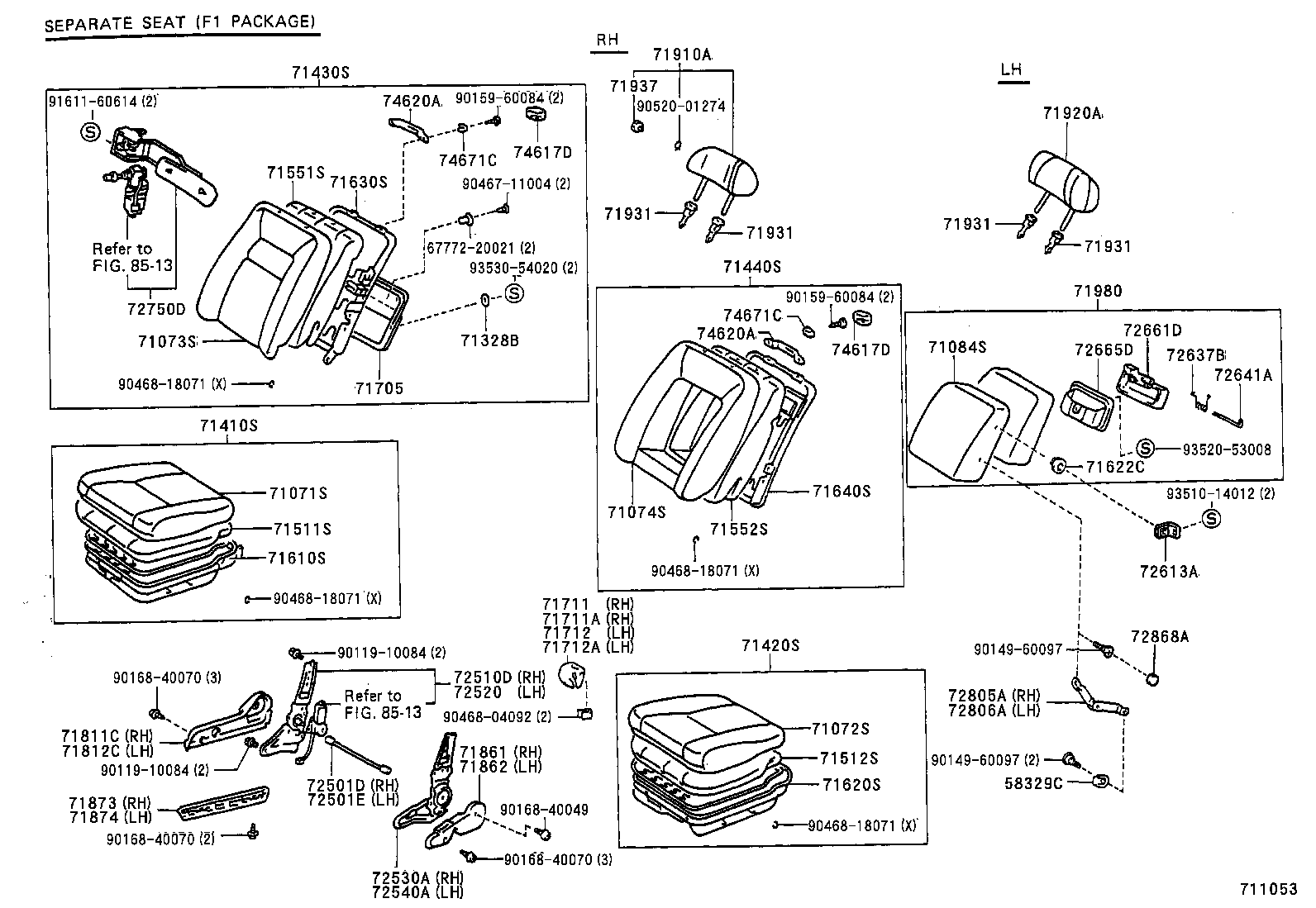

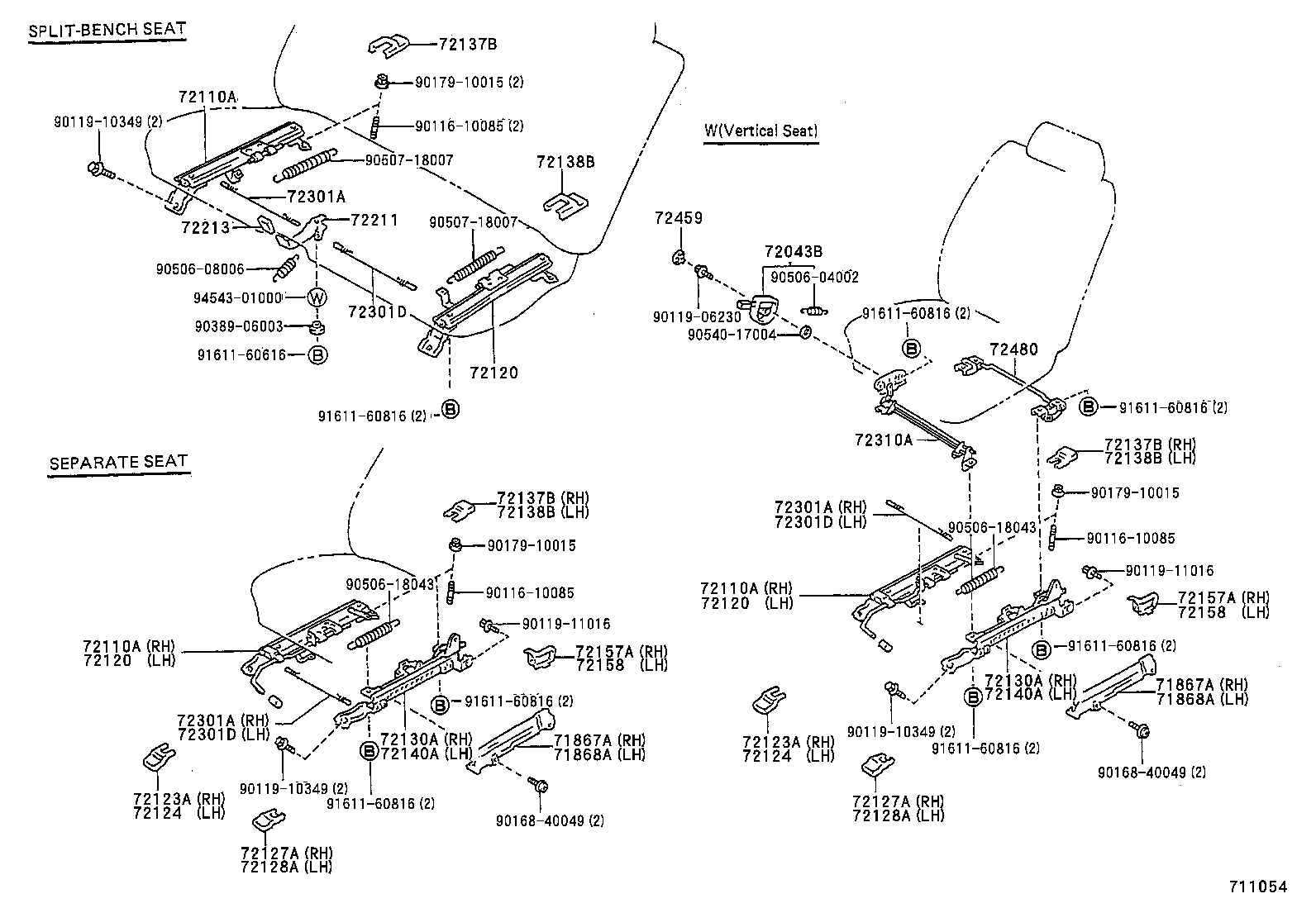

Figure 711051 711051 1991-10 → — Figure 711052 711052 1991-10 → — Figure 711053 711053 1991-10 → — Figure 711054 711054 1991-10 → — Figure MN1490 MN1490 1991-10 → — Figure MN1737B MN1737B 1991-12 → —

Part groups

PNCDescription
58329C Spacer, Footrest
71071P Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073P Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074P Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71084S Cover Sub-assy, Front Seatback, Inside LH
71328B Washer, Front Seatback Pocket Setting, RH
71328C Washer, Front Seatback Pocket Setting, LH
71410P Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430P Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440P Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511P Pad, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71515 Pad, Front Seat Cushion, D
71516 Pad, Front Seat Cushion, E
71521A Pad,Front Seat Cushion Silencer
71521B Pad,Front Seat Cushion Silencer
71522A Pad, Front Seat Cushion Silencer, B
71522B Pad, Front Seat Cushion Silencer, B
71523A Pad, Front Seat Cushion Silencer, C
71524 Pad, Front Seat Cushion Silencer, D
71524A Pad, Front Seat Cushion Silencer, D
71551P Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552P Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71567 Pad, Front Seatback Safety
71571 Pad, Front Seatback Silencer, A
71572 Pad, Front Seatback Silencer, B
71587 Protector, Front Seatback Edge
71610P Spring Assy, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71622C Bush, Front Seatback Protector Shaft
71630P Spring Assy, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640P Spring Assy, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71708C Strap Sub-assy, Seat Cover, RH
71708D Strap Sub-assy, Seat Cover, LH
71711 Leather, For Seat, A RH
71711A Leather, For Seat, A LH
71712 Leather, For Seat, B RH
71712A Leather, For Seat, B LH
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71831A Cover, Front Seat Hinge
71831B Cover, Front Seat Hinge, RH
71831D Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71832D Cover, Front Seat Hinge, LH
71848A Cap, Seat Adjuster Cover, RH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71893A Shield, Power Adjuster, Front RH
71894A Shield, Power Adjuster, Front LH
71910A Headrest Assy, Front Seat
71920A Headrest Assy, Front Seat, LH
71931 Support, Front Seat Headrest
71937 Handle, Front Seat Headrest Regulator
71980 Footrest Assy, Front Seat, NO.1
72043B Lever Sub-assy, Seat Lifter, RH
72110 Regulator Assy, Power Seat, RH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72120A Regulator Assy, Power Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72205A Housing Sub-assy, Power Seat, NO.1
72205E Housing Sub-assy, Power Seat, NO.1
72206 Housing Sub-assy, Power Seat, NO.2
72206C Housing Sub-assy, Power Seat, NO.2
72211 Handle, Seat Track Adjusting
72213 Knob, Seat Track Adjusting Handle
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72310A Adjuster Assy, Front Seat Vertical
72405 Housing Sub-assy, Front Seat Vertical
72405A Housing Sub-assy, Front Seat Vertical
72459 Cap, Vertical Seat Adjuster Knob
72480 Adjuster Assy, Front Seat Vertical, NO.2 RH
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72510D Adjuster Assy, Reclining Seat, Outer RH
72520 Adjuster Assy, Reclining Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72530A Adjuster Assy, Reclining Seat, Inner RH
72540A Adjuster Assy, Reclining Seat, Inner LH
72613A Striker, Front Seat Lock
72637B Spring, Front Seatback Lock, RH
72641A Pin, Front Seatback Lock
72661D Lever, Front Seatback Lock
72665D Cover, Front Seatback Lock
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72791A Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
72805A Link Sub-assy, Front Seat Footrest, RH
72806A Link Sub-assy, Front Seat Footrest, LH
72868A Cover, Center Armrest Hinge
74617D Plug, Assist Grip
74620A Grip Assy, Assist, Rear
74671C Support, Assist Grip
74841A Panel, Front Seatback Control
74843B Ornament, Front Seatback Control Panel
74849A Retainer, Front Seatback Control Panel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
