Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

25 part groups · 2 illustrations

Illustrations

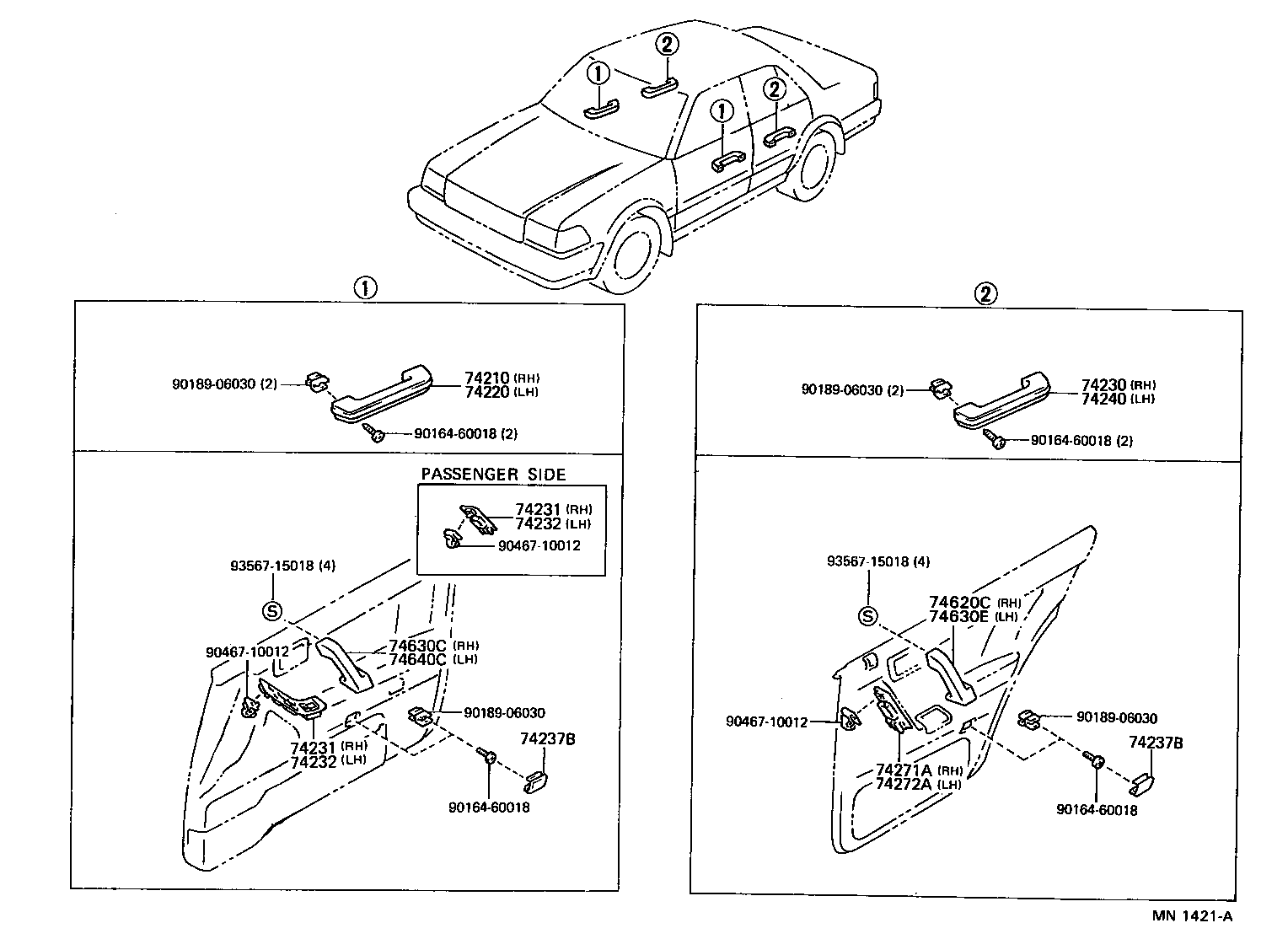

Figure MN1420A MN1420A 1991-10 → — Figure MN1421A MN1421A 1991-10 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74237B Cap, Door Armrest Base
74240 Armrest Assy, Rear, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74321A Visor, Front
74331 Case, Visor Arm, RH
74334 Case, Visor Arm, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74617A Plug, Assist Grip
74620C Grip Assy, Assist, Rear RH
74627 Plug, Rear Assist Grip
74630C Grip Assy, Door Assist, RH
74630E Grip Assy, Assist, Rear LH
74635 Holder, Card
74640C Grip Assy, Door Assist, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
