Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01

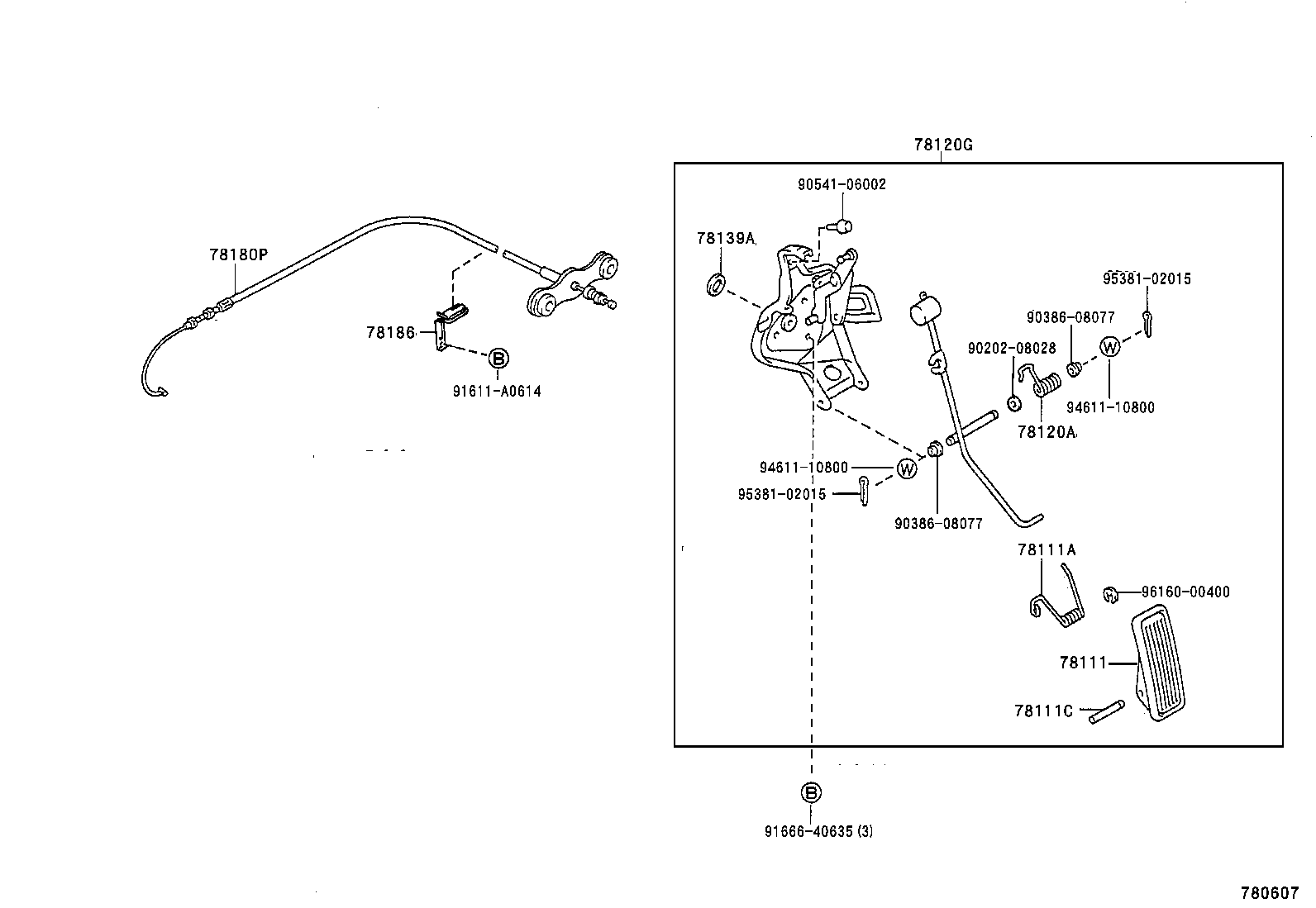

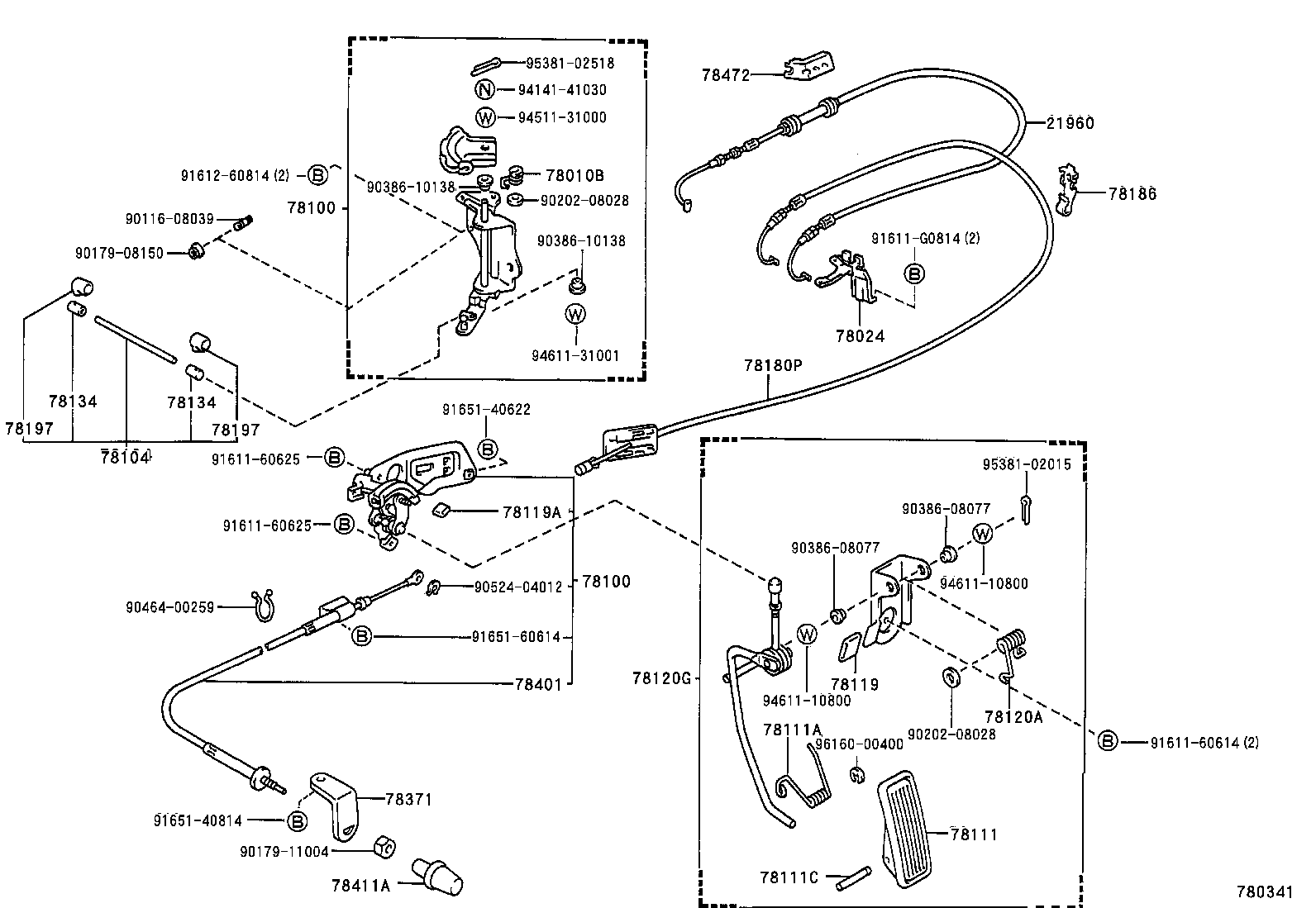

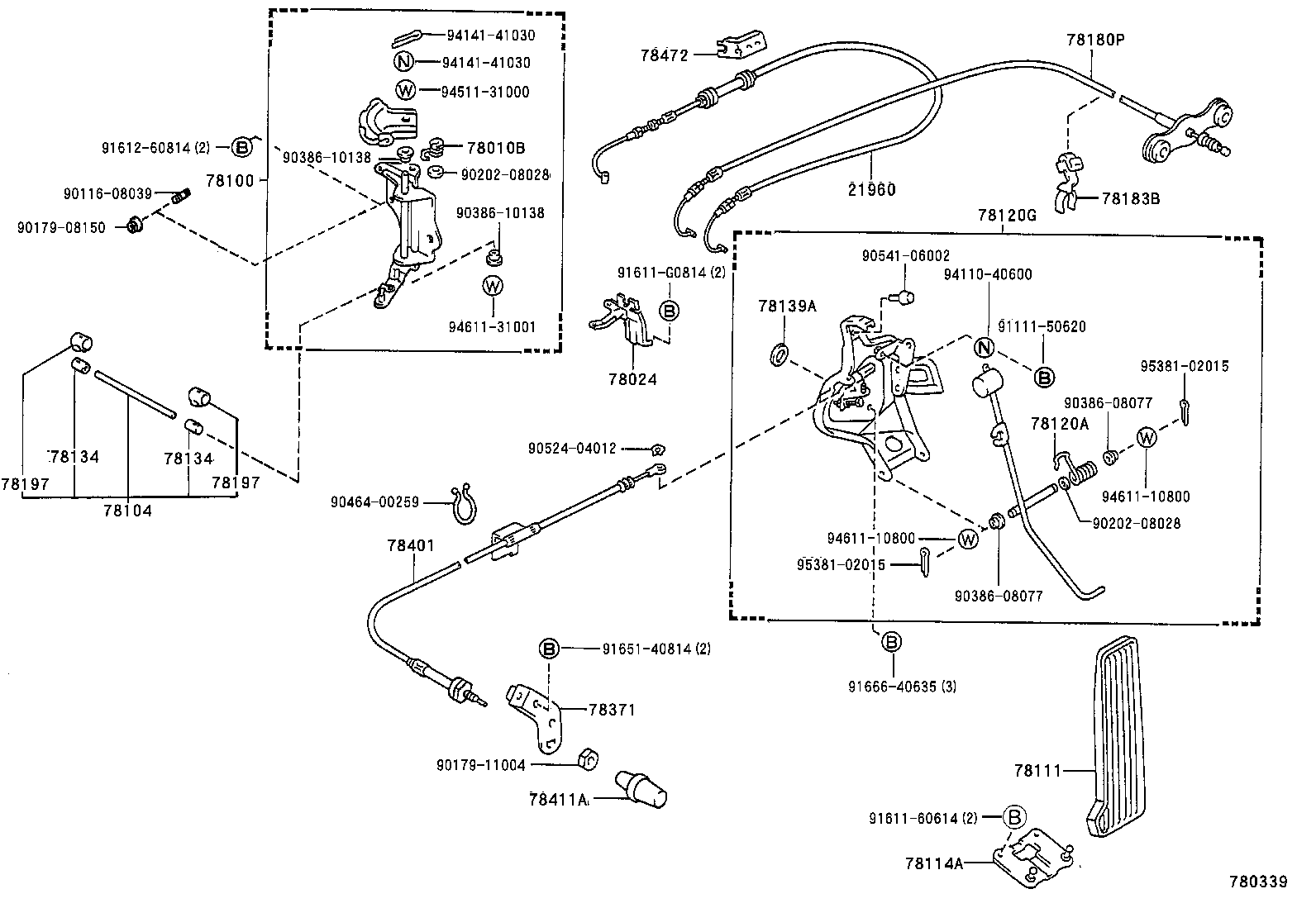

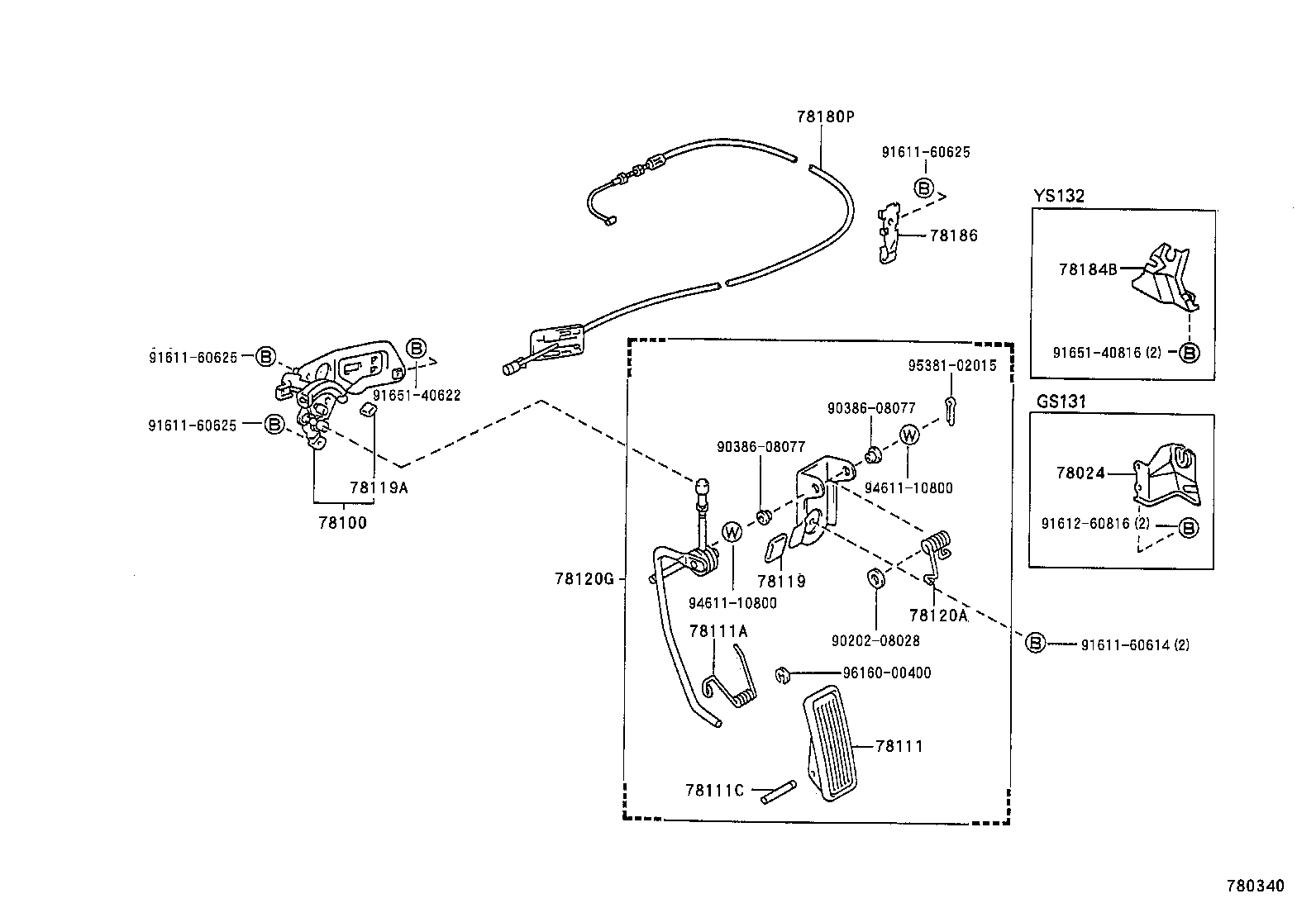

Accelerator Link
24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 21960 | Wire Assy, Accelerator Link |
| 78010B | Spring, Torsion (FOR ACCELERATOR LINK) |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78114A | Bracket, Accelerator Pedal Support |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78119A | Stopper, Accelerator Link |
| 78120A | Spring, Compression (FOR ACCELERATOR LINK ROD) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78134 | End, Accelerator Connecting Rod |
| 78139A | Seal, Accelerator Pedal Rod Bracket, NO.2 |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78197 | Clip, Accelerator Joint Ball |
| 78371 | Bracket, Choke Control Cable |
| 78401 | Cable Sub-assy, Throttle Control |
| 78411A | Knob, Throttle Control Cable |
| 78472 | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
