Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 3 illustrations

Illustrations

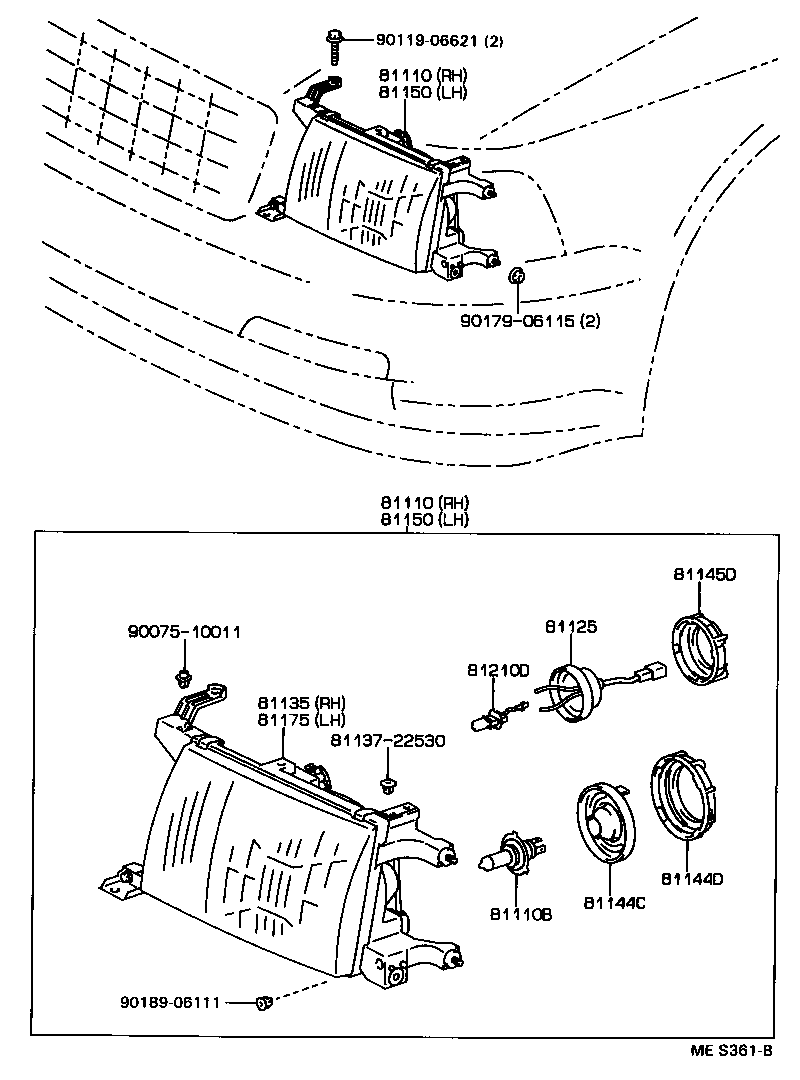

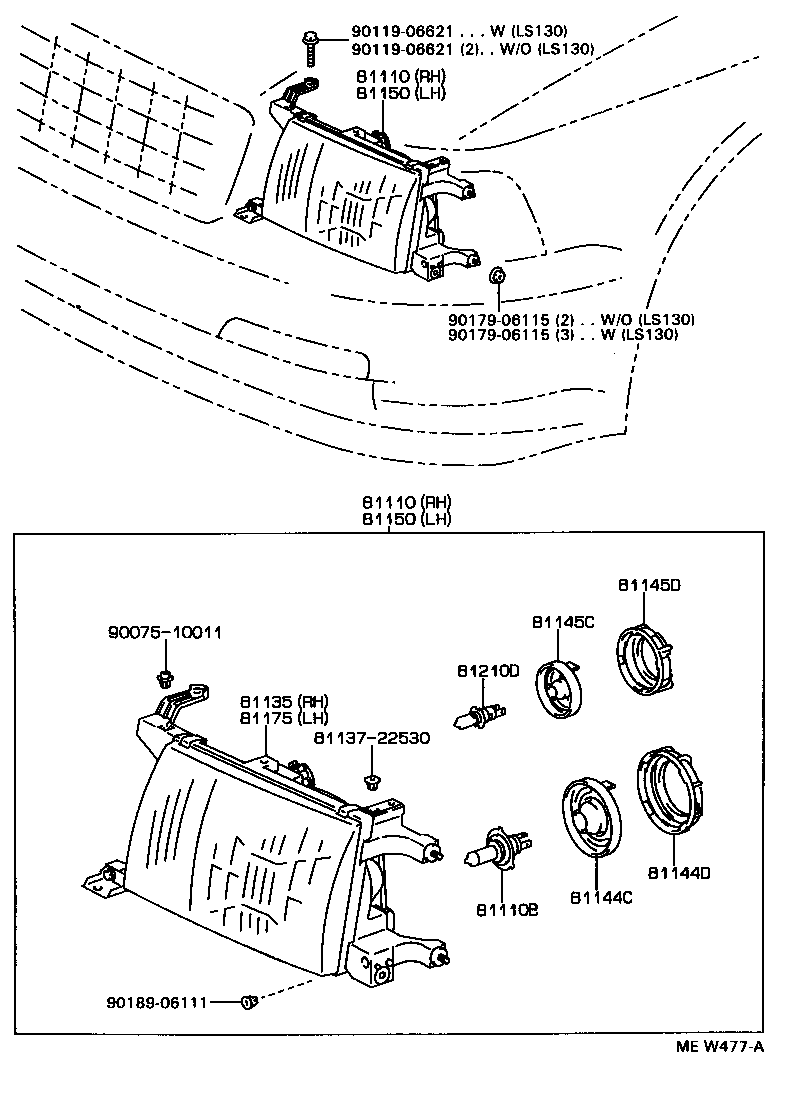

Figure MEW476A MEW476A 1991-10 → — Figure MEW477A MEW477A 1991-10 → — Figure MES361B MES361B 1991-10 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81125 Cord, Headlamp
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81145C Cover, Headlamp Socket, NO.2
81145D Cap, Headlamp Locking NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
