Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

7 part groups · 2 illustrations

Illustrations

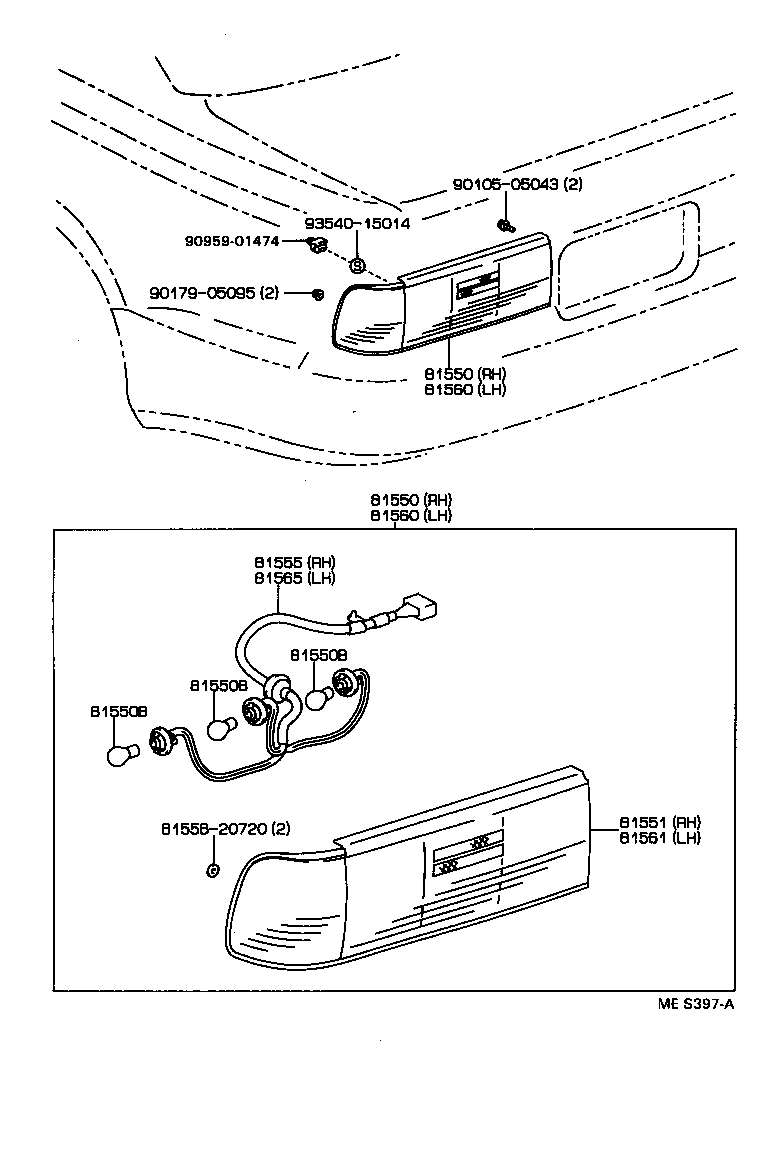

Figure MES396B MES396B 1991-10 → — Figure MES397A MES397A 1991-10 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
