Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01
Interior Lamp

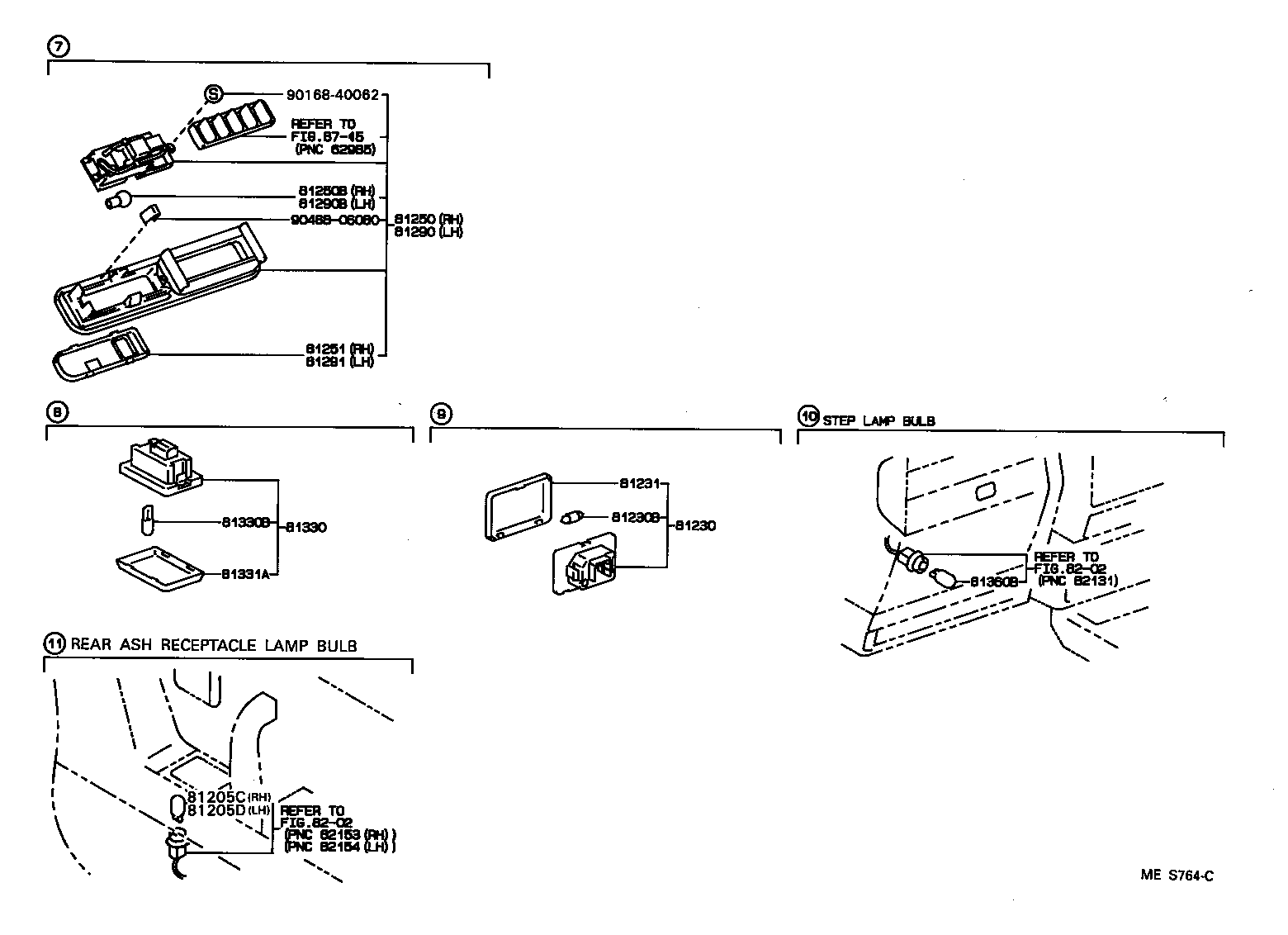

33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205C | Bulb, Ash Receptacle Lamp, Rear RH |
| 81205D | Bulb, Ash Receptacle Lamp, Rear LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81251 | Lens, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81261B | Lens,Glove Box Lamp |
| 81280 | Lamp Assy, Engine Room |
| 81280B | Bulb, Engine Room Lamp |
| 81281 | Lens, Engine Room Lamp |
| 81282 | Packing, Engine Room Lamp Lens |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290B | Bulb, Room Lamp, NO.3 |
| 81291 | Lens, Room Lamp, NO.3(FOR REAR) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331A | Cover, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81341 | Lens, Vanity Lamp |
| 81360B | Bulb, Step OR Spot Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
