Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

13 part groups · 3 illustrations

Illustrations

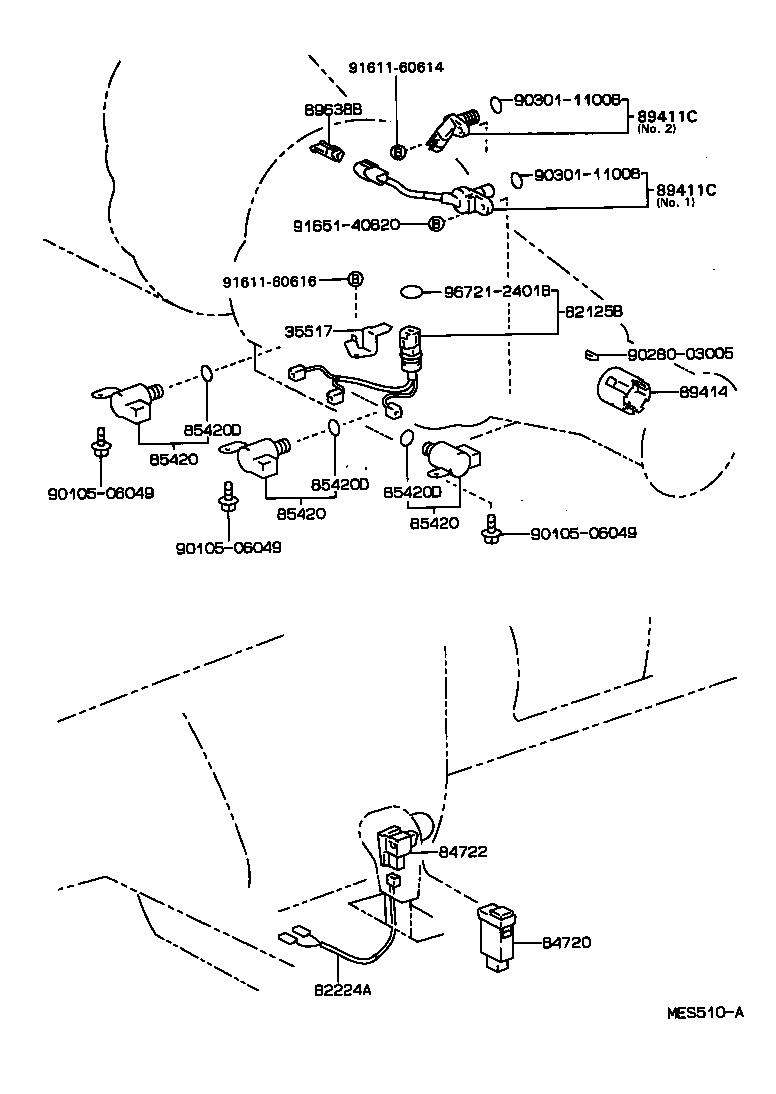

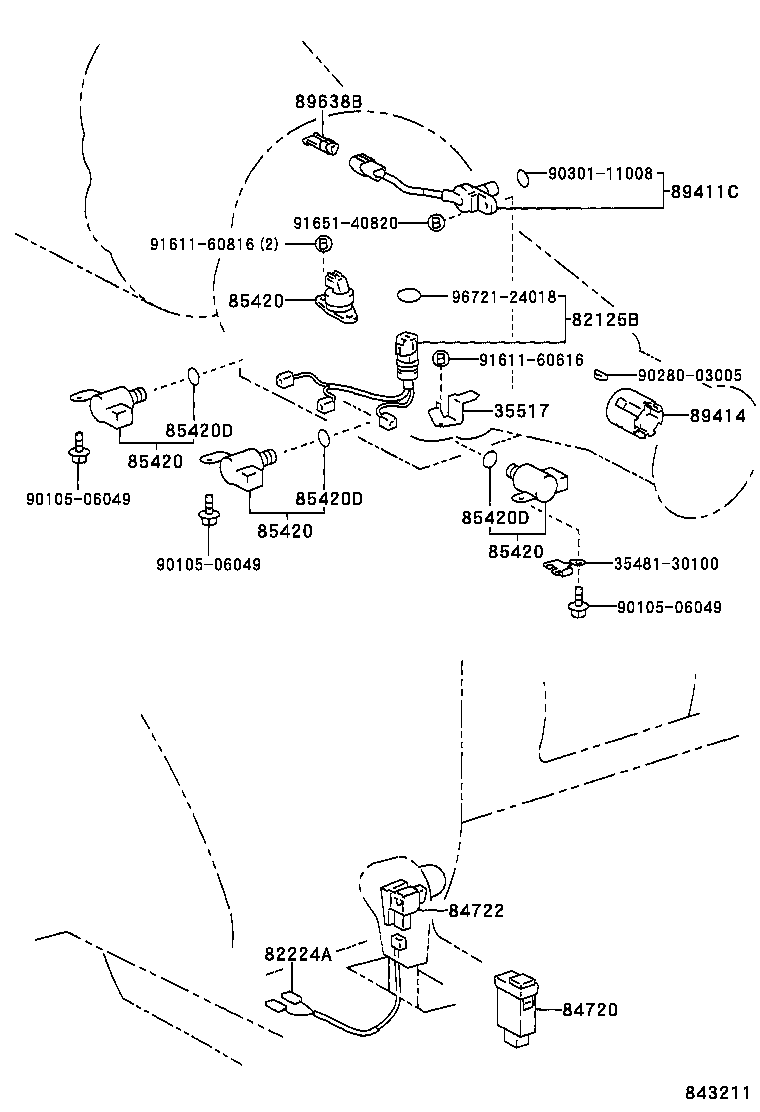

Figure MES508D MES508D 1991-10 → — Figure 843211 843211 1991-10 → — Figure MES510A MES510A 1991-10 → 1995-12

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
82224A Wire, Overdrive
84220A Switch Assy, Transmission Position Indicator
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89427A Switch, Temperature
89530A Computer Assy, Transmission Control
89638B Cap, Brake Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
