Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

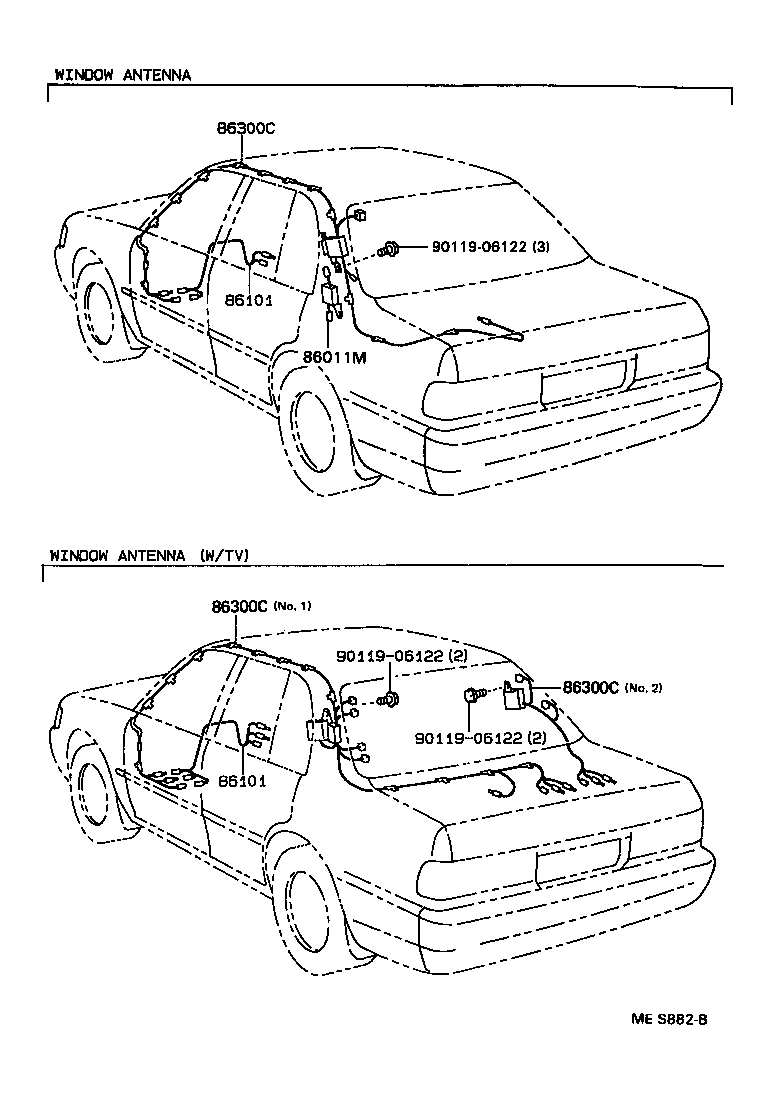

Figure MES786B MES786B 1991-10 → — Figure MES882B MES882B 1991-10 → —

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86011M Filter, Noise
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86300C Antenna Assy, Amplifier, NO.2
86309 Pole Sub-assy, Pillar Antenna
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
