Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01
Telephone & Mayday
15 part groups · 3 illustrations

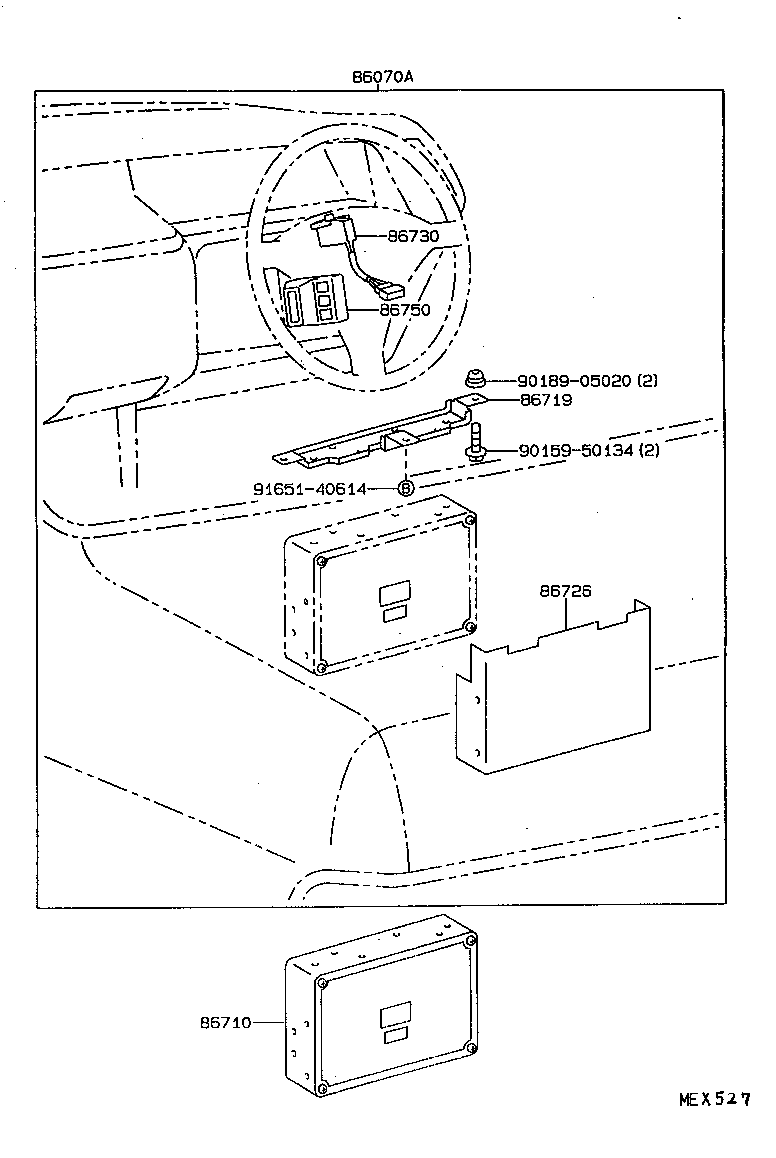

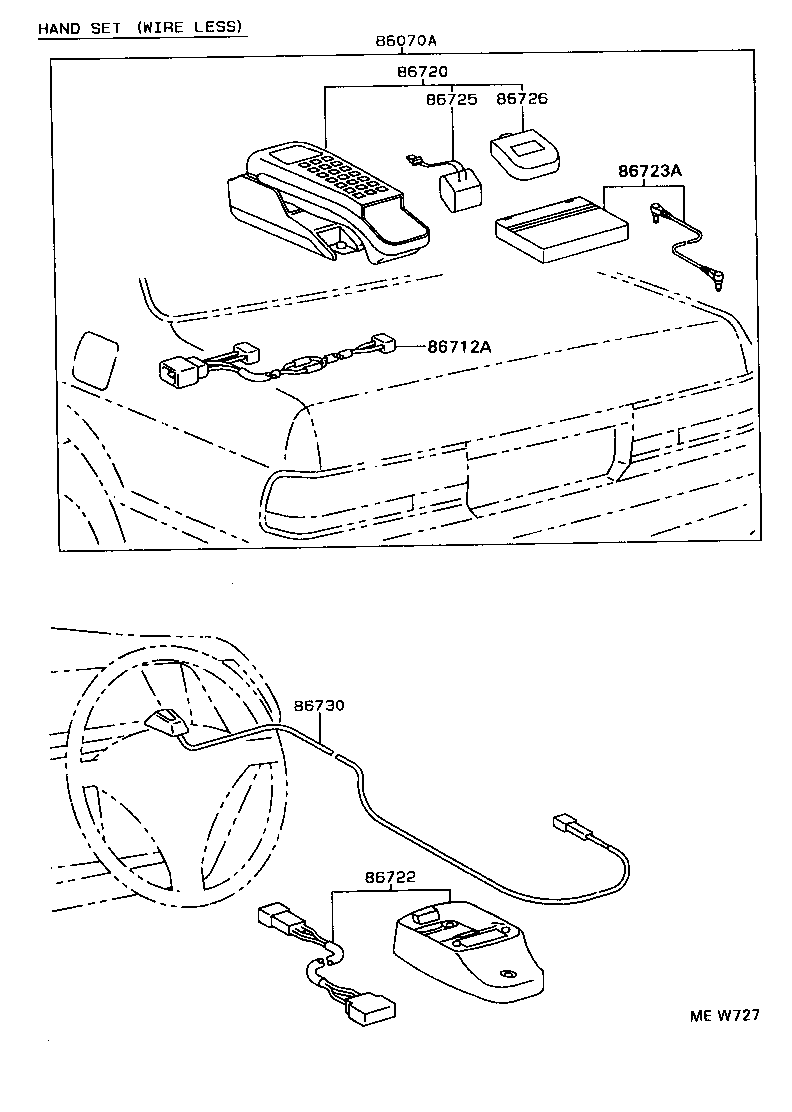

Part groups
| PNC | Description |
|---|---|
| 86011L | Filter, Noise |
| 86070A | Mobilephone & Accessory Assy (HANDSET) |
| 86710 | Computer Assy, Telephone |
| 86712 | Wire, Telephone |
| 86712A | Wire, Telephone |
| 86719 | Bracket, Telephone |
| 86720 | Mobilephone Assy |
| 86722 | Cradle, Mobilephone |
| 86723 | Wire, Mobilephone |
| 86723A | Wire, Mobilephone |
| 86725 | Battery, Mobilephone |
| 86726 | Cover, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86750 | Switch Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
