Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01
Heating & Air Conditioning - Heater Unit & Blower
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |

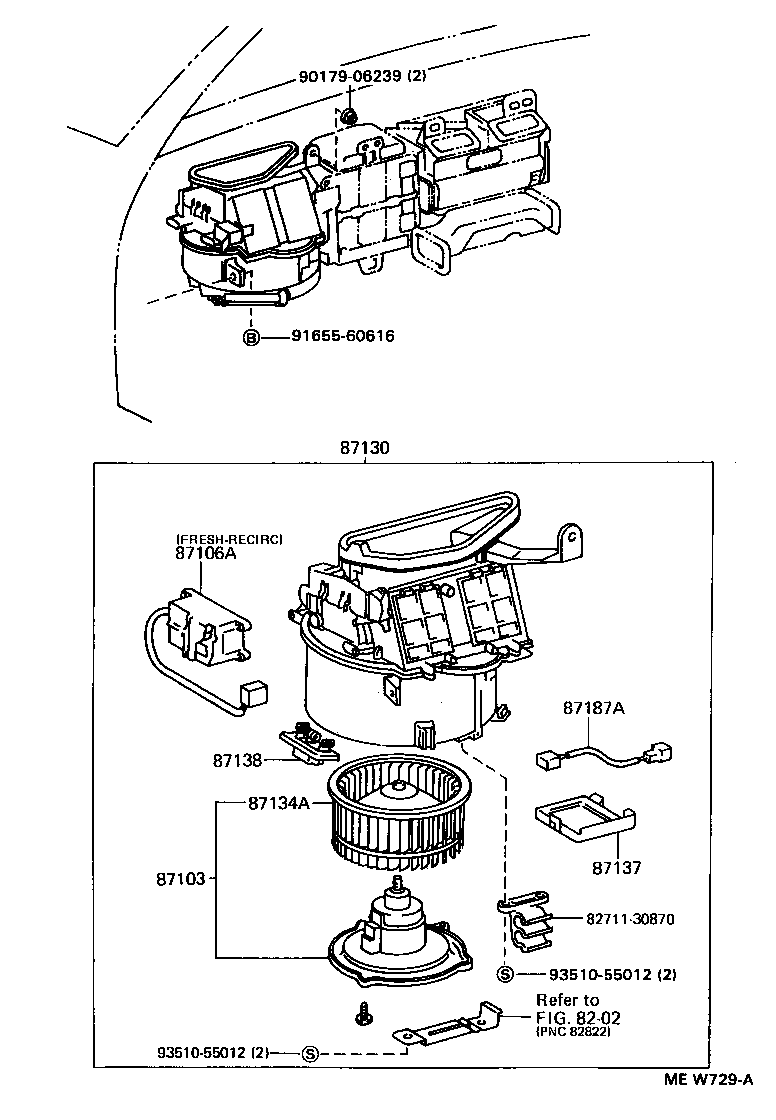

| 87130 | Blower Assy, Heater, Front |
| 87134A | Fan, Blower, NO.2 |
| 87137 | Cover, Heater Blower |
| 87138 | Resistor, Heater Blower |

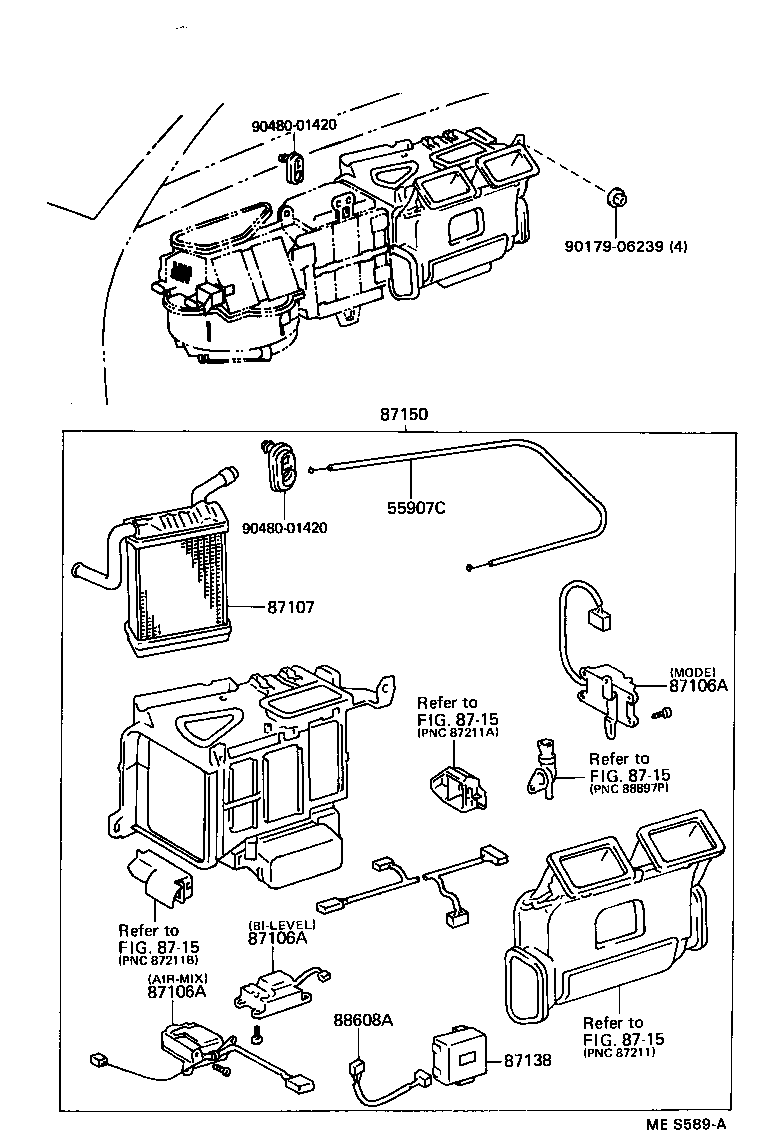

| 87150 | Radiator Assy, Heater |
| 87187A | Wire, Blower Motor Lead |
| 88608A | Harness Sub-assy, Wiring Air Conditioner, NO.2 |

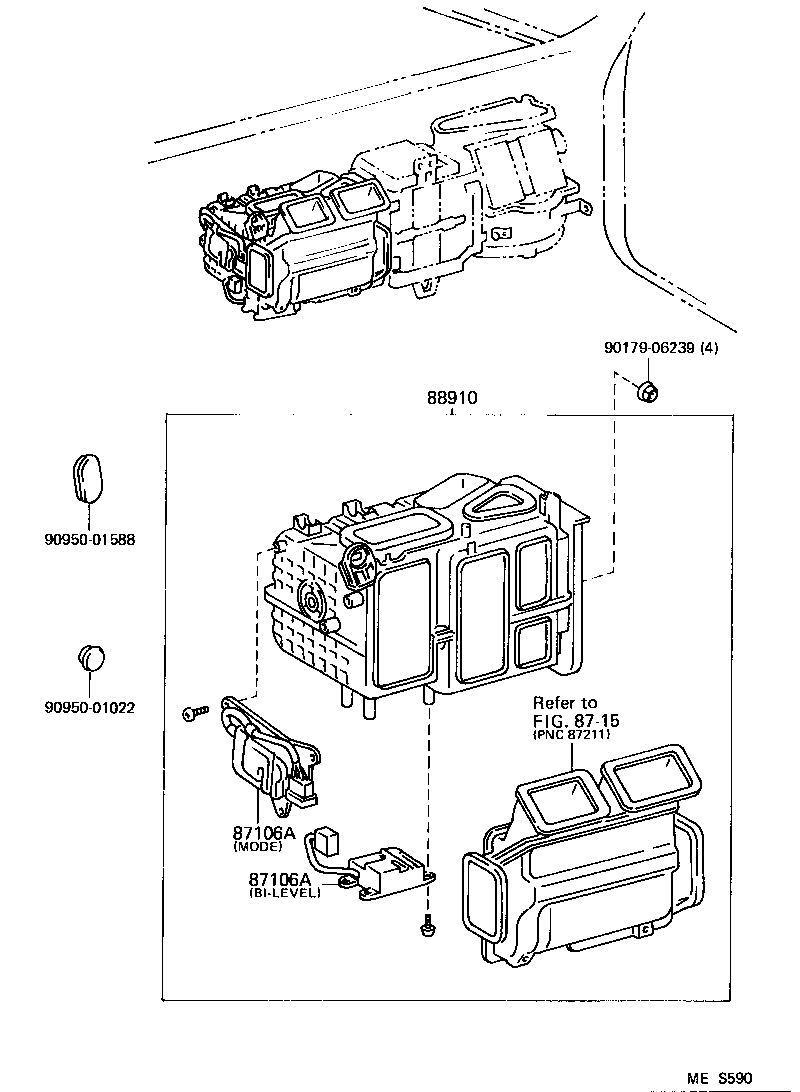

| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
