Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01

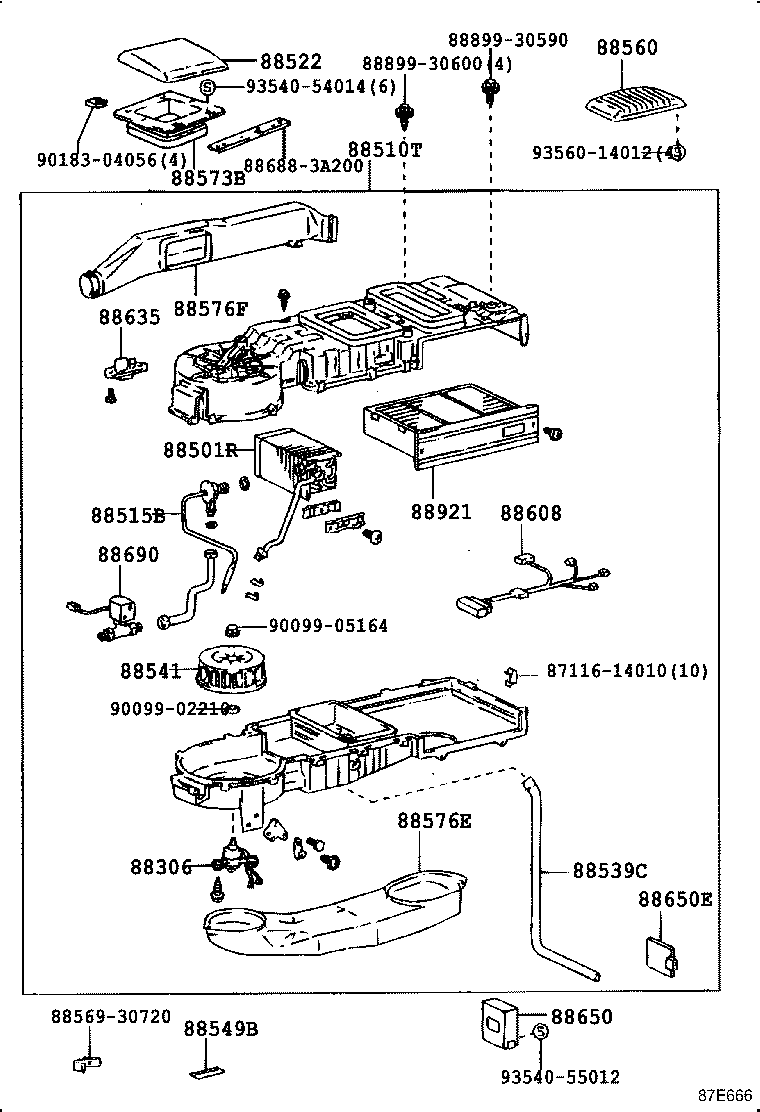

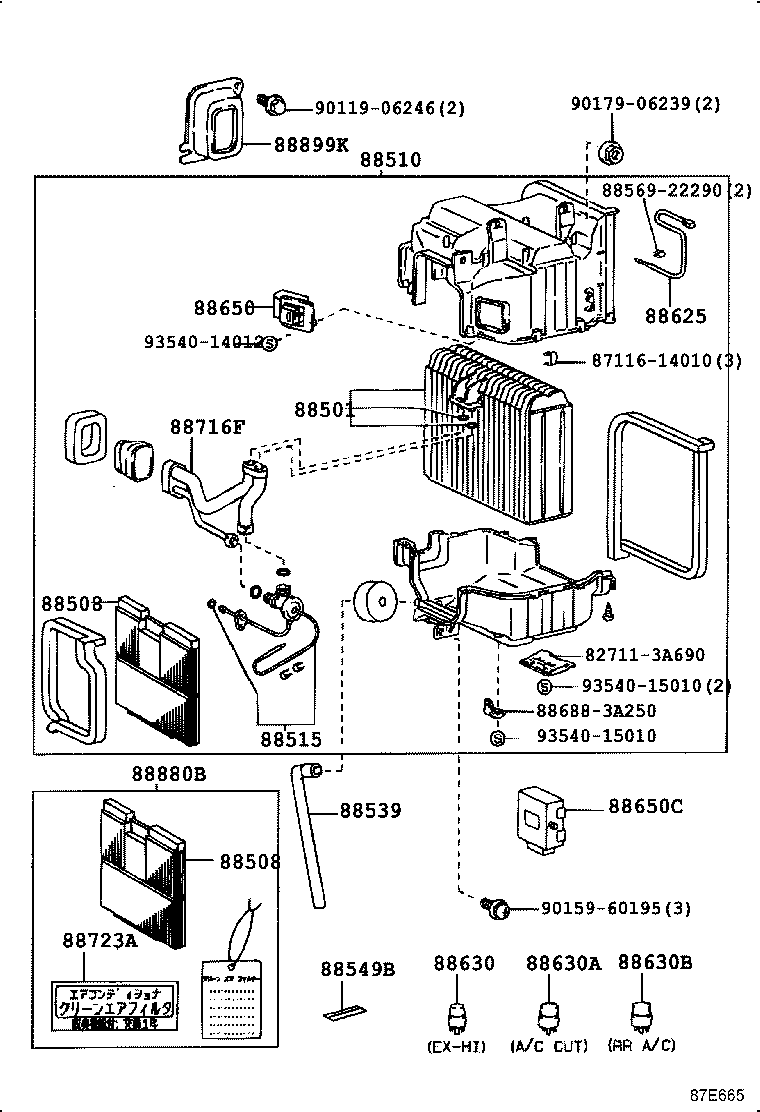

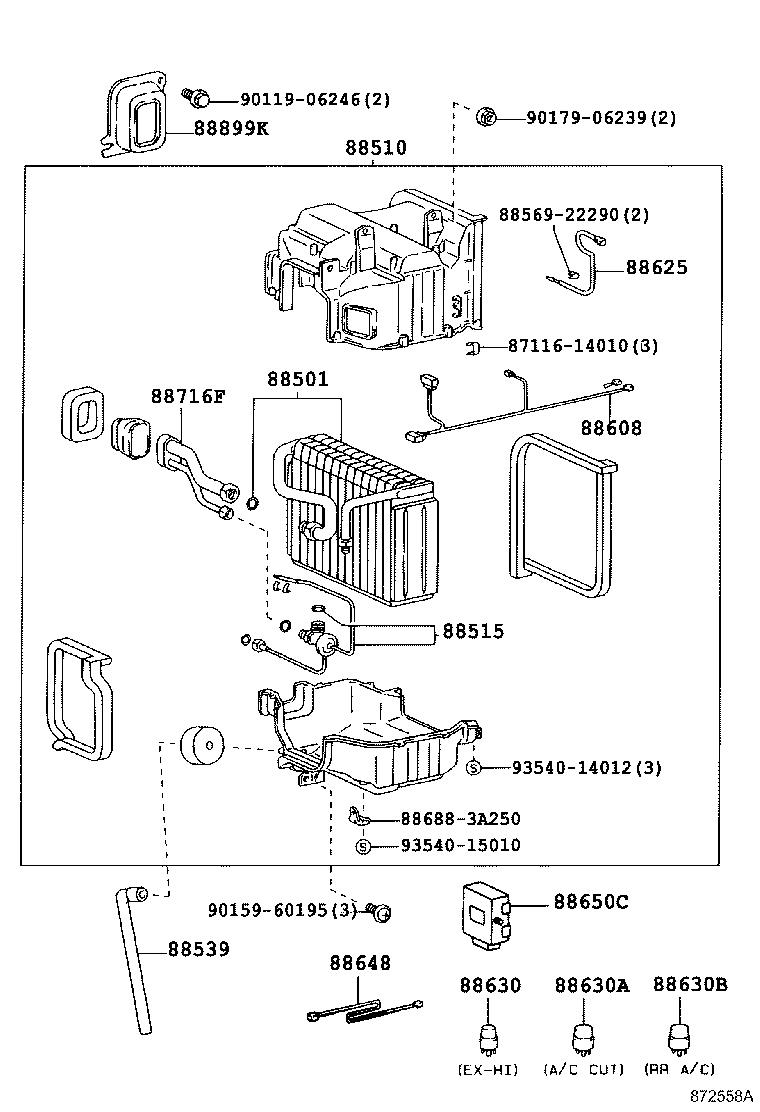

Heating & Air Conditioning - Cooler Unit
37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88502 | Case Sub-assy, Cooling Unit |
| 88508 | Filter Sub-assy, Clean Air |
| 88510 | Unit Assy, Cooler |
| 88510T | Unit Assy, Cooling (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88522 | Door, Cooling Unit |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88541 | Fan, Blower |
| 88549B | Plate, Caution |
| 88560 | Grille Assy, Cooler Air Inlet |
| 88573B | Base, Grille |
| 88576E | Duct, Cooler Air, NO.1 |
| 88576F | Duct, Cooler Air, NO.2 |
| 88608 | Harness Sub-assy, Wiring Air Conditioner |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88650C | Amplifier Sub-assy, Airconditioner |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
| 88690 | Valve Assy, Cooler Magnet |
| 88710A | Tube Assy, Air Conditioner |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88717F | Pipe, Cooler Refrigerant Suction, F |
| 88723A | Label, Cooler Service Caution |
| 88880B | Filter Assy, Clean Air |
| 88891 | Packing (FOR COOLER) |
| 88899K | Plate, Cover |
| 88921 | Filter, Air Purifier, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
