Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 5 illustrations

Illustrations

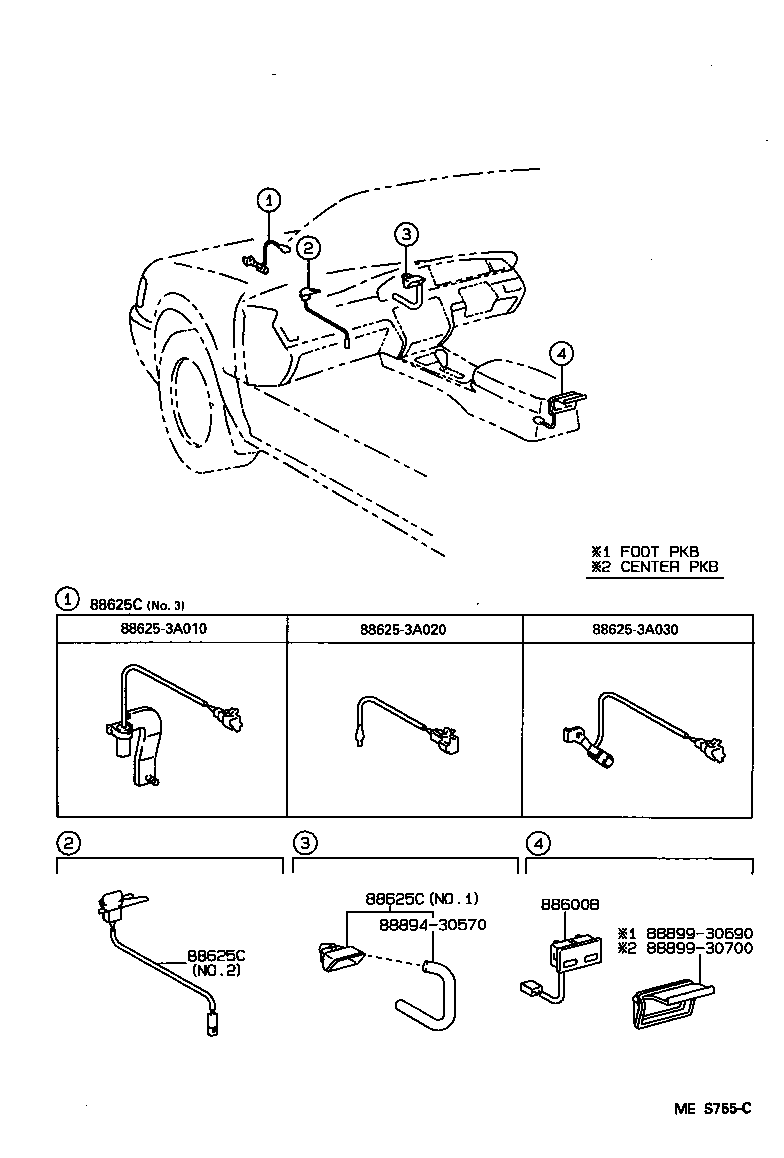

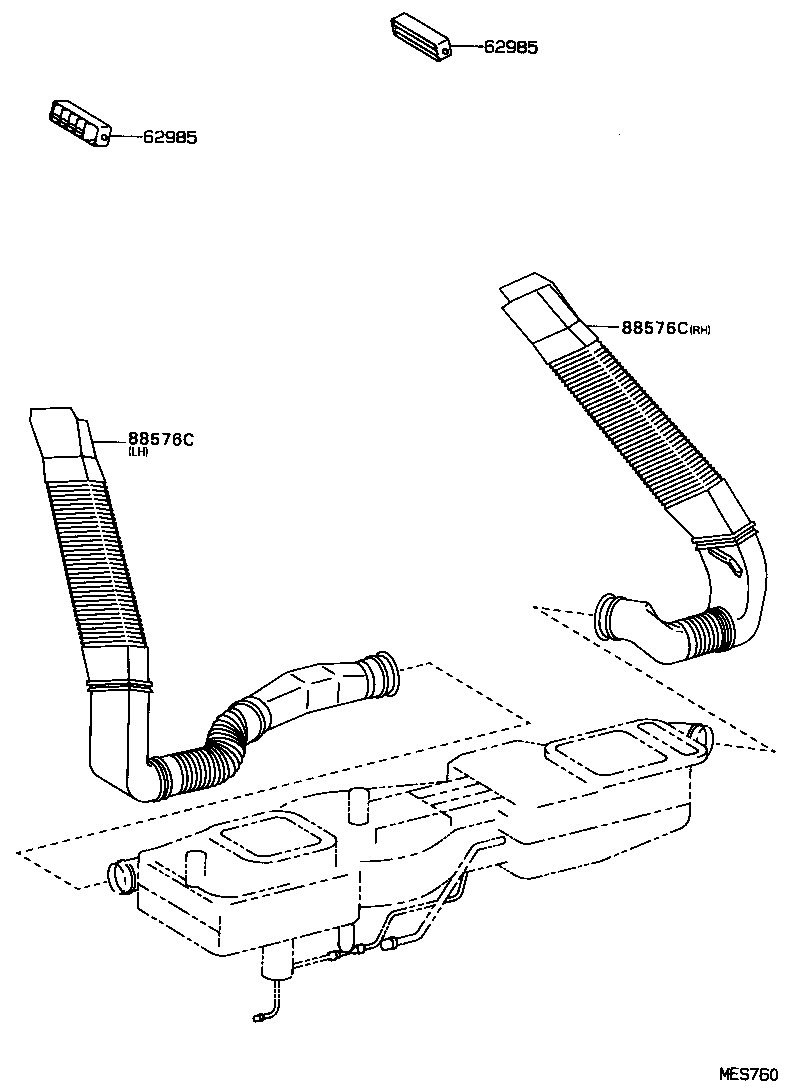

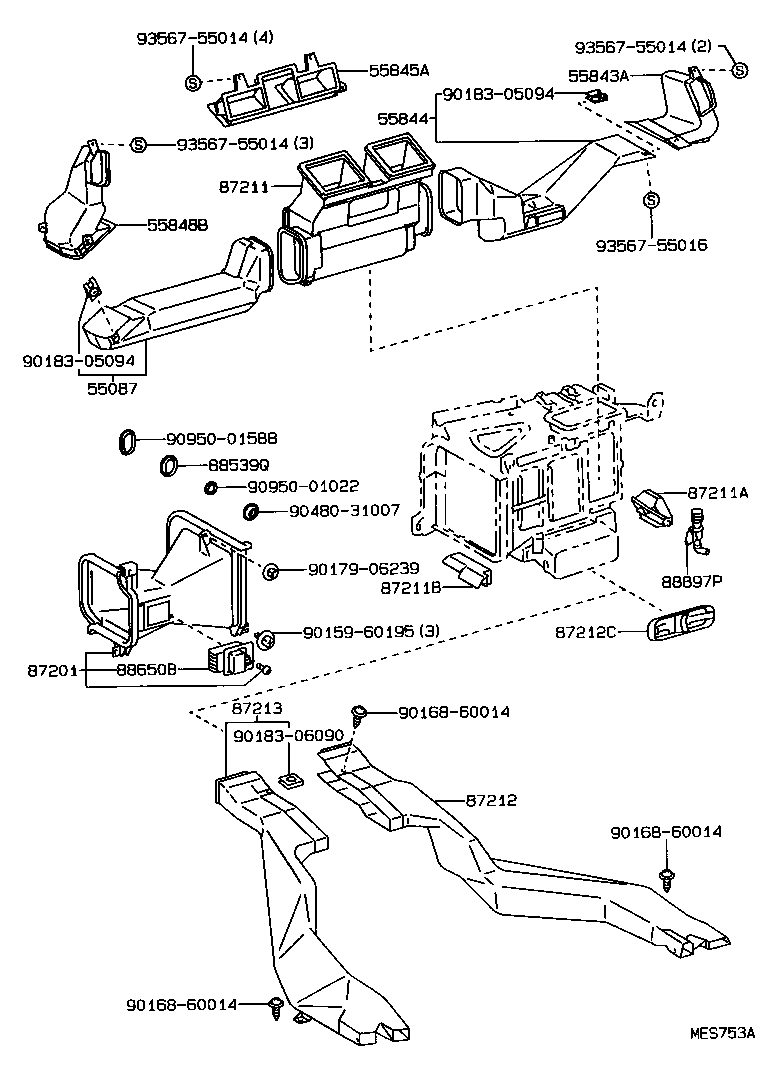

Figure MEW748A MEW748A 1991-10 → — Figure MES770C MES770C 1991-10 → — Figure MES753A MES753A 1991-10 → — Figure MES755C MES755C 1991-10 → — Figure MES760 MES760 1991-10 → —

Part groups

PNCDescription
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55848B Duct, Heater TO Register, NO.6
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
55941 Bracket, Heater Control
62985 Register, Roof Side Air Outlet
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87212C Duct, Air, RR
87213 Duct, Air, Rear NO.2
88539Q Plug, Hole (FOR DRAIN HOSE HOLE)
88576C Duct, Cooler Air, NO.1
88600B Panel Assy, Control
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88650M Computer Assy, Air Conditioner
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
