Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 7 illustrations

Illustrations

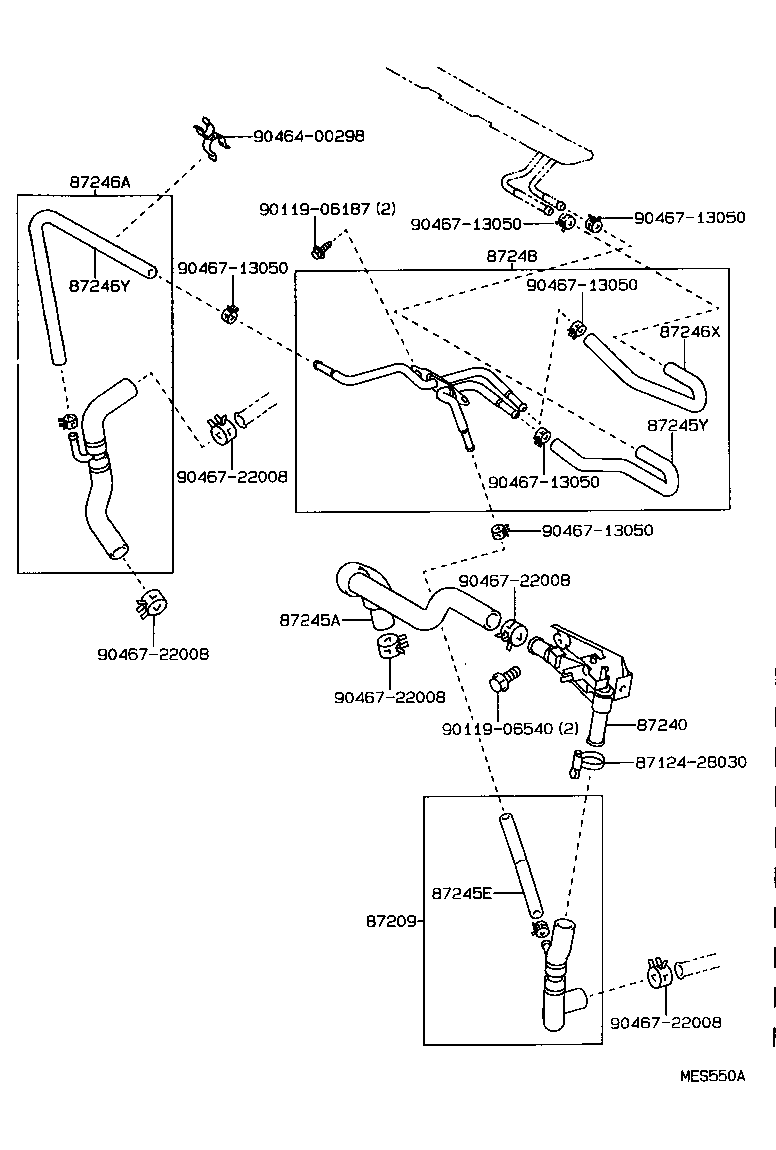

Figure MES543A MES543A 1991-10 → — Figure MES539A MES539A 1991-10 → — Figure MES550A MES550A 1991-10 → 1993-08 Figure MES547A MES547A 1991-10 → 1995-12 Figure MES544A MES544A 1991-10 → 1995-12 Figure MES545A MES545A 1991-10 → 1993-08 Figure MES546A MES546A 1991-10 → 1995-12

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87245Y Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87246X Hose, Heater Water
87246Y Hose, Heater Water
87248 Pipe Sub-assy, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
