Toyota Crown
1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General
Discontinued model
Data version 2002-03

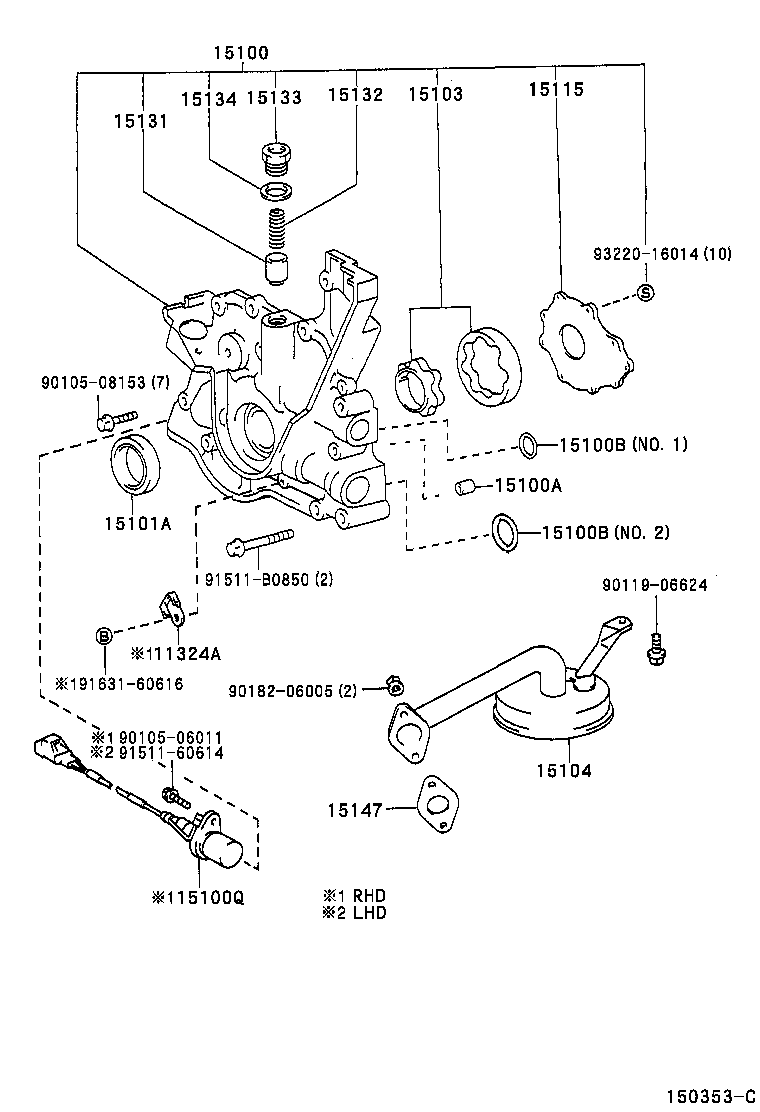

Engine Oil Pump
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11324A | Plate, Timing Belt |
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100D | Pin(FOR OIL PUMP SET) |
| 15100E | Pin, Straight (FOR OIL PUMP SET) |
| 15100F | Bush (FOR OIL PUMP) |
| 15100Q | Sensor, Crank Position |
| 15101A | Seal(FOR CRANKSHAFT) |
| 15102 | Rotor Set, Oil Pump |
| 15103 | Gear Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15115 | Cover, Oil Pump |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
