Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

21 part groups · 5 illustrations

Illustrations

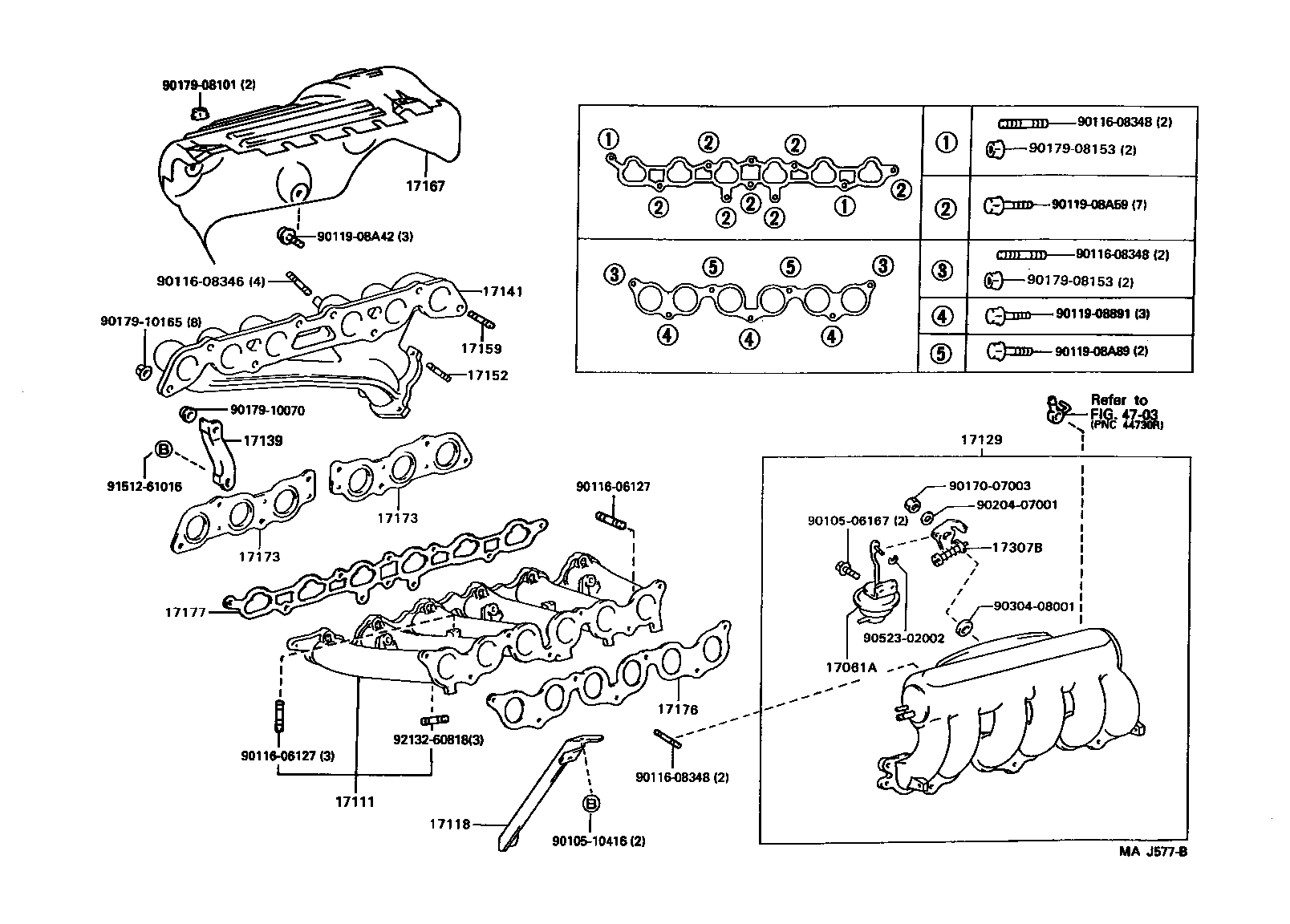

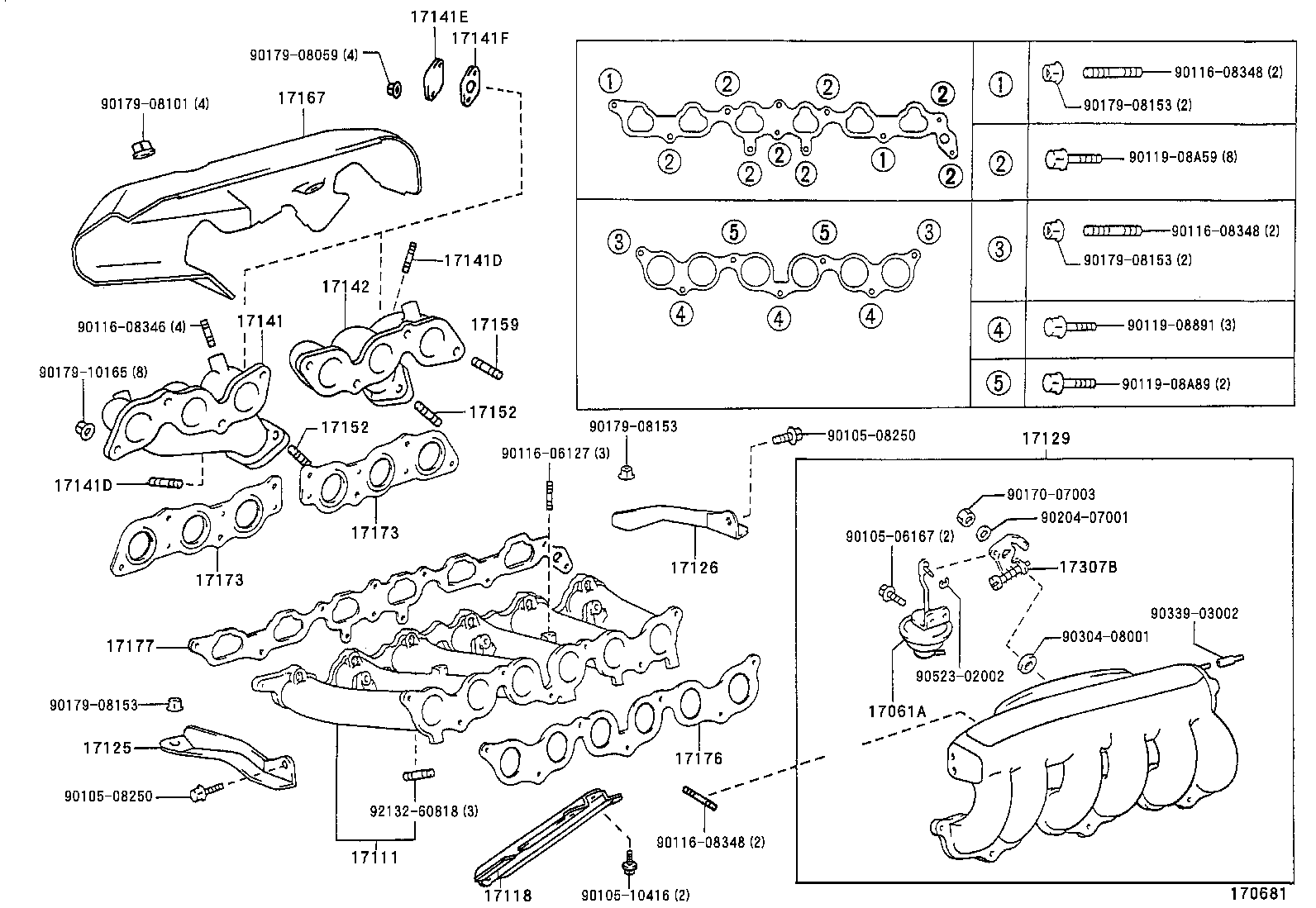

Figure 171745A 171745A 1997-07 → 1998-08 Figure 170681 170681 1995-12 → 1999-09 Figure 170681 170681 1995-12 → — Figure MAJ577B MAJ577B 1995-12 → — Figure MAJ577B MAJ577B 1999-09 → 1999-10

Part groups

PNCDescription
17061A Diaphragm Sub-assy
17110A Union, Vacuum Hose
17111 Manifold, Intake
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17142 Case, Exhaust Manifold, NO.2
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17307B Lever Sub-assy, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
