Toyota Crown
1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General
Discontinued model
Data version 2002-03

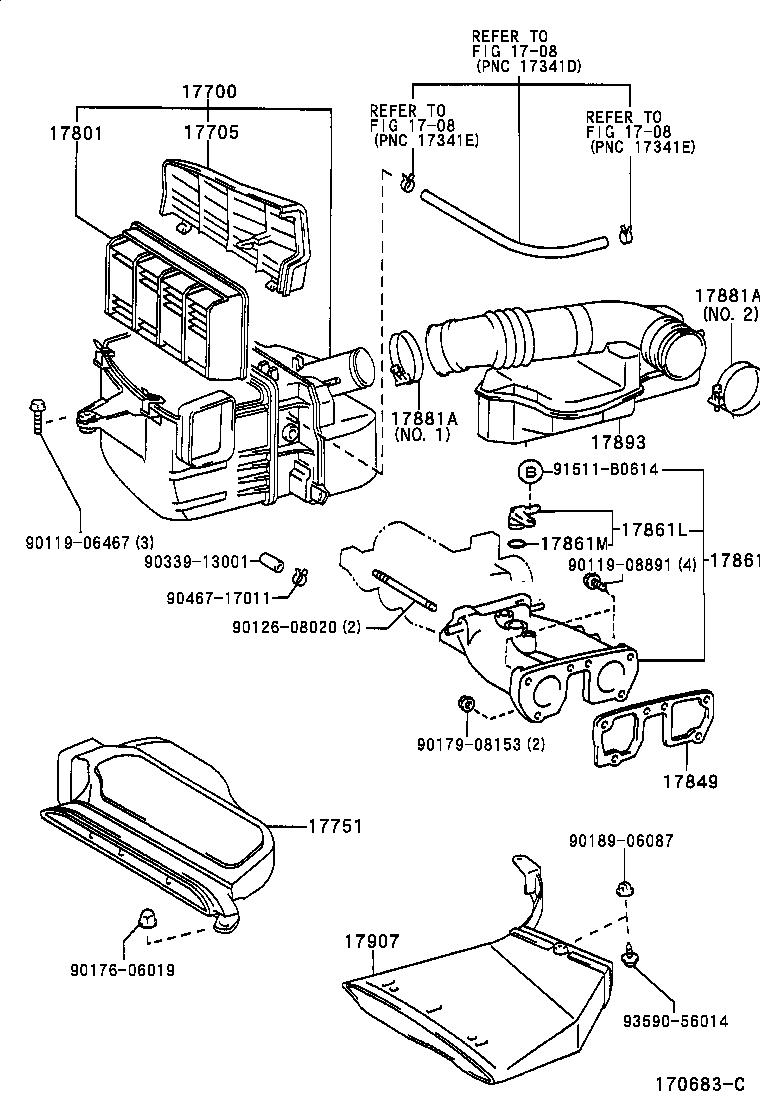

Air Cleaner
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17781 | Seal, Air Cleaner Inlet |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17849 | Gasket, Intake Air Connector |
| 17856 | Gasket, Air Intake Flange |
| 17861 | Connector, Intake Air |
| 17861L | Elbow(FOR INTAKE AIR CONNECTOR) |
| 17861M | Ring, O(FOR INTAKE AIR CONNECTOR) |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17907 | Inlet Sub-assy, Cool Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
