Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 7 illustrations

Illustrations

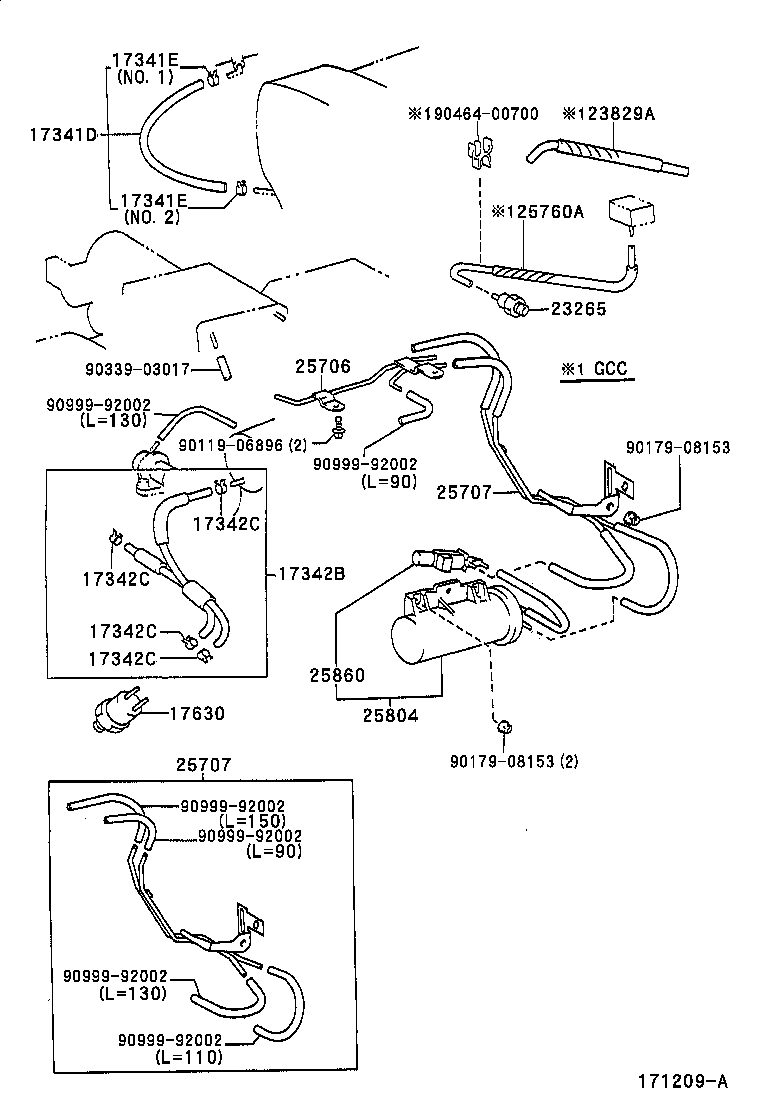

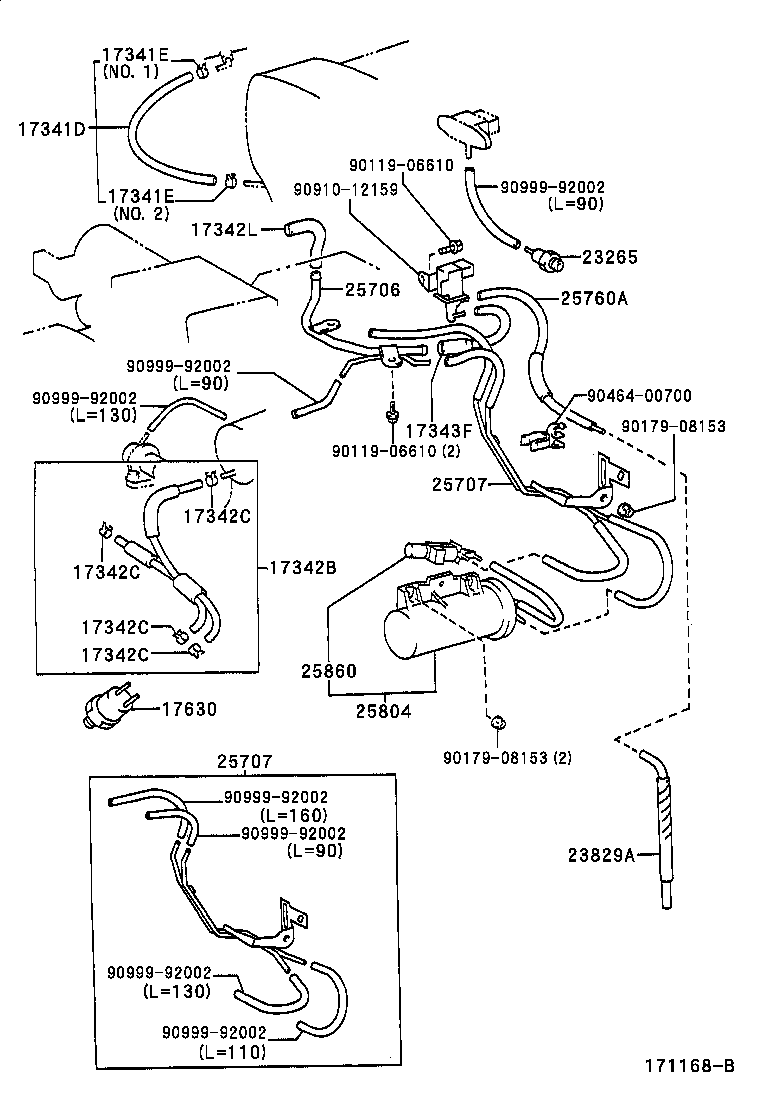

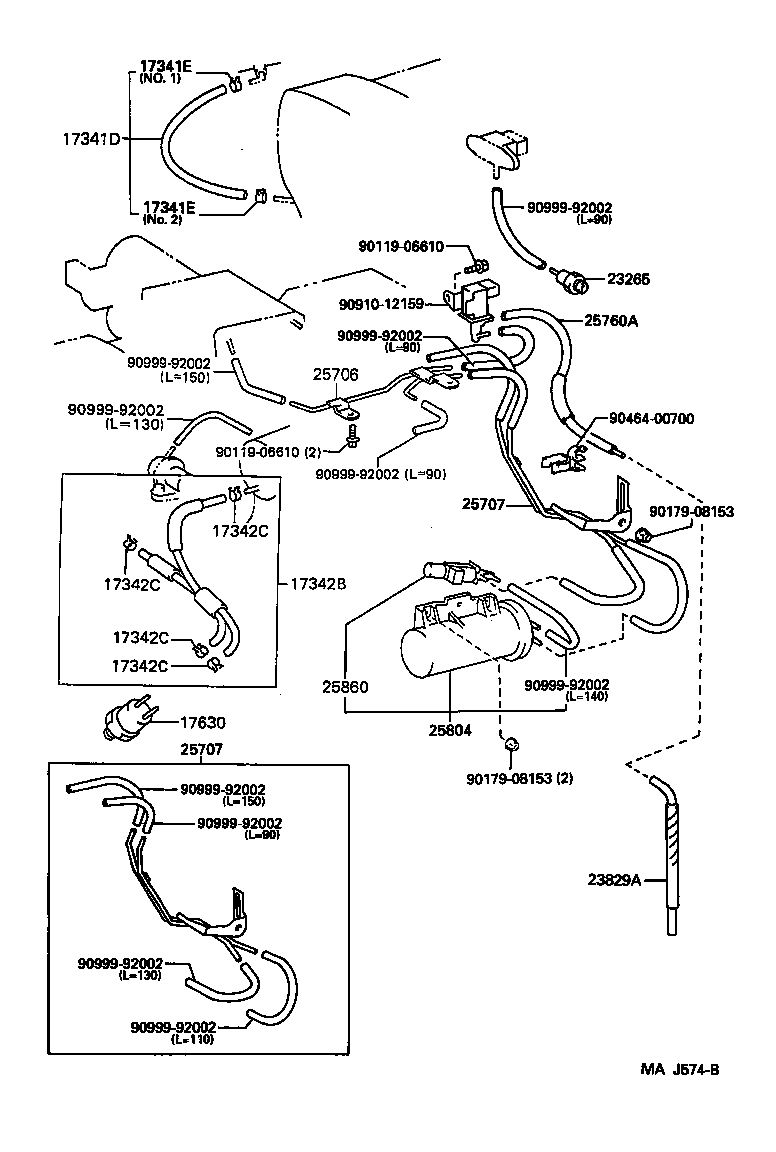

Figure 170021 170021 1995-12 → — Figure 171753 171753 1997-07 → 1998-08 Figure MAJ574B MAJ574B 1995-12 → 1997-07 Figure 171209A 171209A 1995-12 → 1999-09 Figure 171209A 171209A 1995-12 → — Figure 171168B 171168B 1997-07 → — Figure 171168B 171168B 1999-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760A Hose Assy, Vacuum Transmitting
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
