Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 3 illustrations

Illustrations

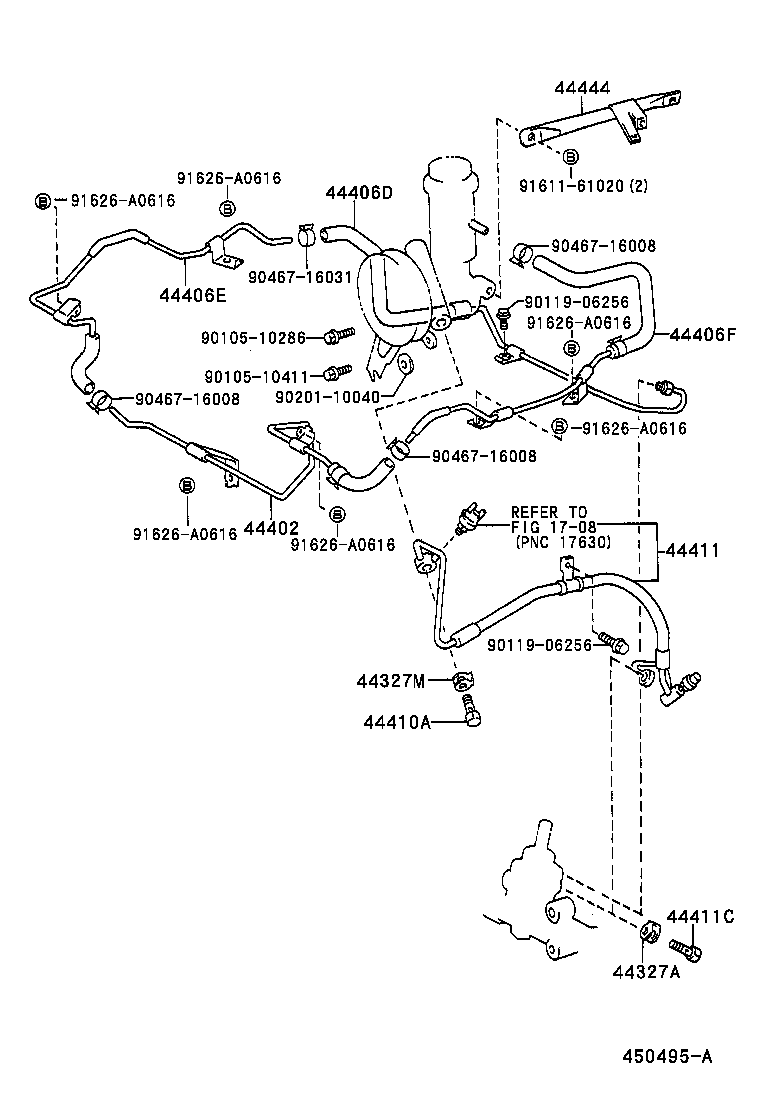

Figure 452028B 452028B 1995-12 → — Figure 450495A 450495A 1995-12 → — Figure MCU230 MCU230 1997-07 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44406F Tube Sub-assy, Return, NO.3
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44443 Bracket, Pump
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
