Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

15 part groups · 2 illustrations

Illustrations

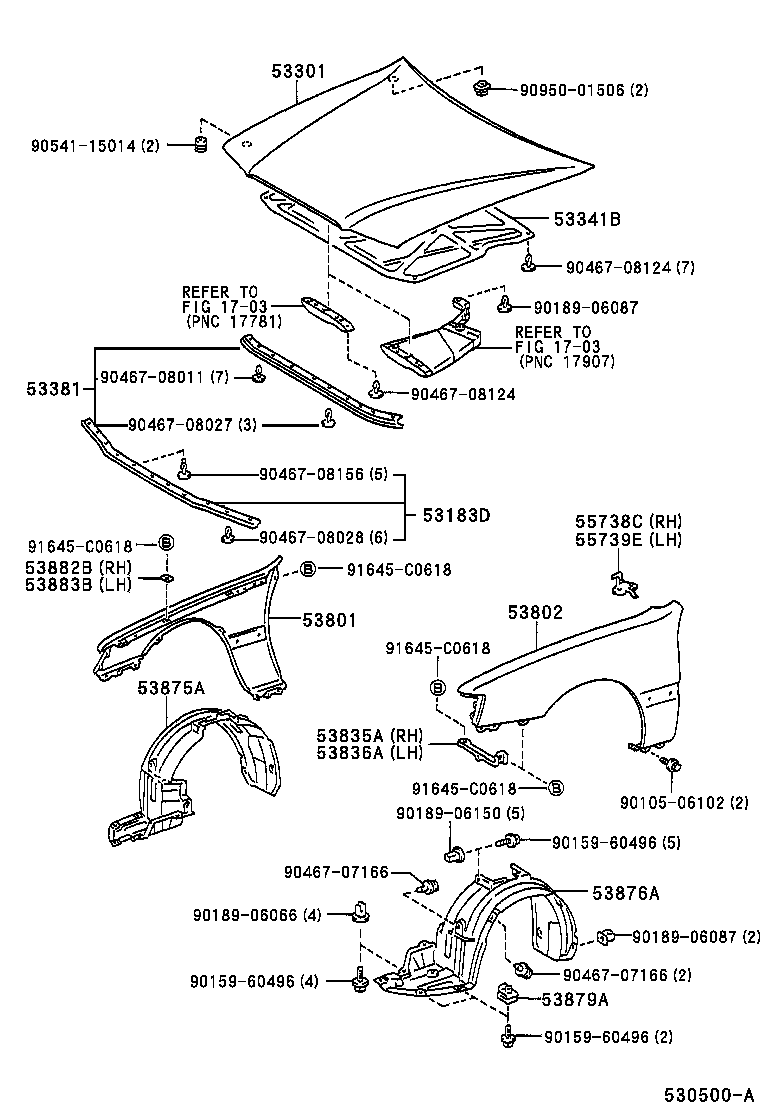

Figure MBZ902A MBZ902A 1995-12 → — Figure 530500A 530500A 1997-07 → —

Part groups

PNCDescription
53183D Seal, Headlamp Cover TO Hood
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53835A Brace, Front Fender TO Apron, RH
53836A Brace, Front Fender TO Apron, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882B Seal, Front Fender, RH
53883B Seal, Front Fender, LH
55738C Stopper, Hood, RH
55739E Stopper, Hood, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
