Toyota Crown
1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General
Discontinued model
Data version 2002-03

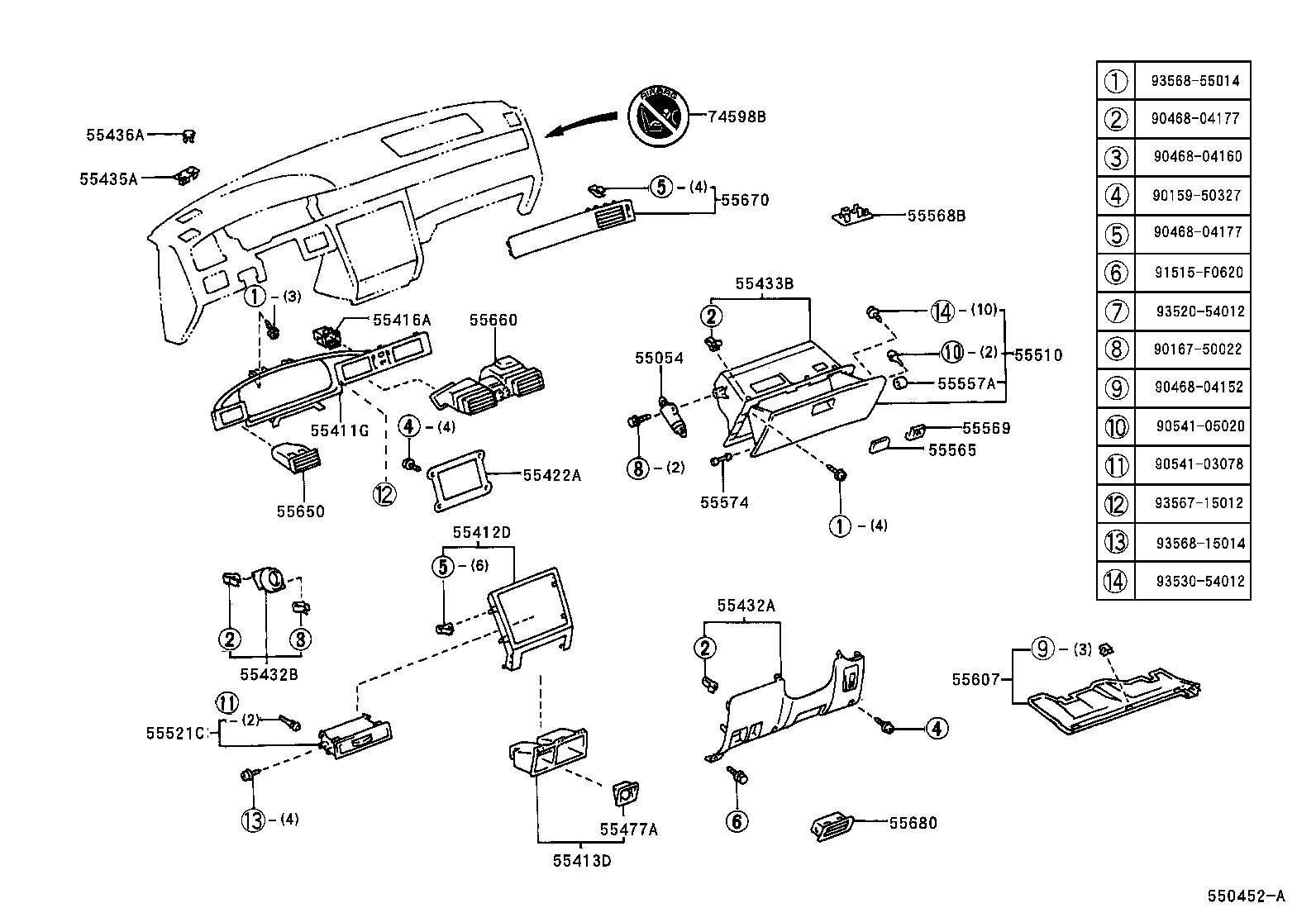

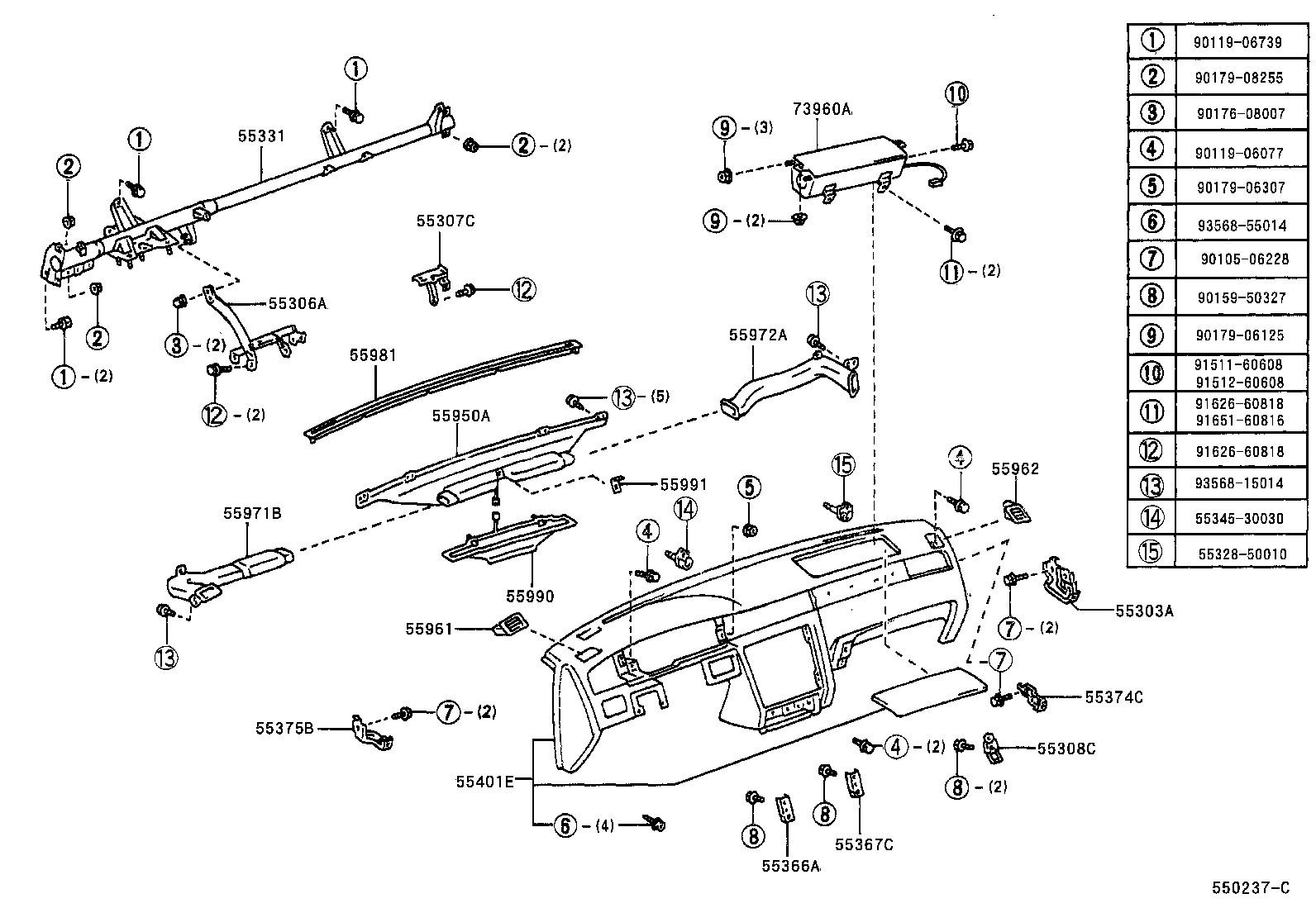

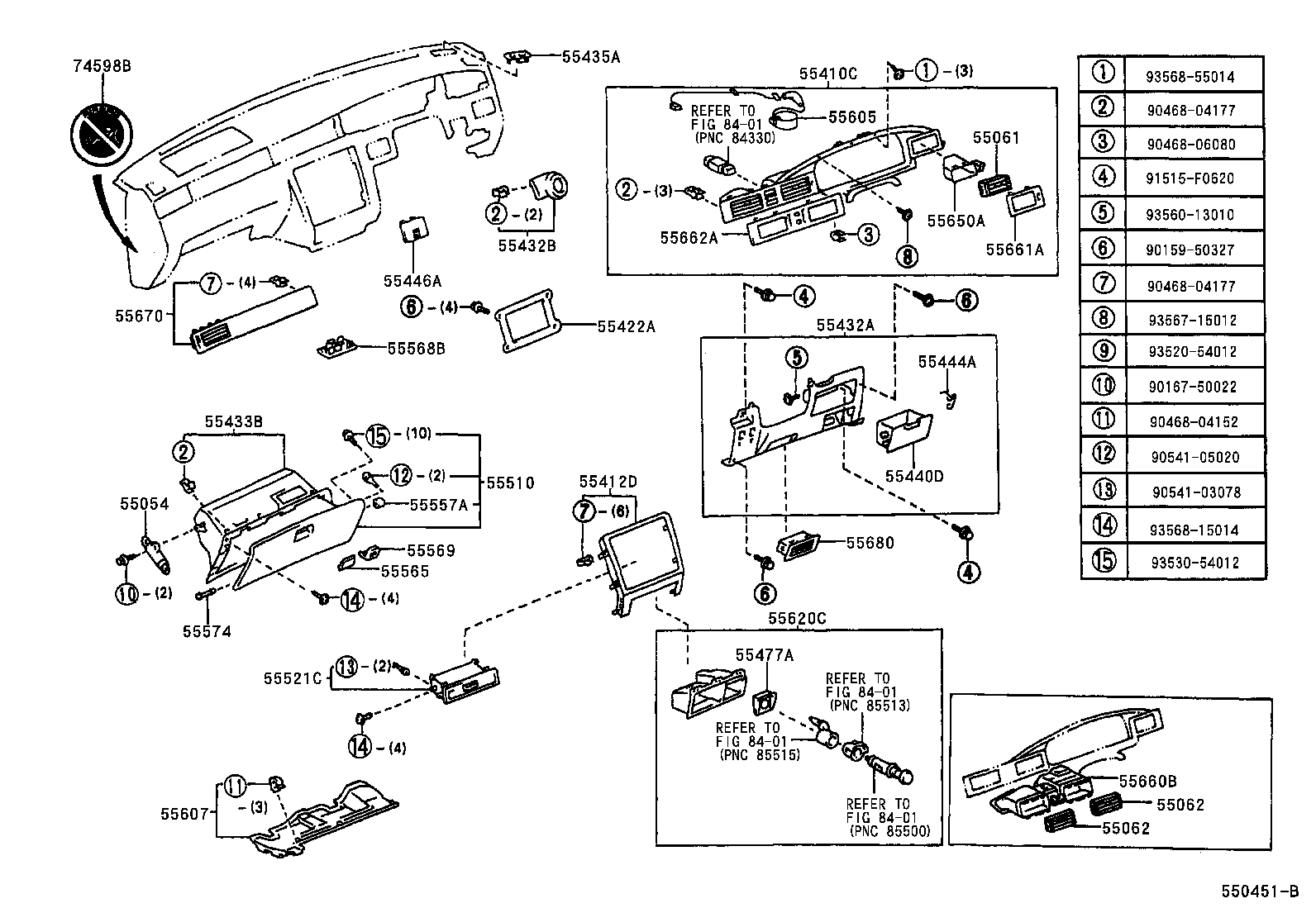

Instrument Panel & Glove Compartment
56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55303A | Stay Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55367C | Bracket, Radio Tuner Mounting, NO.3 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55440D | Box Assy, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55557A | Cushion, Glove Compartment Door Check |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55605 | Motor Sub-assy, Swing Register |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55620C | Holder, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55650A | Retainer, Instrument Panel Resister, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55660B | Retainer, Instrument Panel Resister, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55990 | Nozzle Assy, Center Defroster |
| 55991 | Bracket, Defroster Duct, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
