Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

23 part groups · 3 illustrations

Illustrations

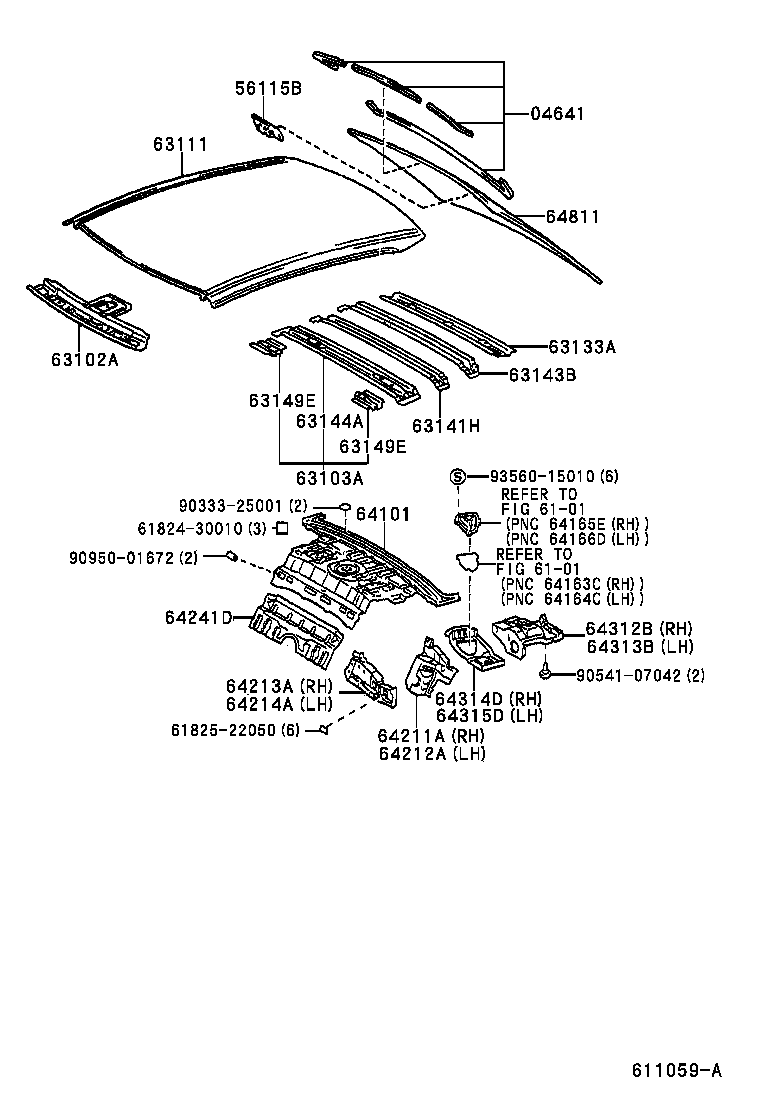

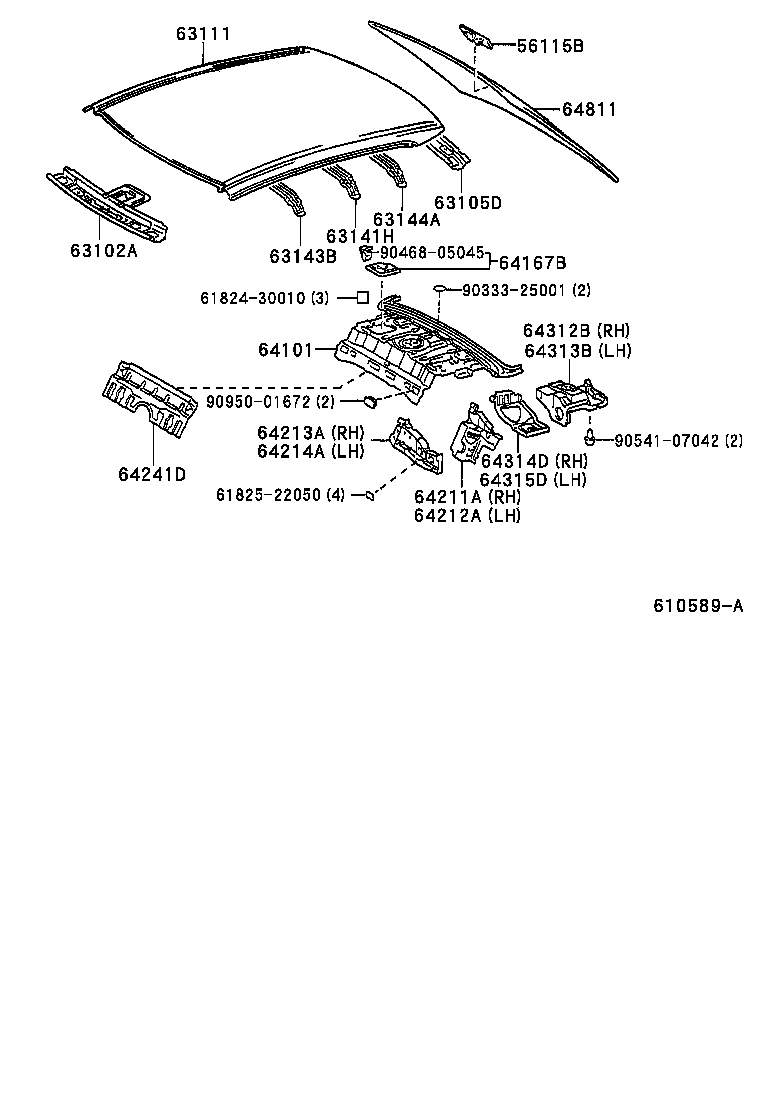

Figure 610333A 610333A 1995-12 → 1999-09 Figure 611059A 611059A 1999-09 → — Figure 610589A 610589A 1997-07 → —

Part groups

PNCDescription
04641 Dam Kit, Back Window Glass
56115B Stopper, Back Window Glass, NO.1
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63133A Frame, Back Window, Upper
63141H Reinforcement, Roof Panel, Center
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63149E Bracket, Roof Panel Reinforcement, NO.2
64101 Panel Sub-assy, Upper Back
64167B Cover, Upper Back Panel Hole, NO.3
64211A Strainer, Package Tray TO Floor, RH
64212A Strainer, Package Tray TO Floor, LH
64213A Extension, Package Tray Strainer, RH
64214A Extension, Package Tray Strainer, LH
64241D Panel, Room Partition
64312B Bracket, Package Tray, RH
64313B Bracket, Package Tray, LH
64314D Extension, Package Tray Bracket, RH
64315D Extension, Package Tray Bracket, LH
64811 Glass, Back Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
