Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

18 part groups · 2 illustrations

Illustrations

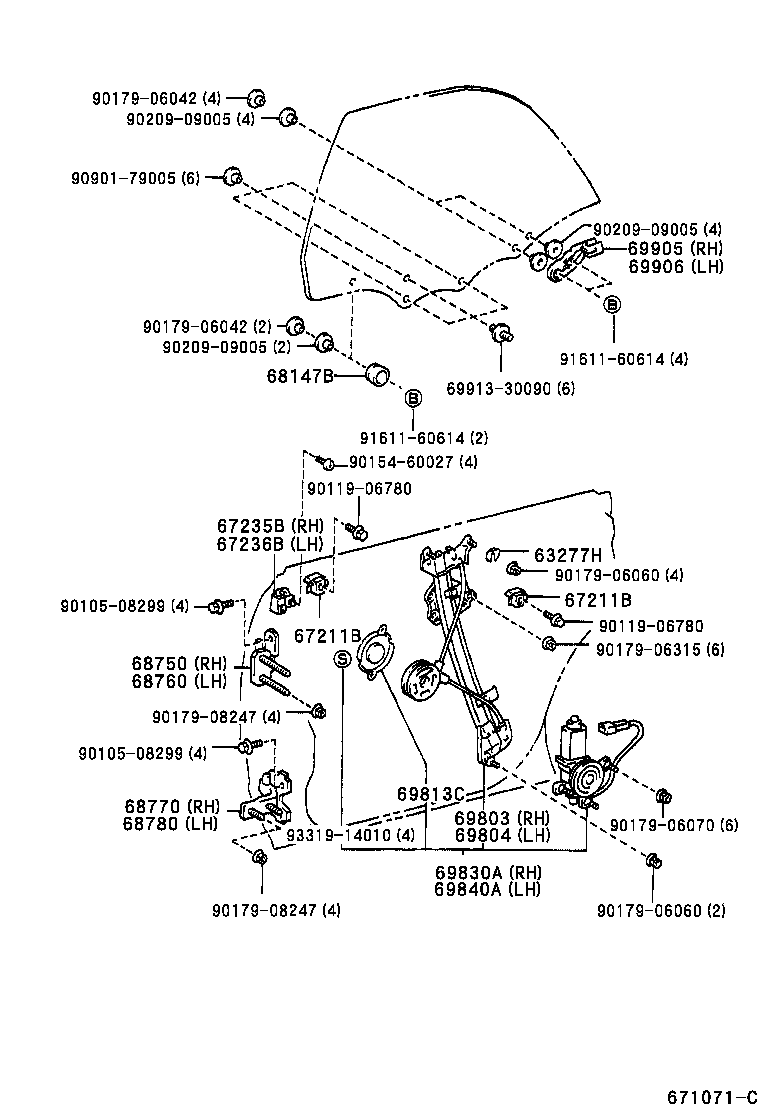

Figure 671209 671209 1995-12 → — Figure 671071C 671071C 1997-07 → —

Part groups

PNCDescription
63277H Shim, Window Regulator
67211B Stop, Rear Door Window, Upper
67235B Stabilizer, Door Glass Female, RH
67236B Stabilizer, Door Glass Female, LH
68147B Stop, Rear Door Glass, Upper
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69813C Plate, Rear Door Power Window Regulator Base
69830A Regulator Assy, Rear Door Window, RH
69840A Regulator Assy, Rear Door Window, LH
69905 Bracket Sub-assy, Rear Door Glass, RH
69906 Bracket Sub-assy, Rear Door Glass, LH
85710F Motor Assy, Power Window Regulator, RH
85720E Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
