Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

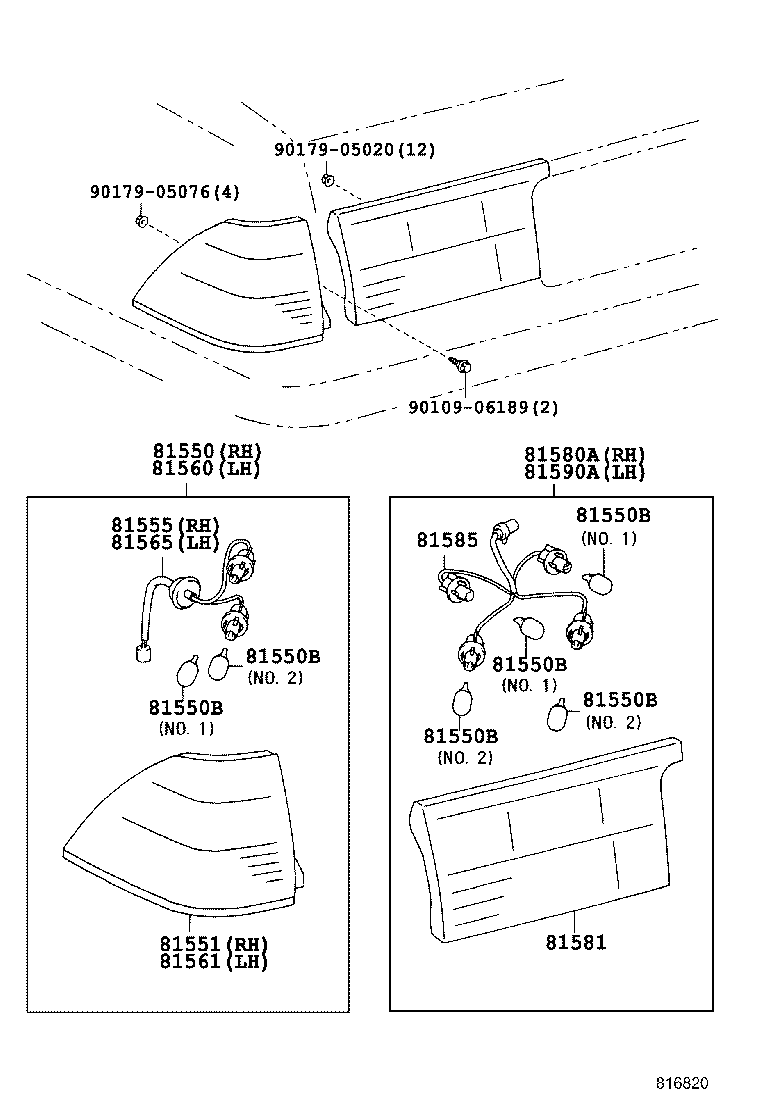

Figure NE1832 NE1832 1995-12 → — Figure 816820 816820 1997-07 → —

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81581 Lens, Rear Lamp
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
