Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 10 illustrations

Illustrations

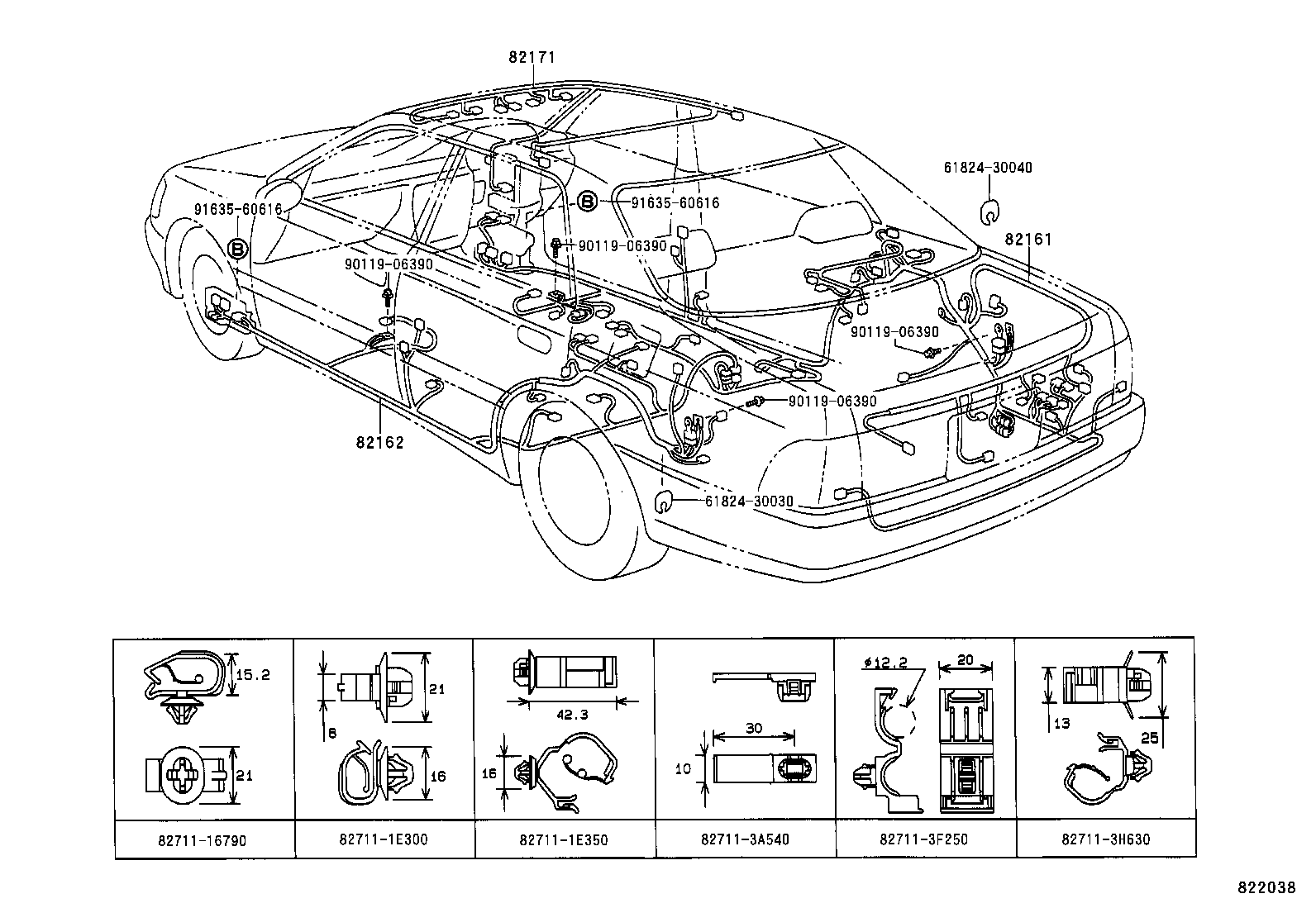

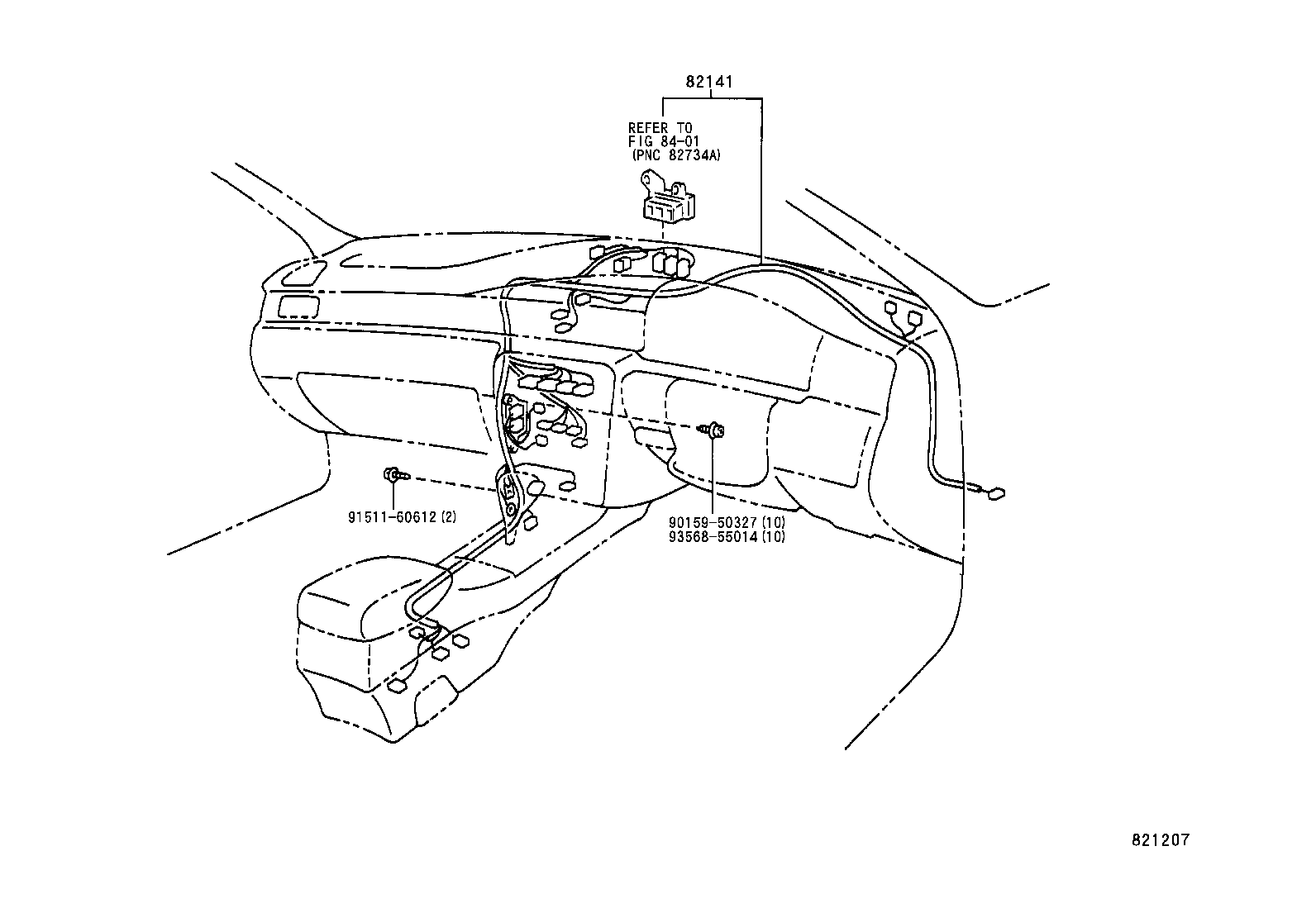

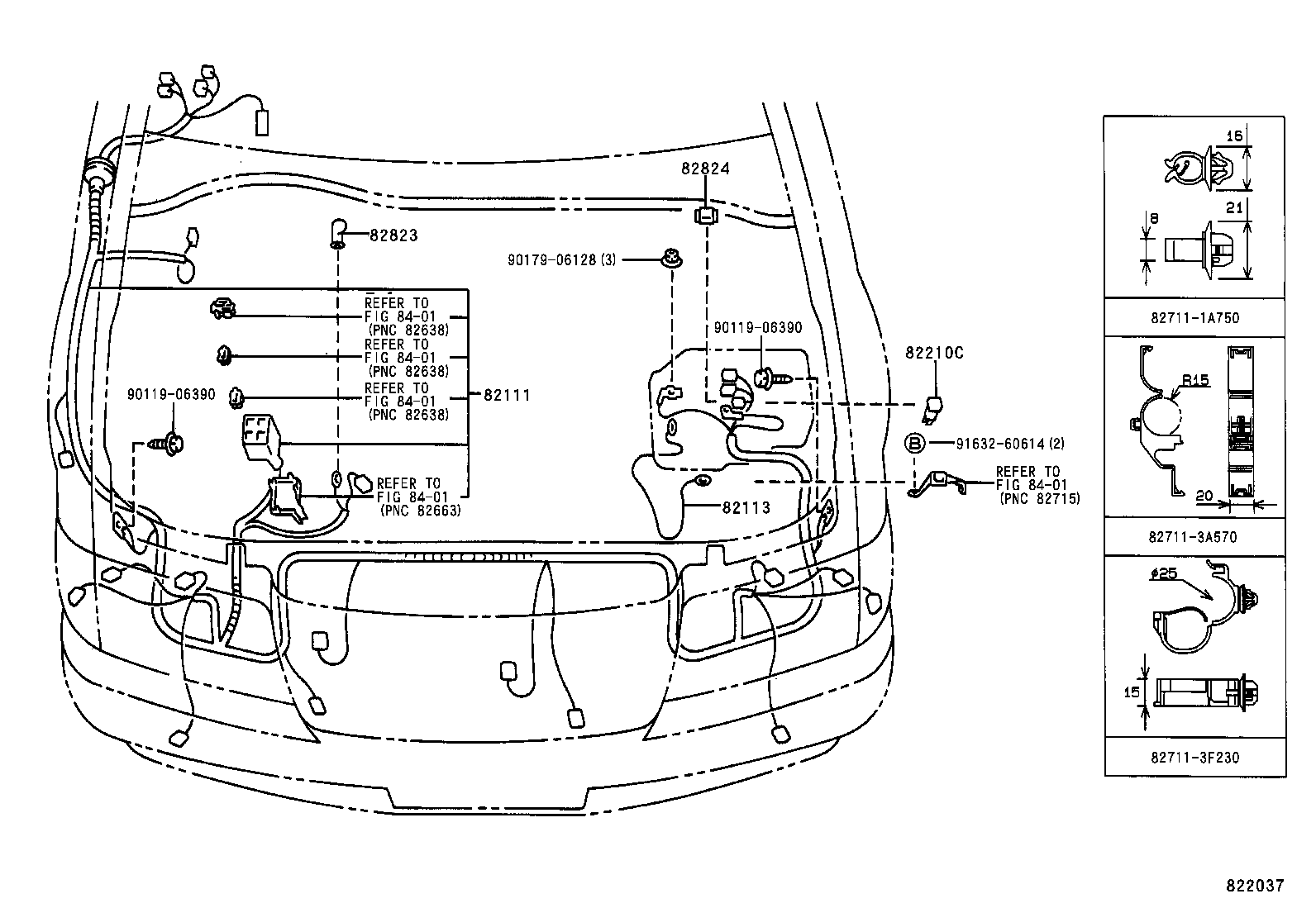

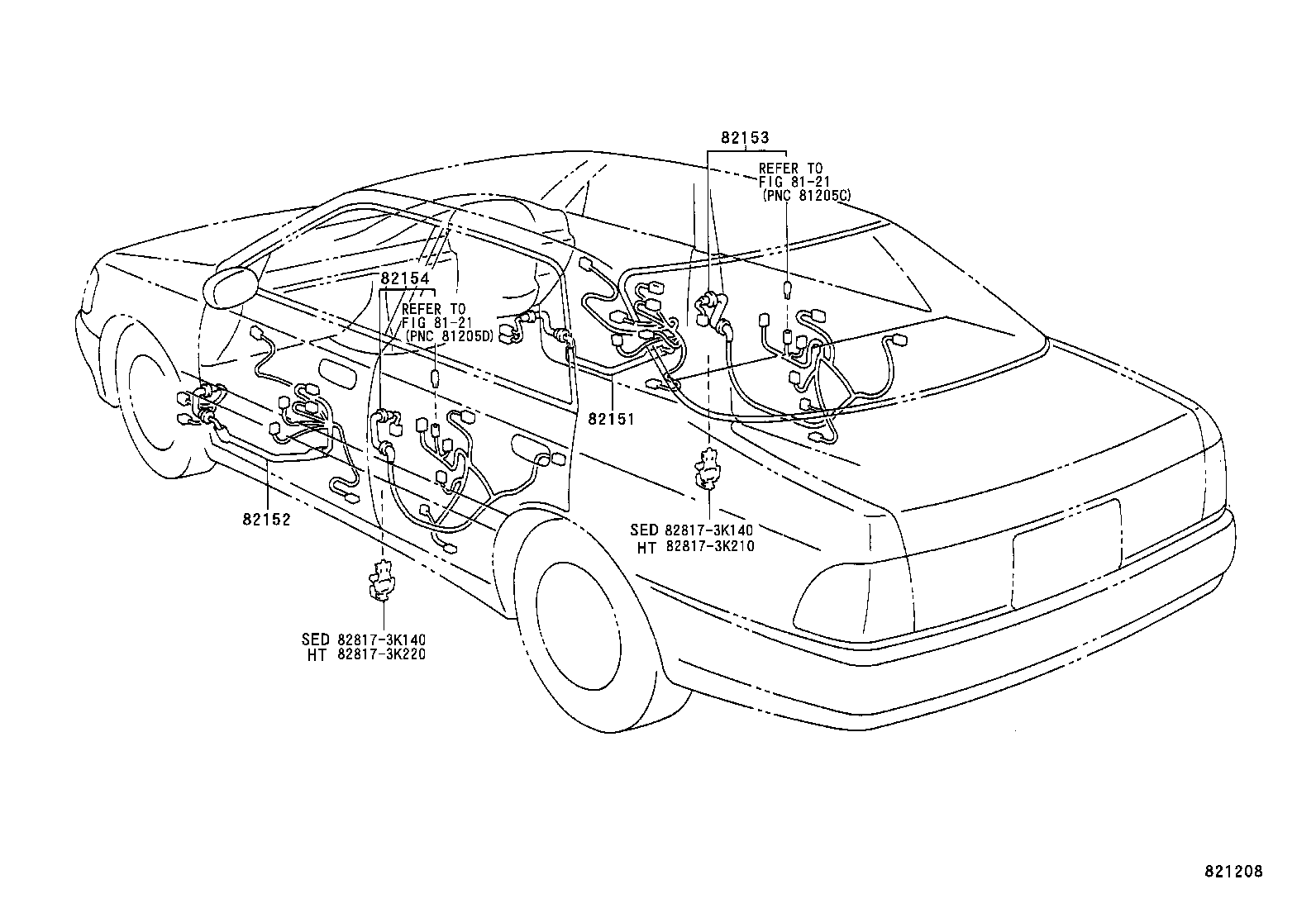

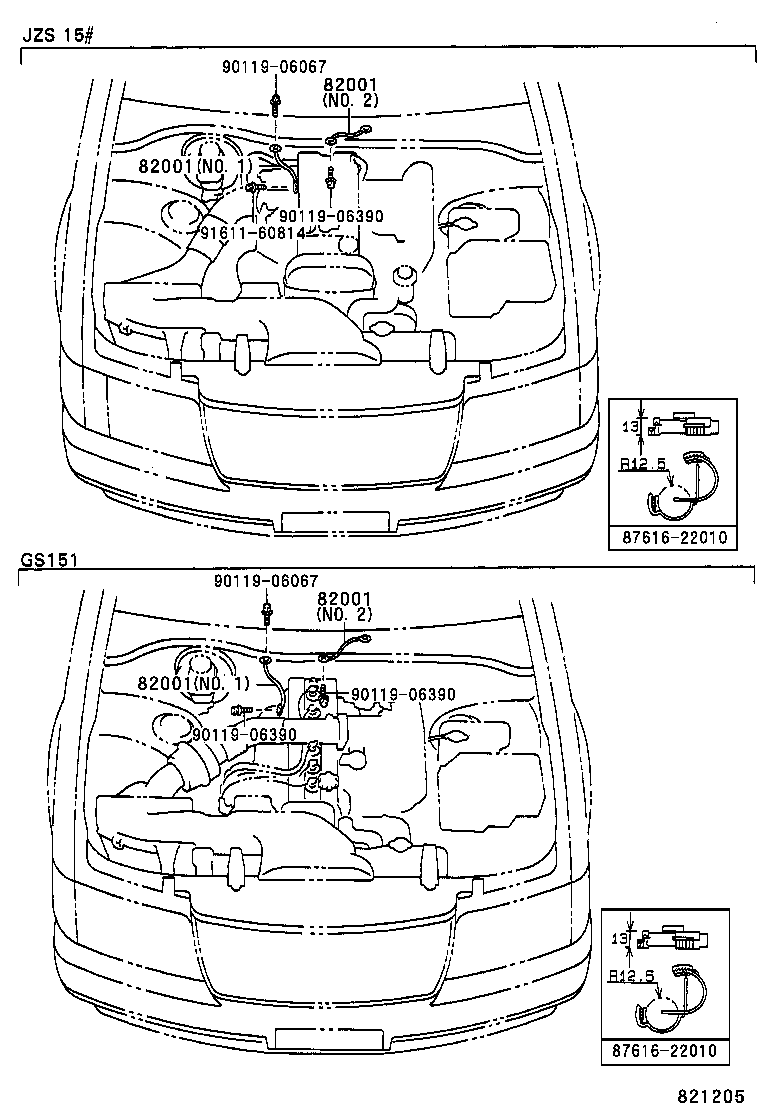

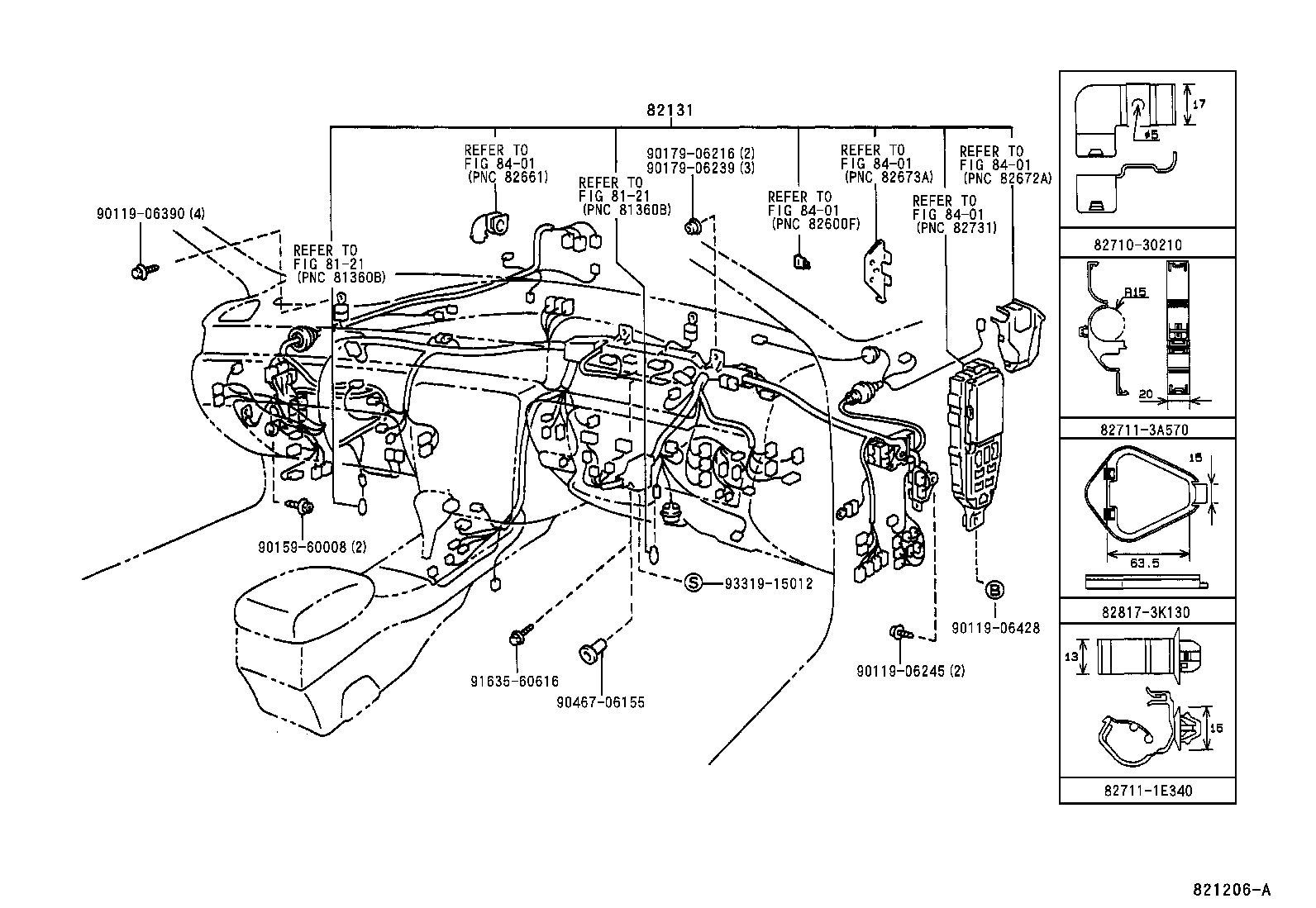

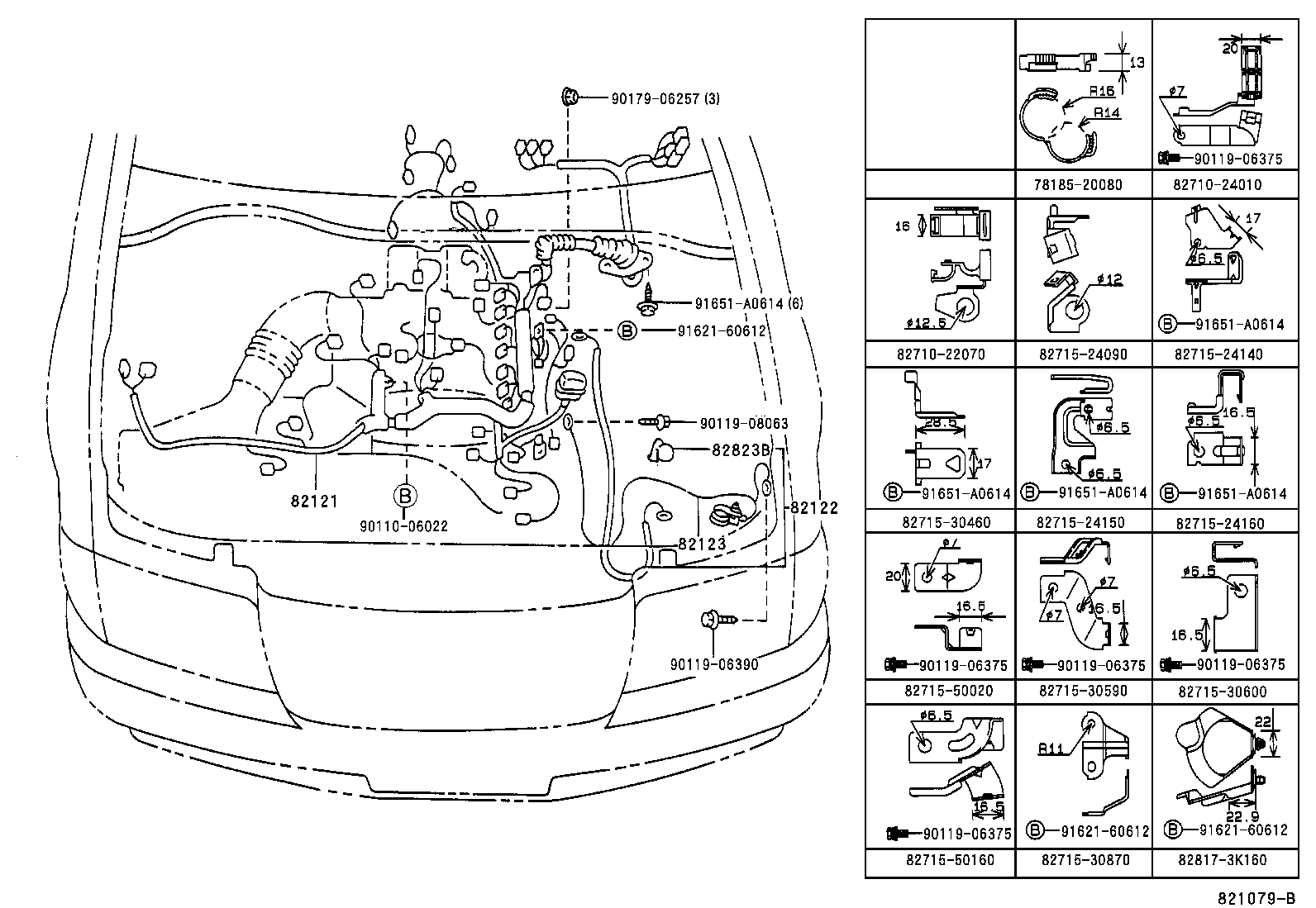

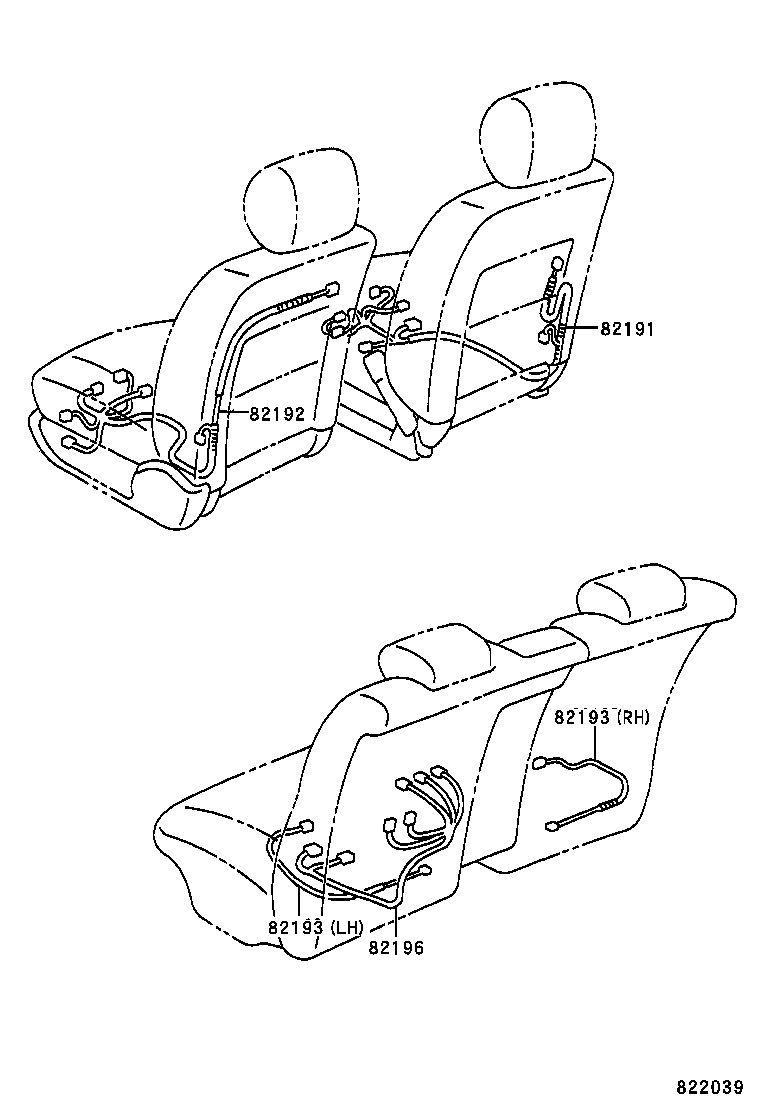

Figure 821016A 821016A 1997-07 → — Figure 821079B 821079B 1995-12 → — Figure 822037 822037 1995-12 → — Figure 821206A 821206A 1995-12 → — Figure 821207 821207 1995-12 → — Figure 821208 821208 1995-12 → — Figure 822038 822038 1995-12 → — Figure 822039 822039 1995-12 → — Figure 821205 821205 1995-12 → — Figure 822036 822036 1995-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82196 Wire, Rear Seat, LH NO.2
82210C Fusible Link
82345 Diode
82823 Cap, Terminal, NO.1
82823B Cap, Terminal, NO.3
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
