Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

13 part groups · 2 illustrations

Illustrations

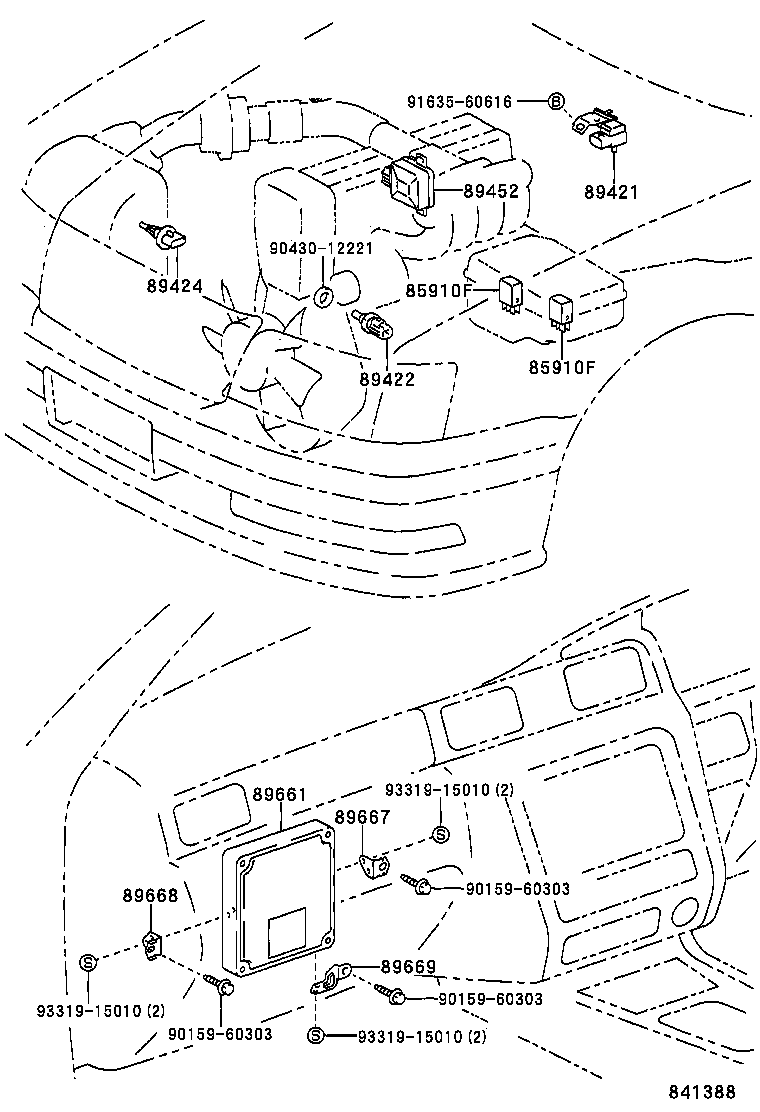

Figure 840881C 840881C 1995-12 → — Figure 841388 841388 1997-07 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910F Relay, Computer (FOR EFI)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89456 Resistor, Variable
89459A Bracket, Variable Resistor
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89672A Motor, Throttle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
