Toyota Crown
1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General
Discontinued model
Data version 2002-03

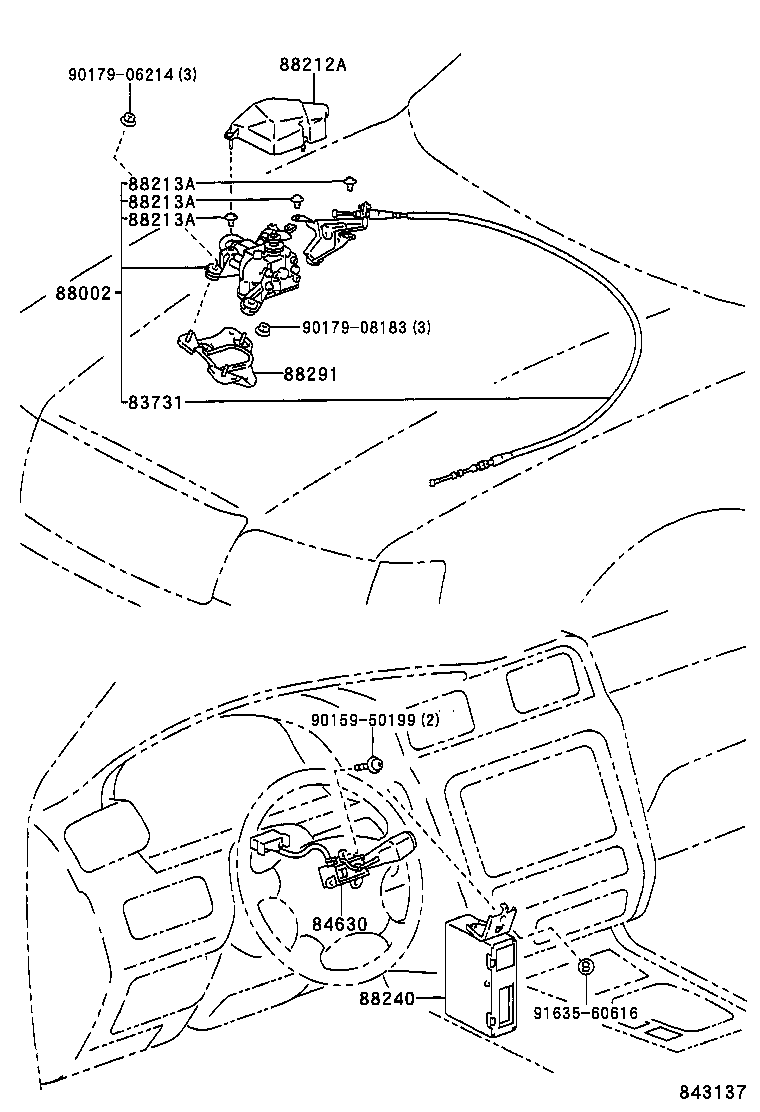

Cruise Control (AUTO DRIVE)
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83731 | Cable, Cruise Control |
| 84630 | Switch Assy, Cruise Control Main |
| 88002 | Cruise Control(AUTO DRIVE) Set |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88212A | Cover, Cruise Control Actuator |
| 88213A | Grommet, Cruise Control Actuator Cover |
| 88240 | Computer Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
