Toyota Crown
1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General
Discontinued model
Data version 2002-03
Overdrive & Electronic Controlled Transmission
12 part groups · 3 illustrations

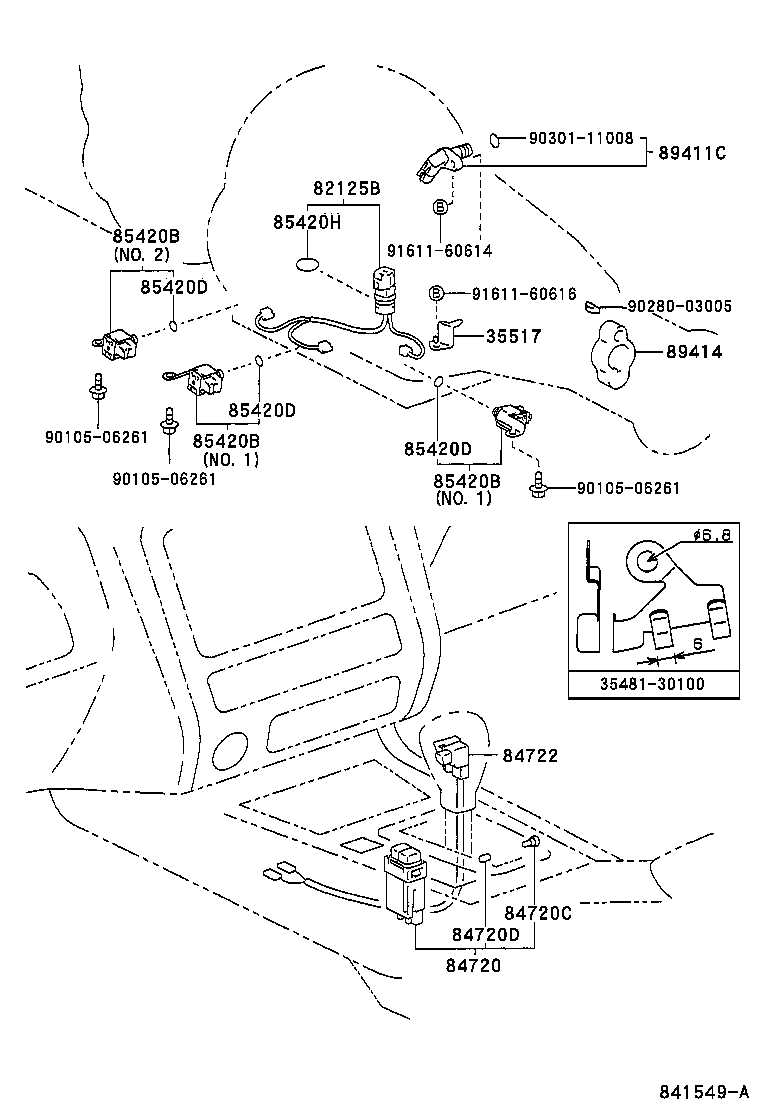

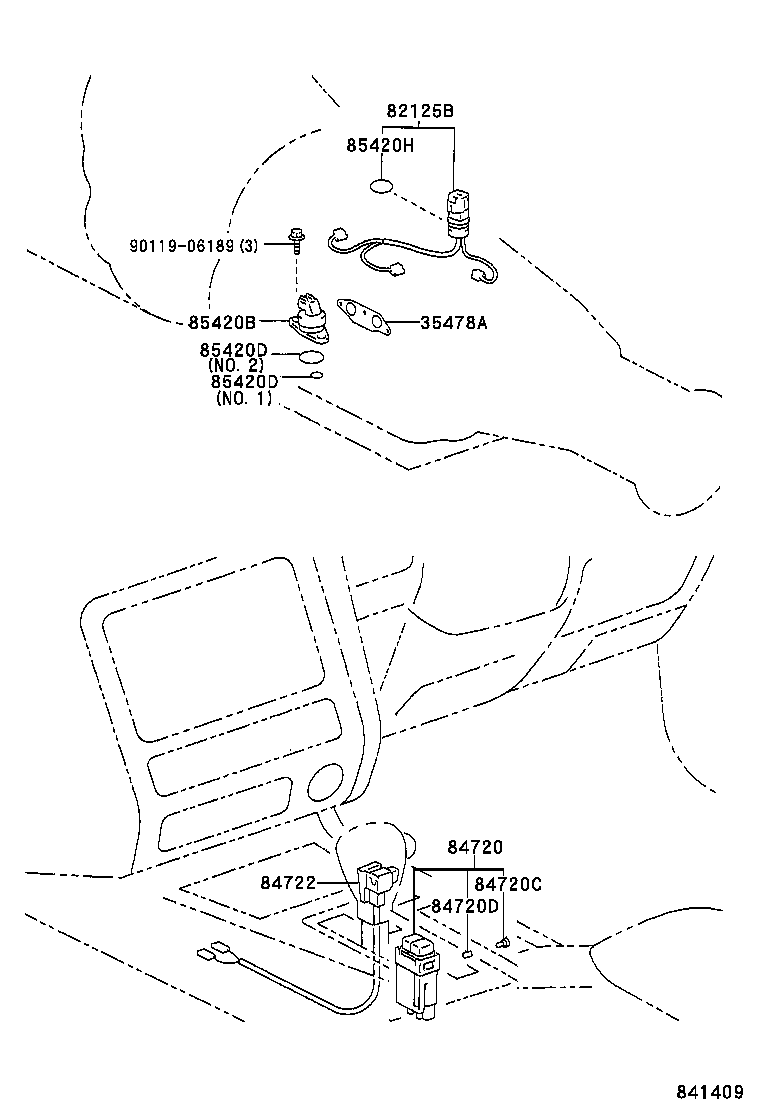

Part groups
| PNC | Description |
|---|---|
| 35478A | Gasket, Shift Control Solenoid |
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84720D | Cap, Pattern Select Switch |
| 84722 | Switch, Transmission Control |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
