Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 3 illustrations

Illustrations

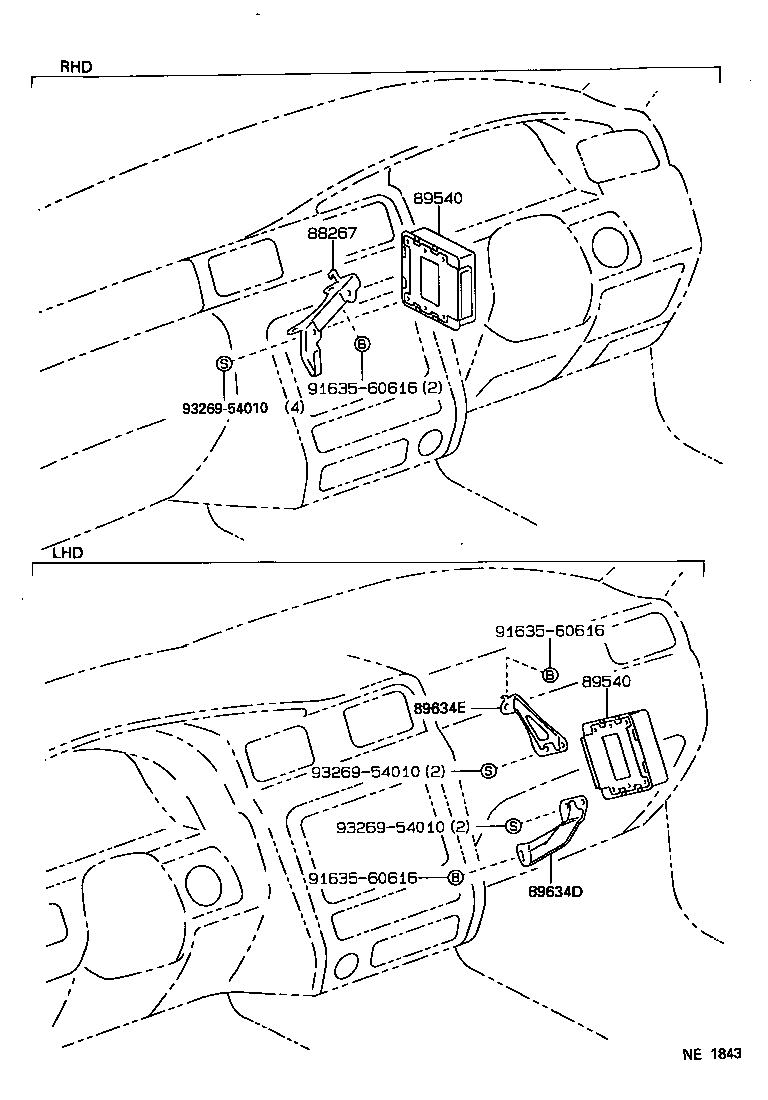

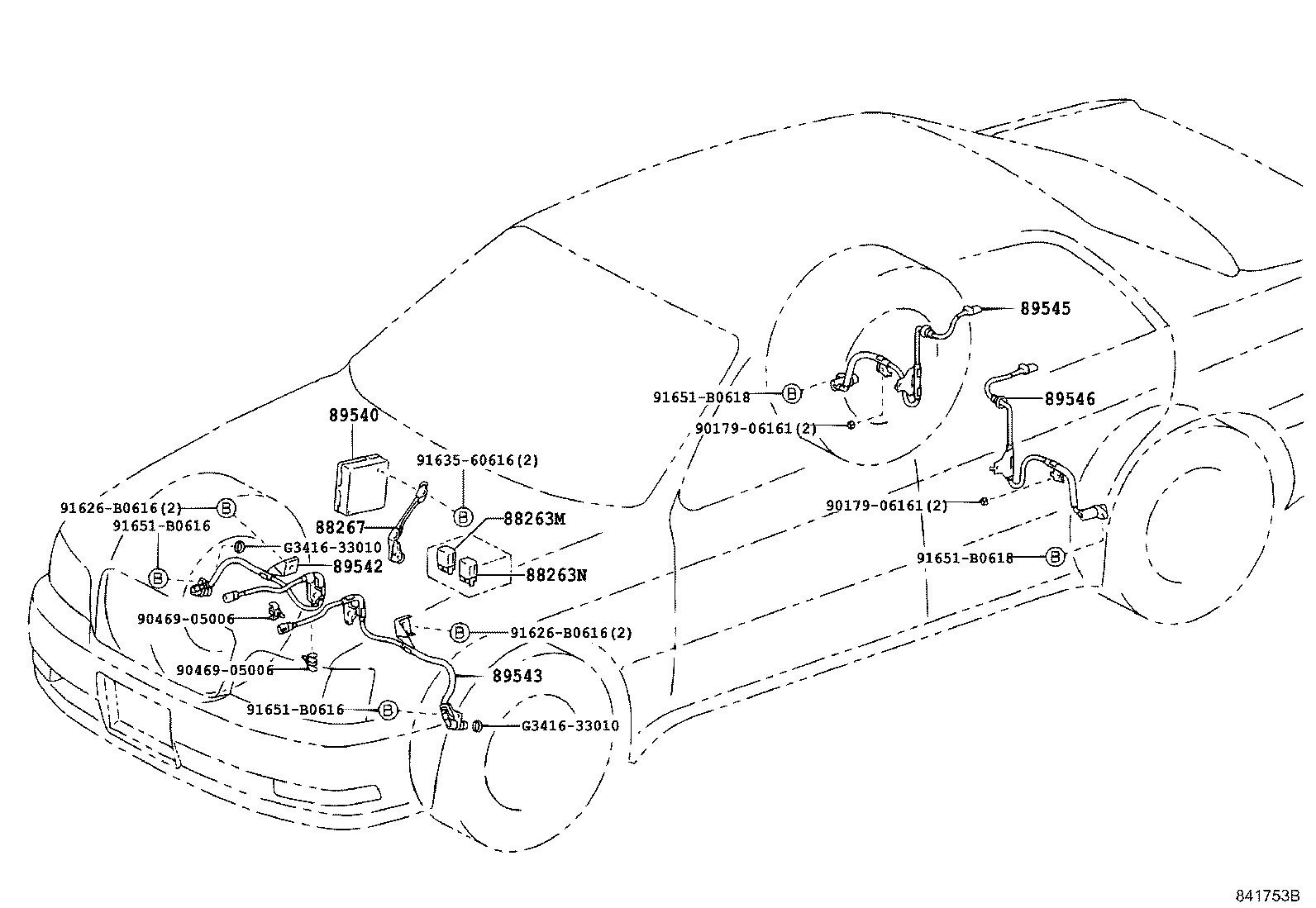

Figure 84H302 84H302 1995-12 → 1997-07 Figure NE1843 NE1843 1995-12 → 1997-07 Figure 841753B 841753B 1997-07 → —

Part groups

PNCDescription
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
88267 Bracket, Skid Control Computer, NO.1
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89634D Bracket, Skid Control Computer NO.3
89634E Bracket, Skid Control Computer NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
