Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 3 illustrations

Illustrations

Figure 863421B

863421B 1995-12 → —

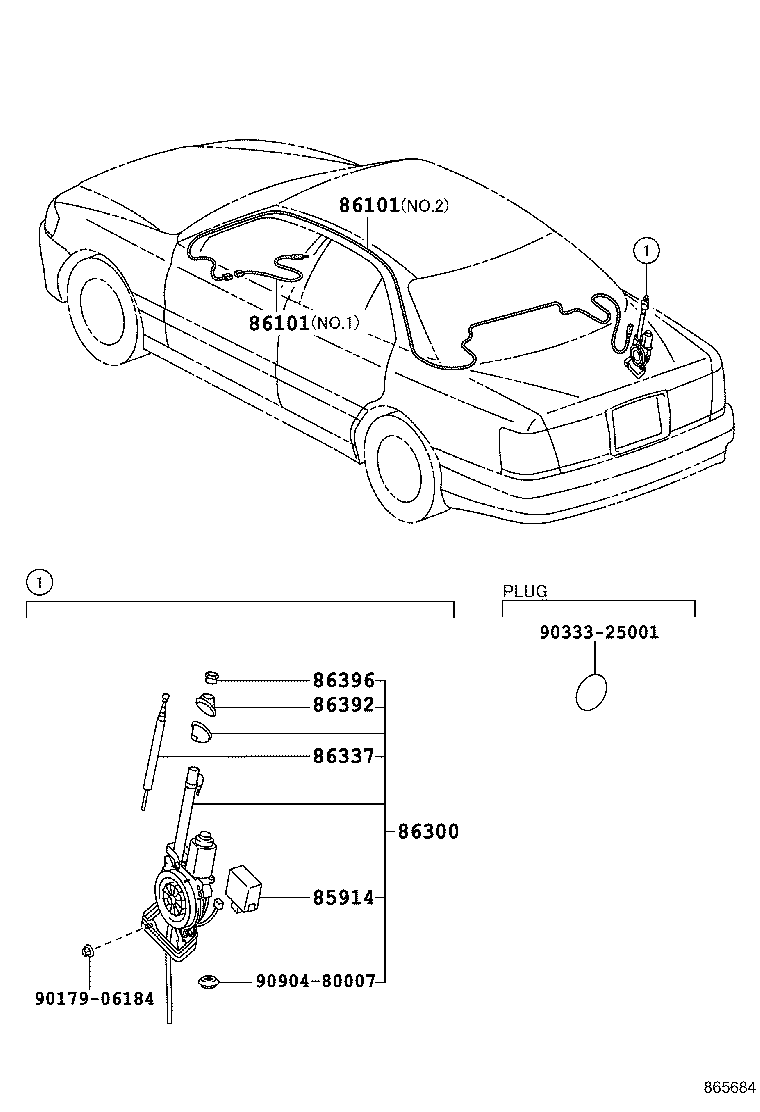

865684 1995-12 → —

860500 1997-07 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86011M	Filter, Noise
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86300	Antenna Assy, W/Holder
86300C	Antenna Assy, Amplifier, NO.2
86337	Rod & Pipe, Sealed W/Cable
86392	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
