Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

23 part groups · 3 illustrations

Illustrations

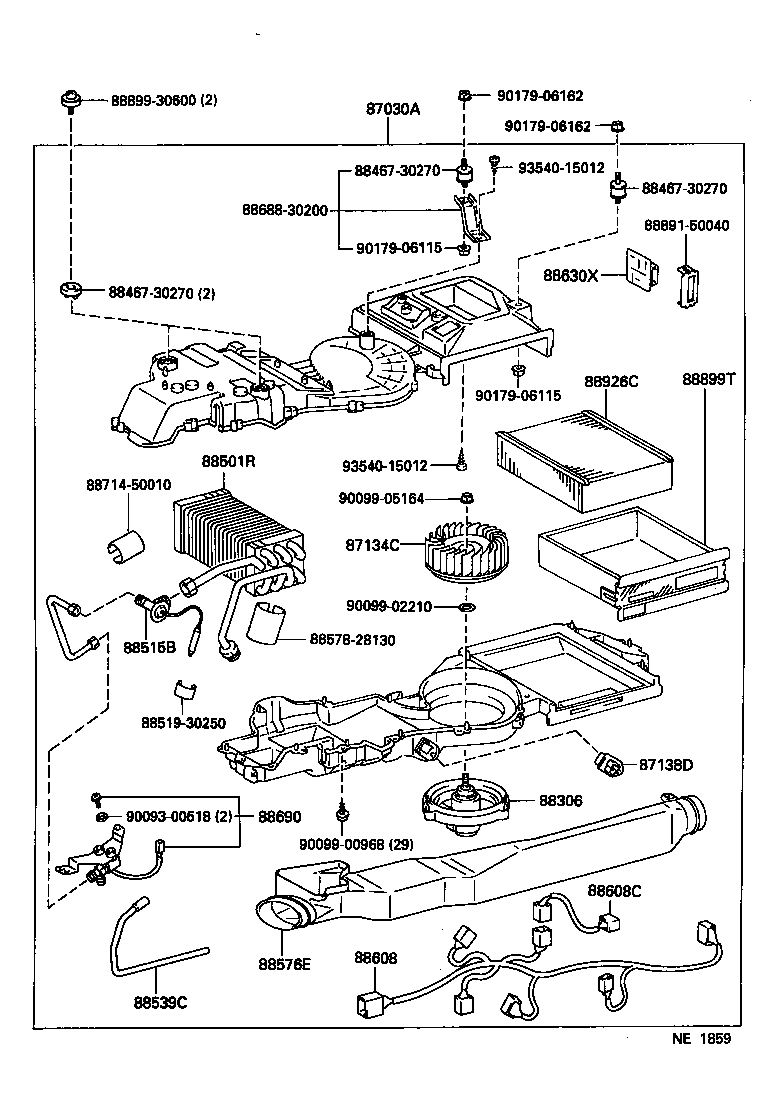

Figure 871144A 871144A 1995-12 → — Figure NE1859 NE1859 1995-12 → — Figure 870233 870233 1995-12 → —

Part groups

PNCDescription
87030A Unit Assy, Cooling, Rear
87134C Fan, Blower(FOR COOLING UNIT)
87138D Resistor, Blower (REAR)
88306 Motor Sub-assy, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88576E Duct, Cooler Air, NO.1
88578B Packing, Cooling Unit, NO.1
88608 Harness Sub-assy, Wiring Air Conditioner
88608C Harness Sub-assy, Wiring Air Indicator, NO.2
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630X Relay Assy
88690 Valve Assy, Cooler Magnet
88710A Tube Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88899T Frame, Rear Cooler
88926C Filter Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
