Toyota Crown

1995-12 → 2001-08 · chassis JZS155,GS151 · catalogue 331290 · General

Discontinued model Data version 2002-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

28 part groups · 6 illustrations

Illustrations

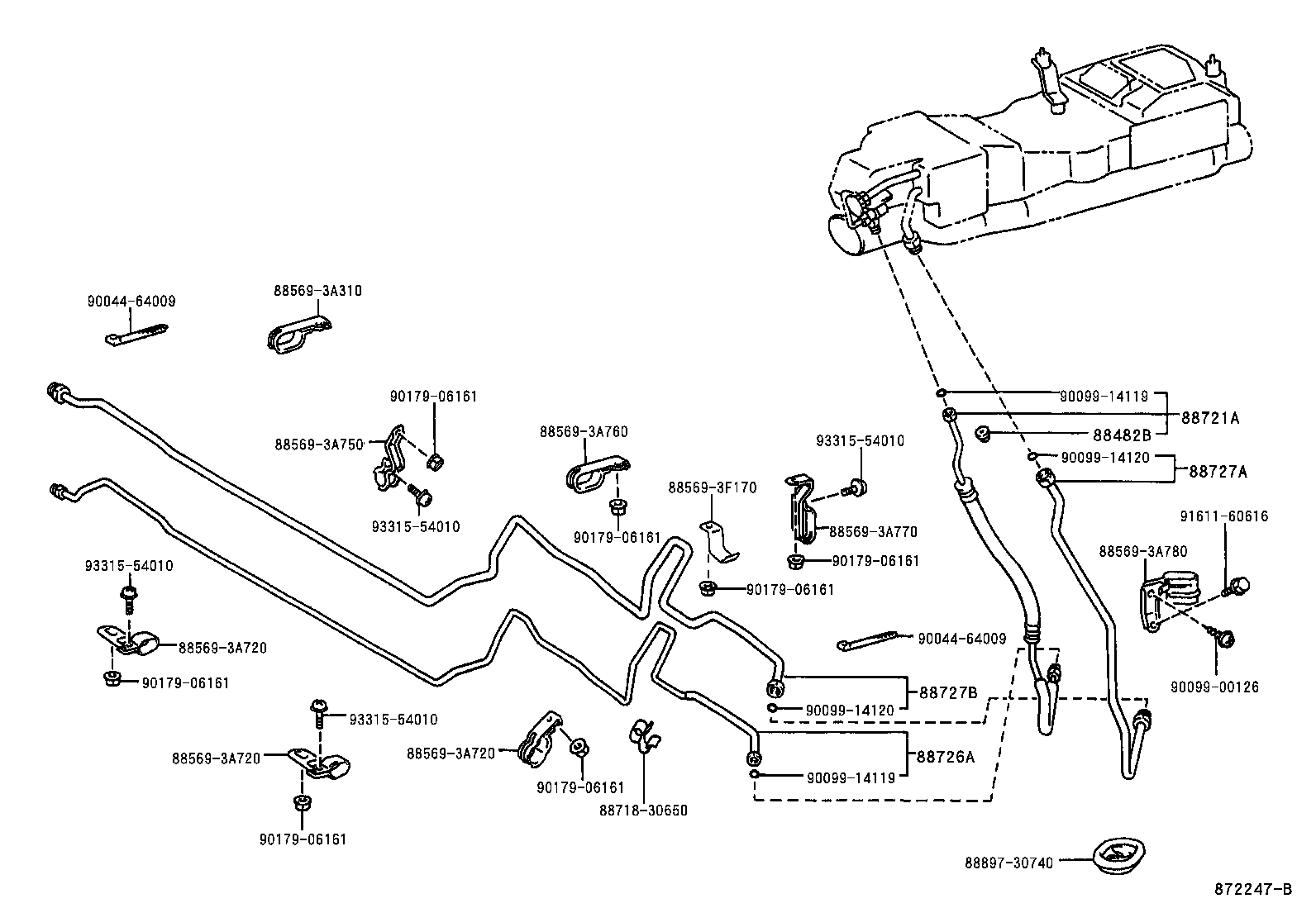

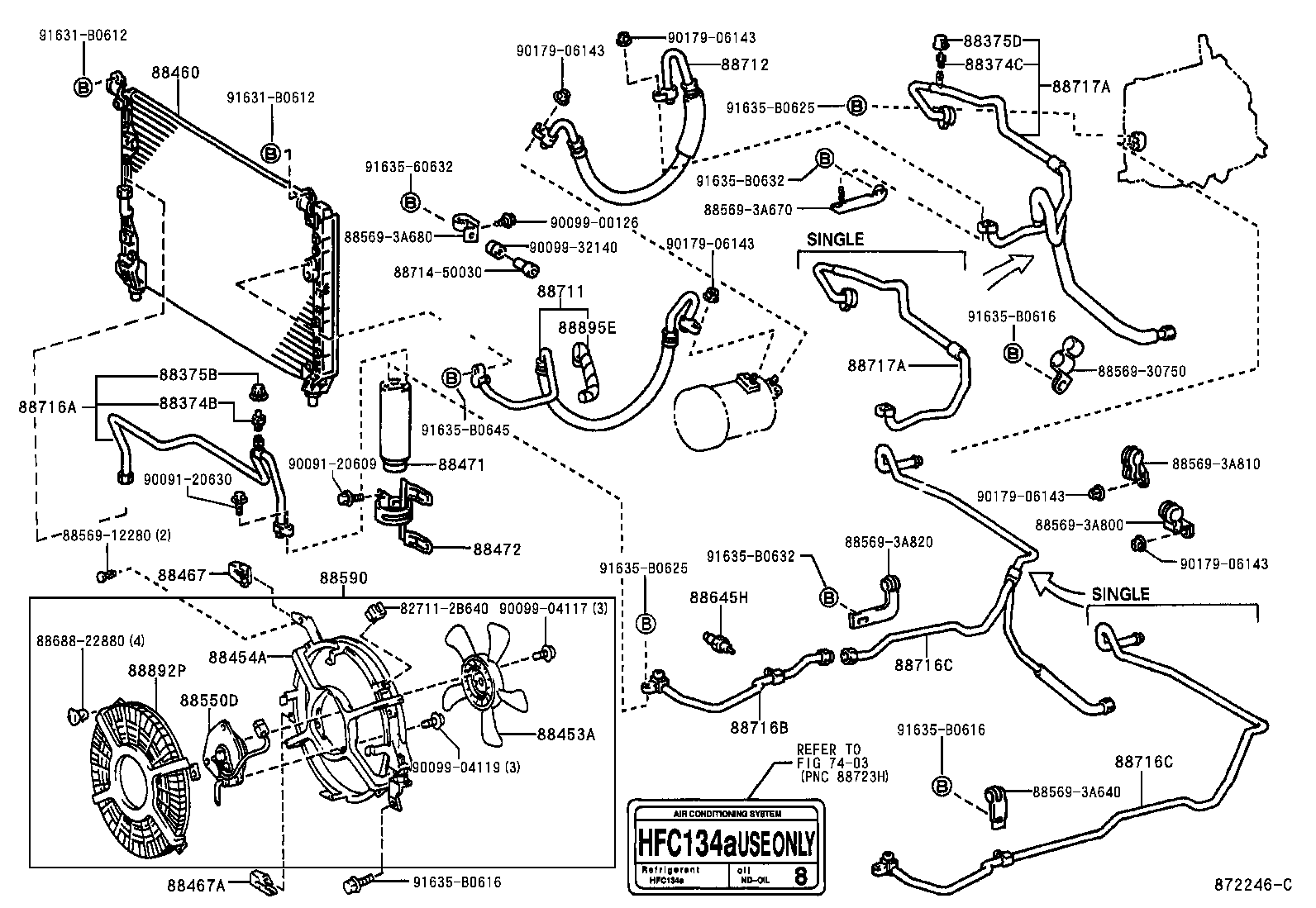

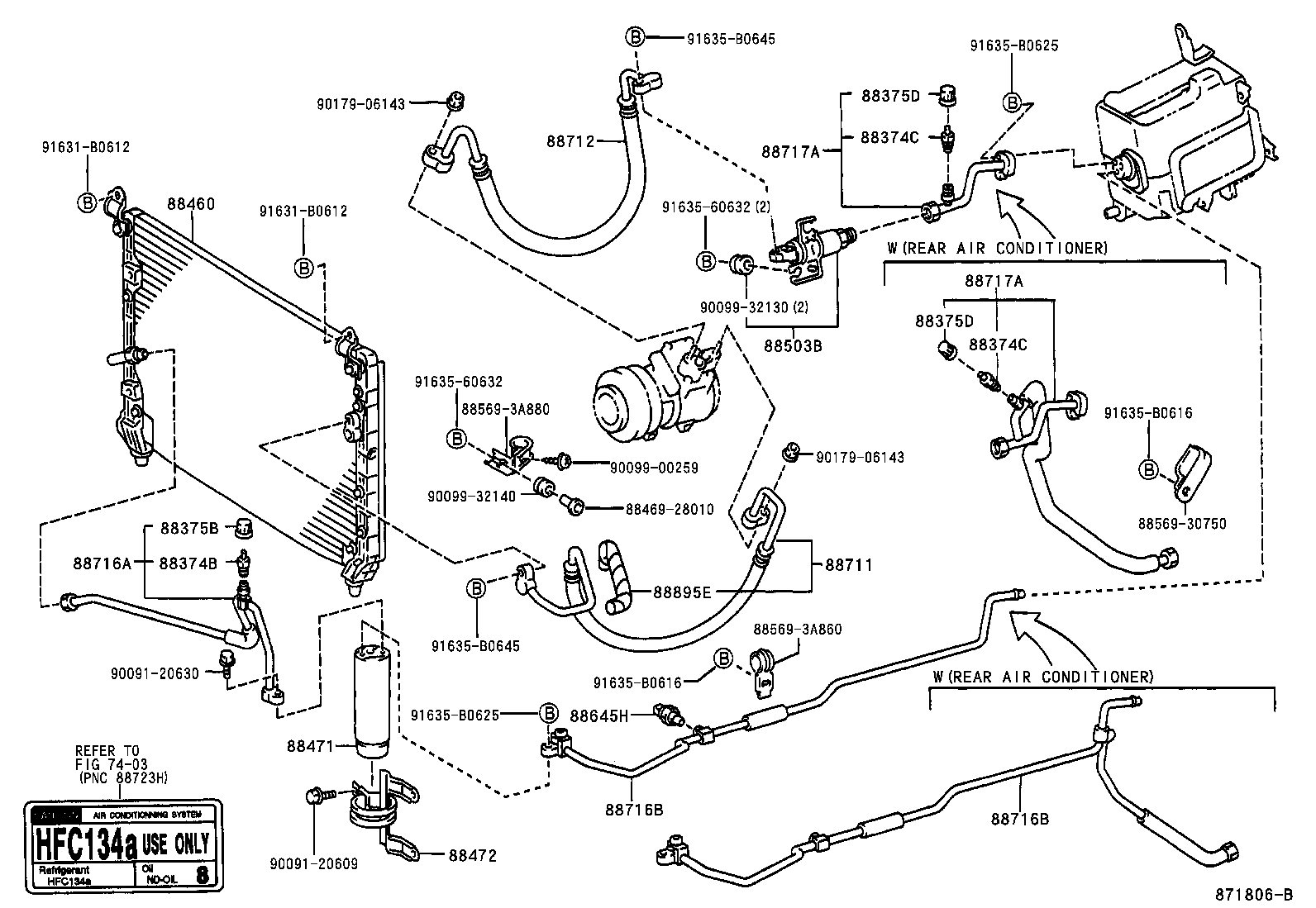

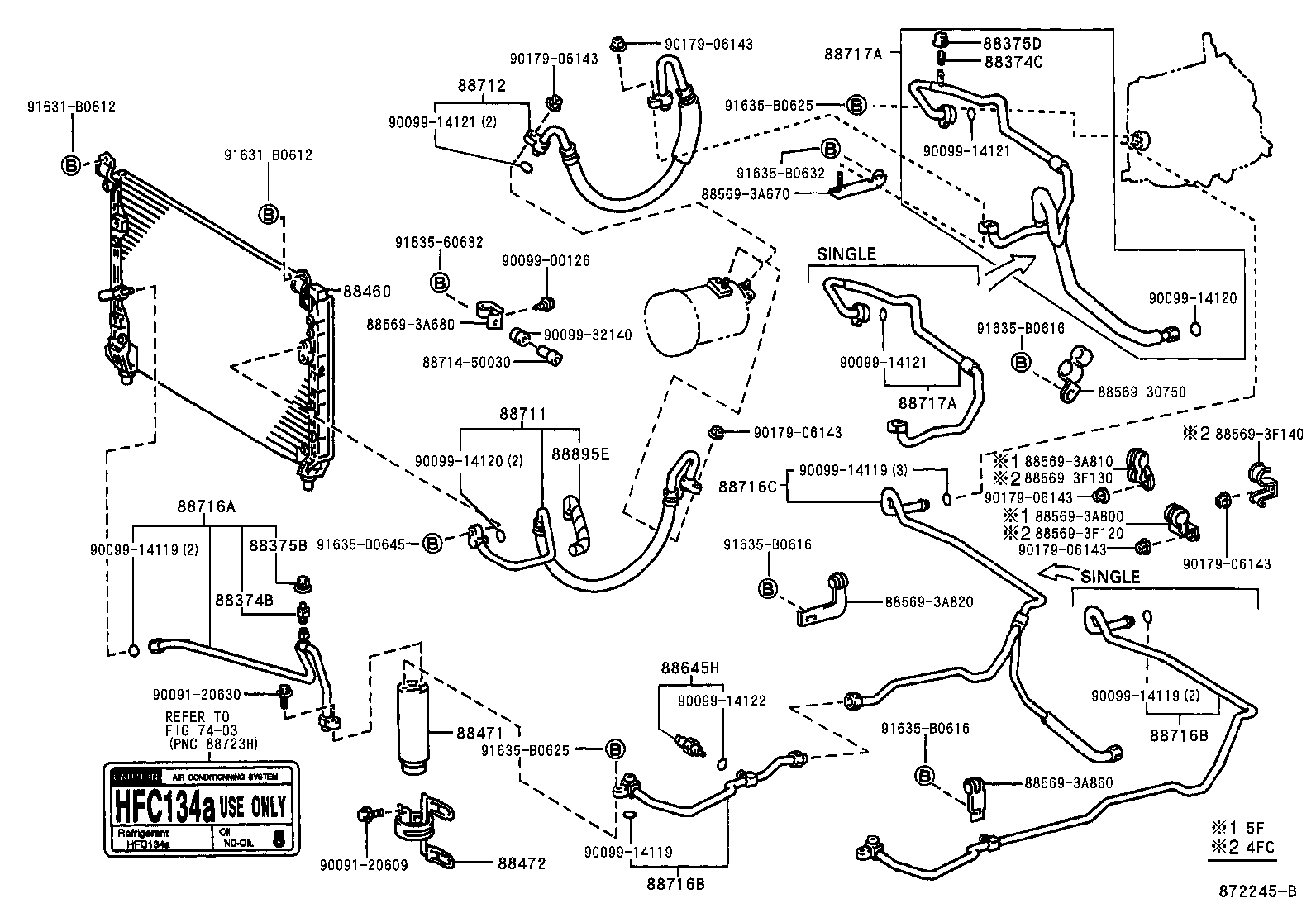

Figure 872244 872244 1995-12 → — Figure 872245B 872245B 1995-12 → — Figure 872246C 872246C 1995-12 → — Figure 871806B 871806B 1997-07 → — Figure 872247B 872247B 1995-12 → — Figure 870233 870233 1995-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88482B Cap, Cooler NO.1
88503B Regulator Sub-assy, Pressure
88550D Motor Assy, Blower
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88721A Hose, Liquid, A
88726A Pipe, Cooler Refrigerant Liquid, A
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88892P Net, Fan Shroud
88895E Insulator, Return Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
